Metcalfe SP-100 Installation And Operating Instructions Manual

(10 & 20 litre heavy duty bench mounted mixers) (30, 40, 60 & 80 litre heavy duty floor standing mixers)
Hide thumbs Also See for SP-100:
Table of Contents

Advertisement

Quick Links

Metcalfe
SP-100, SP-200, SP-30Hi, SP-40Hi, SP-60Hi & SP-80Hi
(10 & 20 Litre Heavy Duty Bench Mounted Mixers)
(30, 40, 60 & 80 Litre Heavy Duty Floor Standing Mixers)
Installation, Operating Instructions

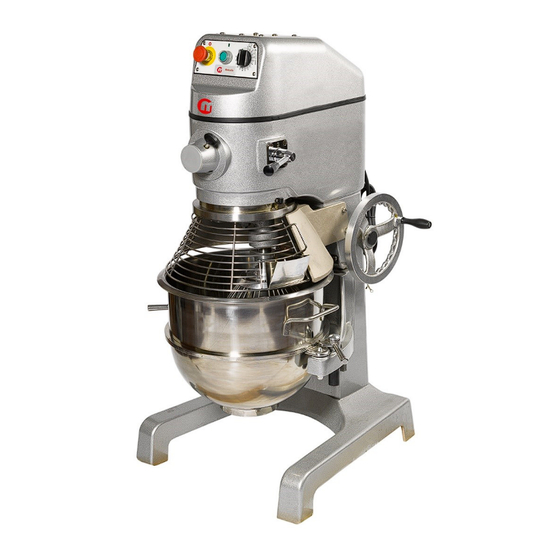

Model Shown SP-30Hi
0
SP100 & SP200 – V1
01/16 MJ - MCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Metcalfe SP-100

Summary of Contents for Metcalfe SP-100

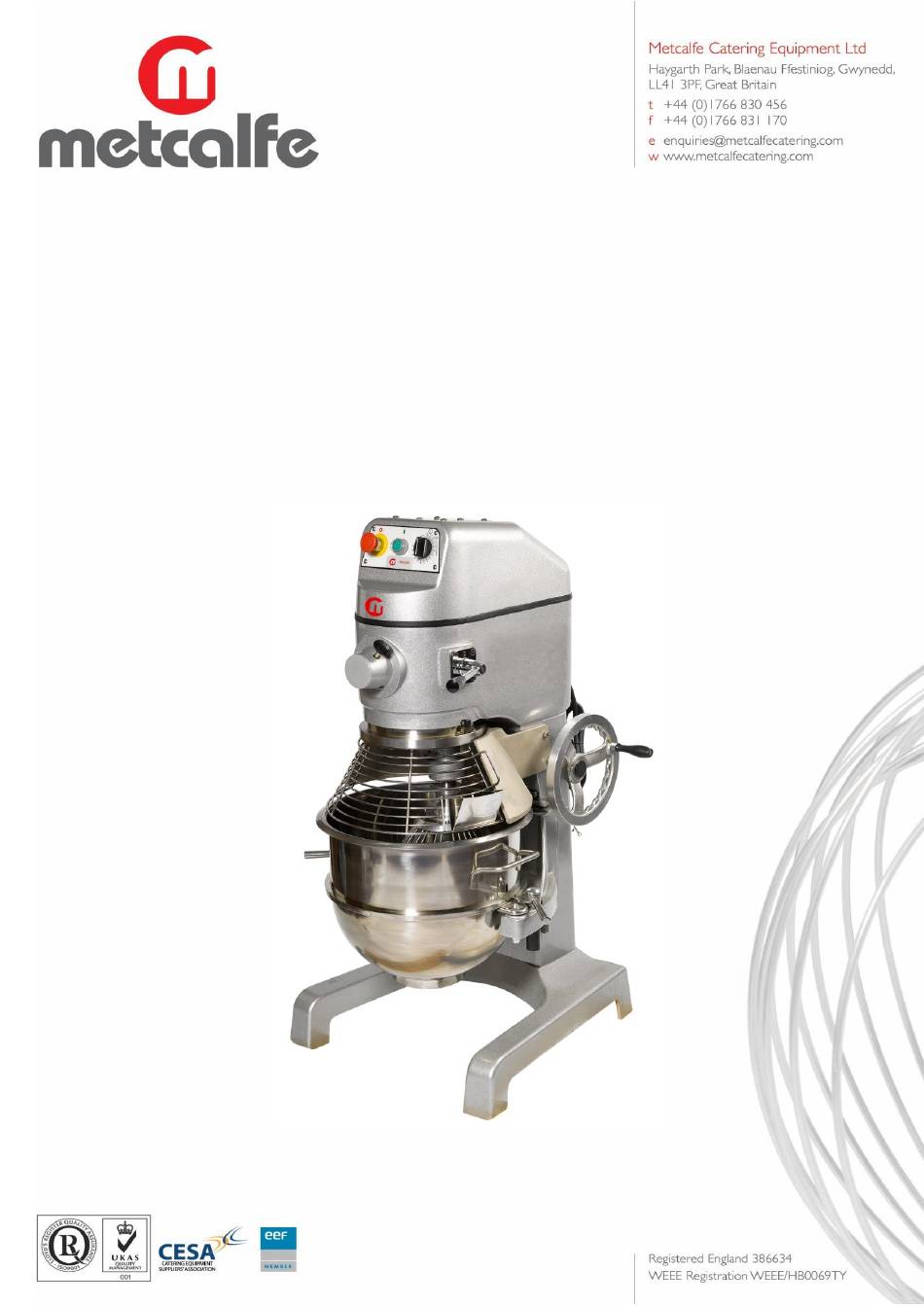

  • Page 1 Metcalfe SP-100, SP-200, SP-30Hi, SP-40Hi, SP-60Hi & SP-80Hi (10 & 20 Litre Heavy Duty Bench Mounted Mixers) (30, 40, 60 & 80 Litre Heavy Duty Floor Standing Mixers) Installation, Operating Instructions Model Shown SP-30Hi SP100 & SP200 – V1 01/16 MJ - MCE...
