- Page 1 Metcalfe MP20 20 Litre Heavy Duty Bench Mounted Mixer Installation & Operating Instructions 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
-
Page 2: Table Of Contents
Index Your Mixer ....................Technical Data ……………………..…………………............. Installation - Unpacking ..................- Location ................... - Electrical Connection ………………………………………………………………… Operation Fitting the Bowl ................Bowl Lift and Guard ……………………………………………………………………… Tool Selection …………………………………………………………………………….. Fitting Attachments ……………………………………………………………………. Speed Selection ………………………………………………………………………….. Operation …………………………………………………………………………………….. Recommended Mixing Capacities ………………………………………………. Attachment Hub …………………………………………………………………………. -
Page 3: Your Mixer
Your Mixer Gear Selector Control Panel Attachment Hub Bowl Lift Handle Bowl Guard Bowl Rubber Feet... -
Page 4: Technical Data

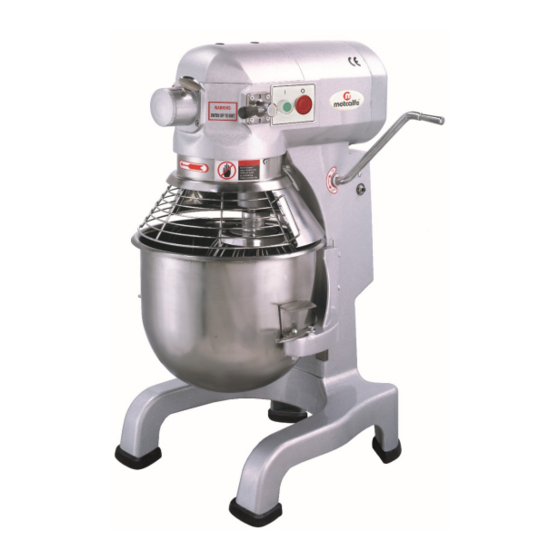

Metcalfe MP20 (20 Litre Heavy Duty Mixer) The Metcalfe MP20 has a total bowl capacity of 20 Litres. The three mixing tools provided ensure that all mixing requirements are met. Features • Gear driven • Three speeds (140, 260 and 473) rpm •... -
Page 5: Installation
Installation Unpacking Unpack the mixer immediately after receipt. Please inspect the mixer to ensure no damage and all parts i.e. Bowl, Beater, Whisk & Dough Hook have been provided. If the machine is found to be damaged, keep all the packaging material and contact us immediately or contact your source of the equipment. Never attempt to operate the machine with damaged parts. -
Page 6: Electrical Connection
Electrical Connection • Before connecting the mixer to an electrical supply, please read the specifications on the rating plate to ensure that they comply with those of the electrical supply. • Electrical connection should be made by a qualified service technician who will observe all applicable safety codes. -
Page 7: Operation
Operation Fitting the Bowl NOTE: Install the bowl BEFORE attaching the agitator. 1. Lower the bowl lift handle anti-clockwise and down to its resting position. 2. Lift the bowl by the handles and slowly position the locking pin located at the rear of the bowl into the hole in the middle rear of the cradle. -
Page 8: Fitting Attachments
Fitting Attachments NOTE: Install the bowl BEFORE attaching the mixing tool. NOTE: It is easier to install the attachment prior to adding ingredients into the bowl. Open the bowl guard and lower the bowl. Slide the attachment slowly upwards onto the planetary shaft, fitting the shaft pin through the slot in the attachment. -
Page 9: Recommended Mixing Capacities
Recommended Mixing Capacities PRODUCT MP20 Bowl size 20 litre Egg Whites 1 ltr Mashed Potatoes 6.8 kg Mayonnaise (Qts. Oil) 9.5 ltr Waffle/Pancake Batter 7.6 ltr Whipped Cream 3.8 ltr Fondant Icing 5.4 kg Cup / Layer Cake 9.5 kg... -
Page 10: Attachment Hub
Attachment Hub Never put your hand into the feed chute when using any mixer attachment. The mixer must be OFF before installing attachments! Do NOT use attachments while mixing! Loosen and remove the attachment hub thumbscrew Thumbscrew Remove the cover from the attachment hub Lubricate the attachment shaft with a food quality grease or mineral oil Insert the attachment shaft into the hub making sure to line... -
Page 11: Cleaning
Cleaning Instructions ALWAYS disconnect from the power source when cleaning or servicing this machine. ALWAYS remove the attachment/s after each batch. If not, the attachment/s can become stuck on the shaft and difficult to remove. NEVER attempt to clean this machine while it is in motion, serious injury could result. NEVER use a scrubber pad, steel wool, or abrasive material to clean the mixer. -
Page 12: Troubleshooting
Troubleshooting Problem Possible Causes Action Required Bowl guard not in closed Rotate guard to the right until fully closed. position Bowl not raised Raise bowl to highest position. Check all power connections. Power not connected Plug into a live socket (do not use extension correctly cord!). - Page 13 Problem Possible Causes Action Required Technician to remove hub and clean interior. Residue leaking from Contaminated hub due to To avoid problem, always wipe hub and dry after food build-up each use Defective or dented bowl Remove dents or replace bowl Attachments touching bottom or sides of bowl...
-
Page 14: Spare Parts & Service Contact Details
Spare Parts and Service For more information on Metcalfe spare parts, accessories and service support, including breakdown drawings and parts lists please contact us on the details below. Please always quote the Serial Number of the machine. This can be found on the serial number plate which is located on the rear of the machine. -
Page 15: Warranty
2 year parts only) and full after sales service. All Metcalfe MP mixers are covered by a 3-year warranty (1st year parts and labour, 2nd & 3rd year parts only) and full after sales service. There is a limited 6-month warranty on the following: •... - Page 16 Some other products in the Metcalfe portfolio: NS Slicer Range Peeler Range Ceado Roband 5/2021 Metcalfe Catering Equipment Ltd Haygarth Park Blaenau Ffestiniog Gwynedd, LL41 3PF 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
