Summary of Contents for Metcalfe MP9

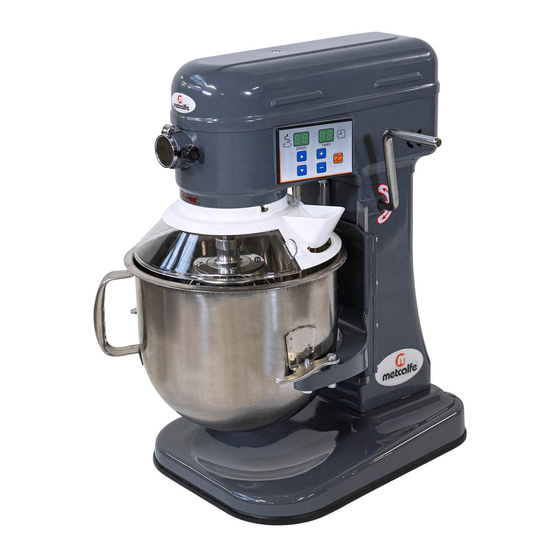

- Page 1 Metcalfe MP9 9 Litre Countertop Mixer Installation & Operating Instructions 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
-
Page 3: Table Of Contents
Index Your Mixer …………………………………………………………………………………………….. Technical Data ……………………..…………………............. Installation - Unpacking ..................- Location ................... - Electrical Connection ………………………………………………………………… Operation Fitting the Bowl ................Bowl Lift and Guard ……………………………………………………………………… Tool Selection …………………………………………………………………………….. Fitting Attachments ……………………………………………………………………. Operation …………………………………………………………………………………….. Recommended Mixing Capacities ………………………………………………. Cleaning ...................... -
Page 4: Your Mixer
Your Mixer Control panel... -
Page 5: Technical Data
Metcalfe MP9 (9 Litre Heavy Duty Mixer) The Metcalfe MP9 planetary mixer has a powerful, variable speed motor. The MP comes complete with a 9 litre stainless steel removable bowl, beater, whisk and dough hook. It is also fully interlocked for safety whilst in use. -
Page 6: Installation
Installation Unpacking Unpack the mixer immediately after receipt. Please inspect the mixer to ensure no damage and all parts i.e. Bowl, Beater, Whisk & Dough Hook have been provided. If the machine is found to be damaged, keep all the packaging material and contact us immediately or contact your source of the equipment. Never attempt to operate the machine with damaged parts. -
Page 7: Electrical Connection
Electrical Connection • Before connecting the mixer to an electrical supply, please read the specifications on the rating plate to ensure that they comply with those of the electrical supply. • The machine works off 220/240V 50Hz 1 phase supply and comes fitted with a 3-pin 13amp fused plug. -
Page 8: Tool Selection
Tool Selection The beater, whisk and dough hook are meant for the work implied by their names. Do not use the beater for dough making or the whisk for anything other than whisking, aerating or mixing light mixtures. These are the typical uses for each of the tools supplied: Whisk Light mixes such as whipped cream, mayonnaise, egg whites, pancakes and soufflés... -
Page 9: Operation
New mixers, bowls and agitators (beaters, whisks and dough hooks) should be thoroughly washed with hot water and mild soap solution and thoroughly rinsed with clean water before being used for the first time. The MP9 is furnished with a digital timer and electronic 10 speed control. Timer selection switch... -
Page 10: Recommended Mixing Capacities
Recommended Mixing Capacities PRODUCT TOOL Egg Whites Whip 0.6 ltr Mashed Potatoes Beater 1.5 kg Mayonnaise (Qts. Oil) Beater 3 ltr Meringue (Qts. Water) Whip 1 ltr Waffle/Pan Cake Batter Beater 2 ltr Whipped Cream Whip 3 ltr Sheet Cake Batter Beater 2 kg Cup / Layer Cake... -
Page 11: Cleaning
Cleaning Instructions ALWAYS disconnect from the power source when cleaning or servicing this machine. ALWAYS remove the attachment/s after each batch. If not, the attachment/s can become stuck on the shaft and difficult to remove. NEVER attempt to clean this machine while it is in motion, serious injury could result. NEVER use a scrubber pad, steel wool, or abrasive material to clean the mixer. -
Page 12: Troubleshooting
Troubleshooting Problem Possible Causes Action Required Bowl guard not in closed Rotate guard to the right until fully closed. position Bowl not raised Raise bowl to highest position. Check all power connections. Power not connected Plug into a live socket (do not use extension correctly cord!). - Page 13 Problem Possible Causes Action Required Batch size too large for mixer Reduce batch size (see Capacity Chart) Items too firm Adjust recipe Speed too high Reduce speed Broken whisk wires Hand utensil dropped into Stop mixer before working on mixture bowl while mixing Ingredients too cold or too Wait for ingredient to reach room temperature...
-
Page 14: Spare Parts & Service Contact Details
Spare Parts and Service For more information on Metcalfe spare parts, accessories and service support, including breakdown drawings and parts lists please contact us on the details below. Please always quote the Serial Number of the machine. This can be found on the serial number plate which is located on the rear of the machine. -
Page 15: Warranty
2 year parts only) and full after sales service. All Metcalfe MP mixers are covered by a 3-year warranty (1st year parts and labour, 2nd & 3rd year parts only) and full after sales service. There is a limited 6-month warranty on the following: •... - Page 16 Some other products in the Metcalfe portfolio: NS Slicer Range Peeler Range Ceado Roband 5/2021 Metcalfe Catering Equipment Ltd Haygarth Park Blaenau Ffestiniog Gwynedd, LL41 3PF 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
