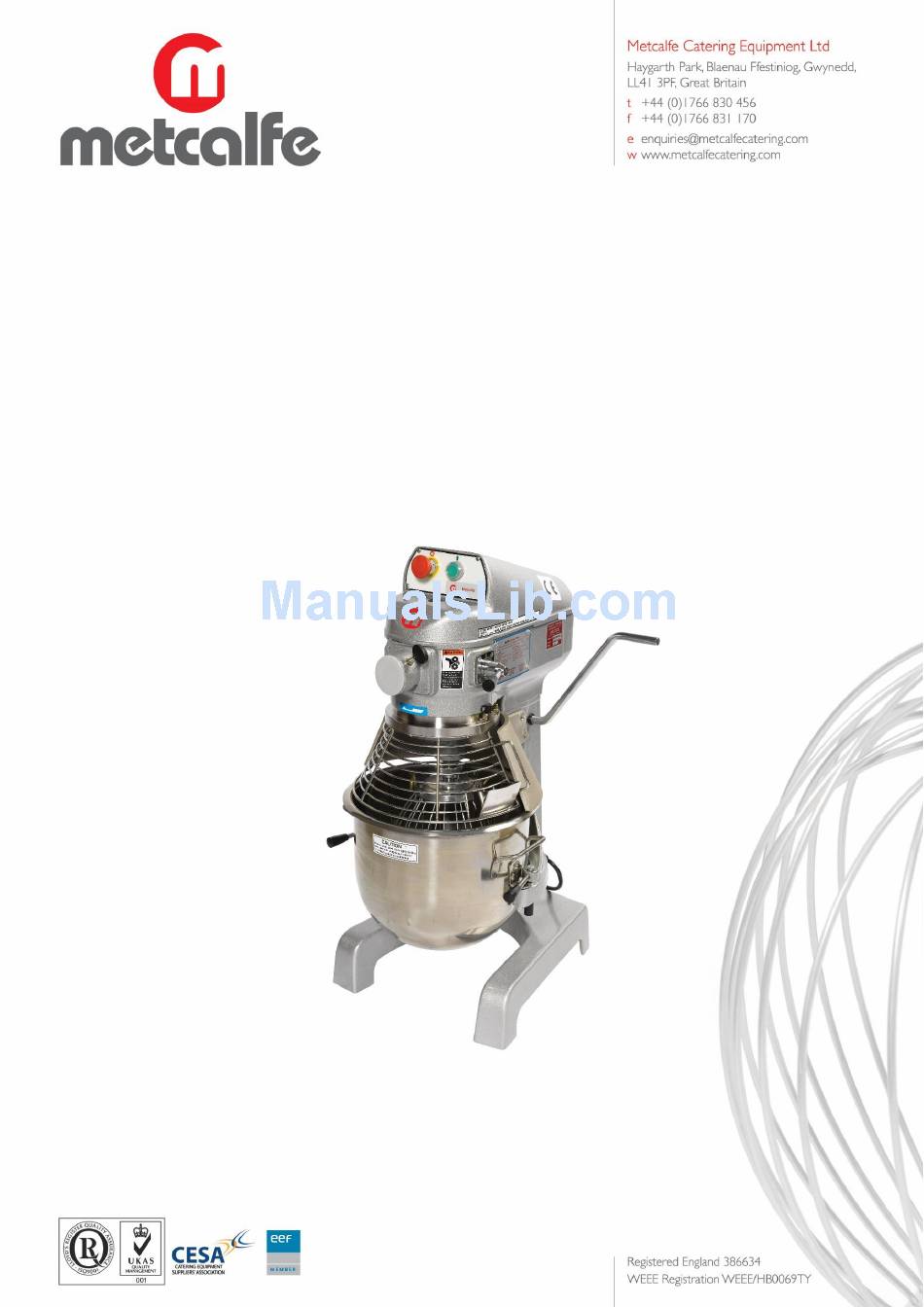

- Page 1 Metcalfe SP-100 & SP-200 (9 Litre Heavy Duty Mixer & 20 Litre Heavy Duty Mixer) Installation, Operating Instructions & Wiring Diagram SP100 & SP200 – V1 01/16 MJ - MCE...
-
Page 2: Table Of Contents
Index Your Mixer......................... 2 SP-100 Technical Data Sheet..................3 SP-200 Technical Data Sheet..................4 Optional Extras......................5 Installation........................ 6 Fitting the Bowl....................6 Attachment Selection..................7 Fitting Attachments................... 7 Speed Selection......................7 How to use the attachment hub..................8 Mixing Ingredients...................... 8 Capacity Chart...................... -
Page 3: Your Mixer
Your Mixer Emergency Stop Button On Switch Attachment Hub Bowl Lift Handle Solid Bowl Guard Gear Selector Guard Bowl Cradle Ingredients Chute Bowl Latch Rubber Feet SP100 & SP200 – V1 01/16 MJ - MCE... -
Page 4: Sp-100 Technical Data Sheet
Metcalfe SP-100 (9 Litre Heavy Duty Mixer) The Metcalfe SP-100 10 has a total bowl capacity of 10 quarts (9 litres). The 3 mixing tools provided ensure that all mixing requirements are met. Features • Gear driven Three speeds (106, 196 and 358) rpm •... -
Page 5: Sp-200 Technical Data Sheet
Metcalfe SP-200 (20 Litre Heavy Duty Mixer) The Metcalfe SP-200 20 has a total bowl capacity of Quarts (20 Litres). The three mixing tools provided ensure that all mixing requirements are met. Features • Gear driven Three speeds (106, 196 and 358) rpm •... -
Page 6: Optional Extras
Weight 10Kg Pastry Knife (SP200 Only) Designed to work with the Metcalfe SP200 only. The pastry knife cuts through the thickest of dough to easily combine ingredients, making it the ideal tool for mixing pastry and pie dough. Half-Size Conversion Kit (SP200 Only) The Metcalfe half-size conversation kit will convert your SP200 21 quart mixer to a 10 quart. -
Page 7: Installation
Installation Unpacking Unpack the mixer immediately after receipt. Please inspect the mixer to ensure no damage and all parts i.e. Bowl, Beater, Whisk & Dough Hook have been provided. If the machine is found to be damaged, keep all the packaging material and contact us immediately or contact your source of the equipment. You should receive with your mixer: - 1 x Stainless Steel Bowl - 1 x Beater, Whisk &... -
Page 8: Attachment Selection
Attachment Selection The beater, whisk and dough hook are meant for the work implied by their names. Do not use the beater for dough making or the whisk for anything other than whisking, aerating or mixing light mixtures. The below table shows the typical uses for each of the tools supplied. Beater Whisk Dough Hook... -
Page 9: How To Use The Attachment Hub
How to Use the Attachment Hub Never put your hand into the feed chute when using any mixer attachment. The mixer must be OFF before installing attachments! Do NOT use attachments while mixing! Thumbscrew 1. Loosen and remove the attachment hub thumbscrew (see fig A). 2. -
Page 10: Capacity Chart
1. Recommended weight for a finished mix unless otherwise stated 2. Water content e.g. 25% Flour / 12.5% Water = 50% Moisture 3. For pizza dough with lower moisture content, consult Metcalfe Catering Equipment, (see contact details on page 15). -
Page 11: Cleaning Instructions
Noise Test Repot The average A-weighted sound pressure level is listed on the below table. Model SP-100 SP-200 Noise Noise Level 67.3 dB 65.5 dB SP100 & SP200 – V1... -
Page 12: Troubleshooting
Troubleshooting Problem Possible Causes Action Required Bowl guard not in closed Rotate guard to the right until fully closed. position. Bowl not raised. Raise bowl to highest position. Check all power connections. Plug into a live Power not connected socket. correctly. -
Page 13: Breakdown Drawing & Parts List
Alternatively you can scan the below QR codes using a QR Scanner to download them directly to your phone or tablet. Metcalfe SP-100 - Metcalfe SP-200 To download a QR Scanner to your mobile / table click on either of the below to obtain the QR Reader application. -
Page 14: Spares & Service Contact Details
Serial No sections for future reference when enquiring for spare parts and technical help. Please see above for location of serial no on the Metcalfe data plate, the model no for your unit will be the first section of the serial no as shown on the above plate. -
Page 15: Wiring Diagram (Single Phase)
SP100 & SP200 - Wiring Diagram (Single Phase) Fuse (Ground) 24V 0V 240V 220V 0V (Motor) 1 Ø (Transformer) 1/3 HP 1/3 HP (Power Supply) (Ground) Microswitch (Safety Guard) Microswitch (Bowl Lift) (On Switch) (Off Switch) (Overload Relay) (Contactor) SP100 & SP200 – V1 01/16 MJ - MCE... -
Page 16: Wiring Diagram (Three Phase)
SP100 & SP200 - Wiring Diagram (Three Phase) Fuse (Ground) 24V 0V 380V 220V 0V (Motor) 3 Ø (Transformer) 1/3 HP 1/3 HP (Power Supply) (Ground) Microswitch (Safety Guard) Microswitch (Bowl Lift) (Timer) (On Switch) (Off Switch) (Overload Relay) (Contactor) SP100 &... -
Page 17: Warranty Terms
Metcalfe Warranty All Metcalfe products are guaranteed against defects in material and workmanship for a period of one year from date of Invoice, except where specially noted. The Company's obligation under this warranty is limited to repairing or replacing, without charge, any part or parts found to be defective under normal use, in accordance to the specified operations manual and capacity ratings. -
Page 18: Notes
Notes (Record any preferred times settings etc. here to act as a quick reference for other users) _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ SP100 &... - Page 19 Notes (Record any preferred times settings etc. here to act as a quick reference for other users) _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ SP100 &...
-
Page 20: Electrical Pat Test Certificate
Electrical PAT Certificate Test Details Result Test Details Result Item: Item: Class: Class 1 / Class 2 Class: Class 1 / Class 2 Date: Date: Appliance ID: Appliance ID: User ID: M.C.E User ID: M.C.E Visual: Visual: Earth Current: amps Earth Current: amps Ω...
