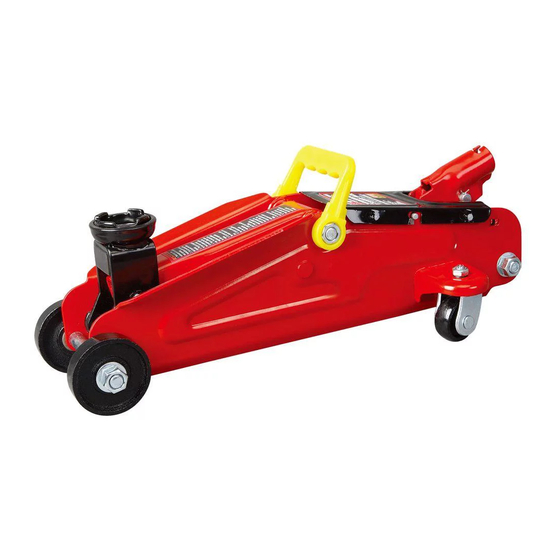

BIG RED JACKS T82002 Owner's Manual

2 ton hydraulic trolley jack
Hide thumbs
Table of Contents

Advertisement

Quick Links

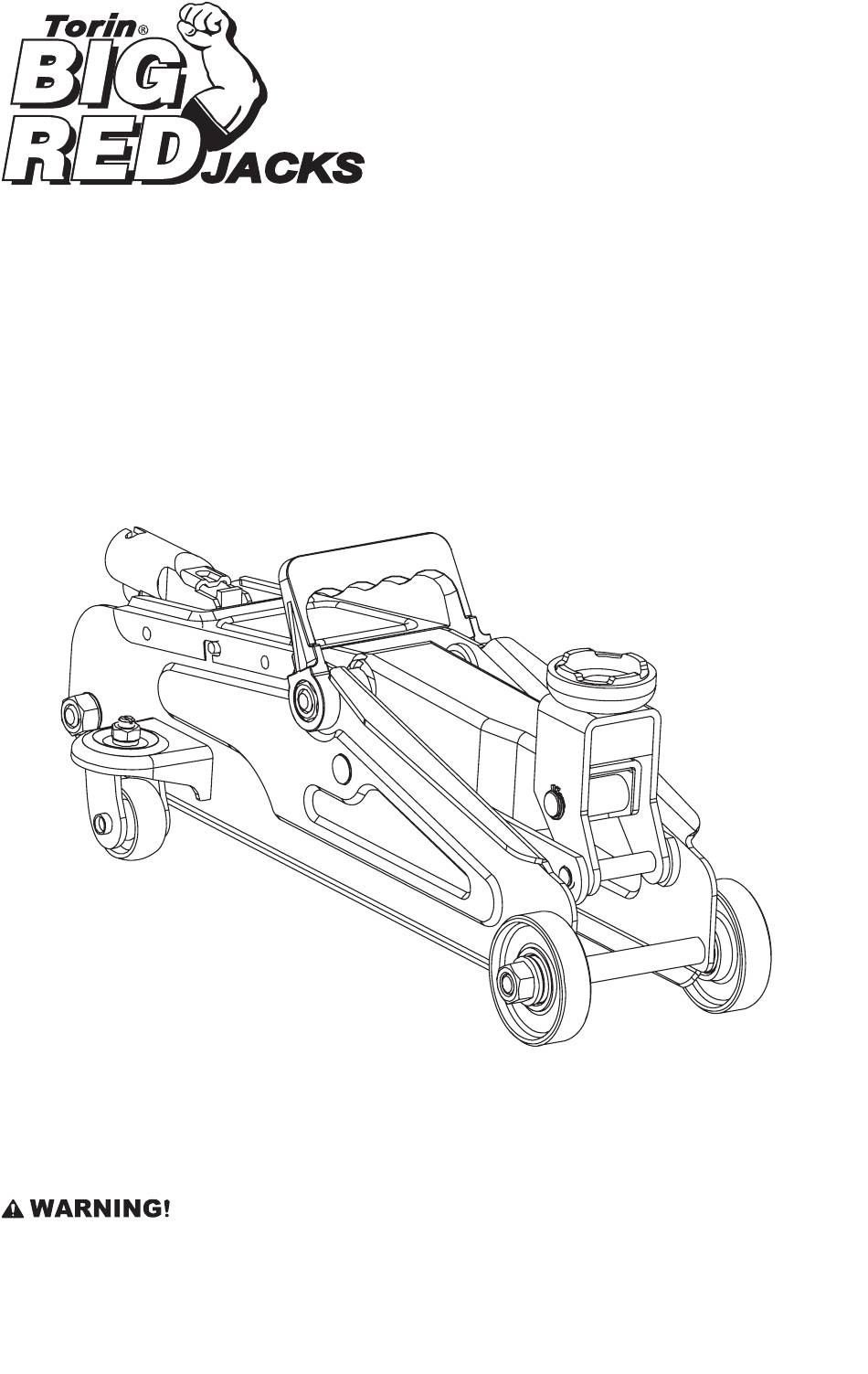

OWNER'S MANUAL
2 TON HYDRAULIC TROLLEY JACK
Item: T82002
Questions, problems, missing parts? Before returning to your retailer, call our customer service department at
1-888-44-TORIN (1-888-448-6746), 8 a.m.- 5 p.m., PST, Monday-Friday.
Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure
to follow the safety rules and other basic safety precautions may result in serious personal injury.
Version 20161129

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T82002 and is the answer not in the manual?

Questions and answers

Related Manuals for BIG RED JACKS T82002

Summary of Contents for BIG RED JACKS T82002

  • Page 1 OWNER’S MANUAL 2 TON HYDRAULIC TROLLEY JACK Item: T82002 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-44-TORIN (1-888-448-6746), 8 a.m.- 5 p.m., PST, Monday-Friday. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

  • Page 2: Owner / User Responsibility

    Compact design allows use in confined spaces. Easily fits under low vehicles. Meets ASME PASE safety standards. TECHNICAL SPECIFICATIONS Item Capacity Lifting Range Lifting Range Lifting Range Lifting Range Min. (Inch) Max. (Inch) Min. (cm) Max. (cm) T82002 2 TON 5-1/4 13-3/8...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this jack until they have read this manual and have developed a thorough understanding of how the jack works. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur.

  • Page 4: Safety Markings

    SAFETY Always follow safety precautions when installing and operating this jack. Keep all decals on the unit clean and visible. Before proceeding ensure that you fully understand and comprehend the full contents of this manual. Failure to operate this equipment as directed may cause injury or death. The distributor is not responsible for any damages or injury caused by improper use or neglect.

  • Page 5: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS Position the Jack Position the jack to only lift on the areas of the vehicle as specified by the vehicle manufacturer. Always Use Jack Stands After lifting the vehicle always support the load with appropriately rated vehicle Jacks stands before working on the vehicle.
  • Page 6 ASSEMBLY 1. Familiarize yourself with the jack. 3. Secure the handle in place inside the handle socket. Without any vehicle on the jack. Cycle Lifting Arm the lift up and down several times to insure the Saddle hydraulic system is operating properly. (Perform to the Air Purge Procedure before first use.) Front Wheel Handle Socket...
  • Page 7 SYSTEM AIR PURGE PROCEDURE IMPORTANT: BEFORE FIRST USE Perform the following Air Purge Procedure to remove any air that may have been introduced into the hydraulic system as a result of product shipment and handling. This step is to be completed without any weight on the jack.

  • Page 8: Before Use

    BEFORE USE 1. Before using this product, read the owner's manual completely and familiarize yourself thoroughly with the product and the hazards associated with its improper use. 2. Perform the air purge procedure. (See System Purge Procedure.) 3. Check and that the pump operates smoothly before putting into service. 4.
  • Page 9 LOWERING THE JACK 1. Raise load high enough to allow clearance for the jack stands to be removed, then carefully remove jack stands. 2. Remove support stands. 3. Grasp the handle firmly with both hands. Securely hold on to the jack handle so your hands do not slip and ensure the release valve does not rapidly lower.

  • Page 10: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS If you use and maintain your equipment properly, it will give you many years of service. Follow the maintenance instructions carefully to keep your equipment in good working condition. Never perform any maintenance on the equipment while it is under a load. Inspection You should inspect the product for damage, wear, broken or missing parts (e.g.: pins) and that all components function before each use.
  • Page 11 5. Replace oil plug. TO ADD JACK OIL 1. Position the jack on level ground and lower the saddle. 2. Remove cover plate. 6. Replace coverplate and perform the Air Purge Procedure. 3. Remove the oil plug. TO REPLACE JACK OIL 1.
  • Page 12 7. Replace oil plug. 3. Remove cover plate. 4. Remove the oil plug. 8. Replace the cover plate and perform the Air Purge Procedure. 5. Turn the jack upside down to drain old oil from the oil fill hole. ADDITIONAL WARNINGS: •...

  • Page 13: Assembly Diagram

    ASSEMBLY DIAGRAM REF# PART# DESCRIPTION REF# PART# DESCRIPTION QLQD2A.1-1 Handle cover GB894.1-13 C-clip Ø13mm T820033.1(asm) Handle Saddle base assembly T820033-2 Cover plate Pin for saddle base Back shaft Shaft for front wheel Pin for frame Pin for lifting arm Connecting bar T820033XE.2(asm) Rear caster assembly Lifting arm assembly Left frame assembly...

  • Page 14: Troubleshooting

    TROUBLESHOOTING JACK JACK JACK POOR WILL NOT CAUSES AND SOLUTIONS WILL WILL WILL JACK LIFT TO LIFTING FULL LIFT HOLD LOWER EXTENSION LOAD LOAD Release valve is not completely closed (Turn handle clockwise). Weight Capacity Exceeded. Air is in the hydraulics. Purge air from system.
  • Page 15 TORIN ONE YEAR LIMITED WARRANTY Torin Inc.® has been producing quality automotive repair and maintenance products since 1968. All products sold are felt to be of the highest quality and are covered by the following warranty: With proof of purchase for a period of one year from the date of that purchase, the manufacturer will repair or replace, at its discretion, without charge, any of its products or parts thereof which fail due to a defect in material or workmanship.
  • Page 16 Contact Torin® Customer Service directly by telephone at: 1-888-44-TORIN (1-888-448-6746) 8:00am – 5:00pm Pacific Time, Monday – Friday Communiquez directement avec le Service à la clientèle Torin® au: 1-888-44-TORIN (1-888-448-6746) De 8 heures à 17 heures, heure du Pacifique, du lundi au vendredi Comuníquese conel Servicio de Atención al Cliente de Torin®...
