  • Page 1 Recommended Age 13+ Provincial / Municipal governments have different regulations pertaining to owning and operating an off-road vehicle, learn the regulations in your area. (888)-405-8725 Coleman Powersports 1775 E. University Dr. Tempe, AZ. 85281 READ THIS MANUAL CAREFULLY! www.colemanpowered.com REV#031517...
  • Page 2 To the Owner Congratulations on your purchase of a Coleman Powersports Off-Road Mini Bike. This Owner’s/Operator’s manual will provide you information regarding safe operation, operational instructions, maintenance and care. Fully under- standing this manual and following all of the instructions herein will provide the knowledge needed to have safe and enjoyable operation.
  • Page 3 This manual is based on the latest product information available at the time of publication. Coleman Powersports has a policy of continually improving its products. Due to improvements, or other changes, there may be some discrepancies.
  • Page 4 WARNING The engine exhaust from this mini bike contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS COLEMAN POWERSPORTS WARRANTY. 2 CHAIN AND SPROCKET......23 IMPORTANT SAFETY LABELS....4 INSPECTION........23 LOCATION..........4 TENSION AND ADJUSTMENT..23 LABELS............5 CLEANING AND LUBRICATION.. 23 SAFETY ............6 CLEANING AND INSPECTING DESCRIPTION AND PART LOCATIONS... 7 CENTRIFUGAL CLUTCH.......

  • Page 6: Coleman Powersports Warranty

    Coleman Powersports offers the following warranty to the initial purchaser of this new Coleman Powersports product. The initial purchaser is defined as the first person to purchase a new Coleman Powersports product from an Authorized Retailer. The limited warranty period for this product is 90 days from the date of pur- chase shown on the original sales receipt.
  • Page 7 Length of Implied Warranties Any implied warranties are limited to the duration set forth in this warranty. Coleman Powersports does not make any claim as to the merchantability or fitness for a particular purpose which would extend longer than the duration of this written warranty.

  • Page 8: Important Safety Labels

    IMPORTANT LABELS LOCATION...

  • Page 9: Labels

    • Check the throttle to ensure it works properly and FOR SERVICE AND REPAIR, PLEASE "snaps back" prior to starting the mini bike. CALL COLEMAN POWERSPORTS • be seated before attempting to start the mini bike. TOLL FREE 888-405-8725 • continually supervise children...

  • Page 10: Safety

    SAFETY This Mini Bike is recommended Never traverse, climb or go for riders 13 and older. down a hill that is too steep. Avoid hills with loose or slip- Always wear a certified DOT or pery terrain. motorcycle type helmet that fits properly, over the ankle Never attempt wheelies, boots, eye protection, gloves,...

  • Page 11: Description And Part Locations

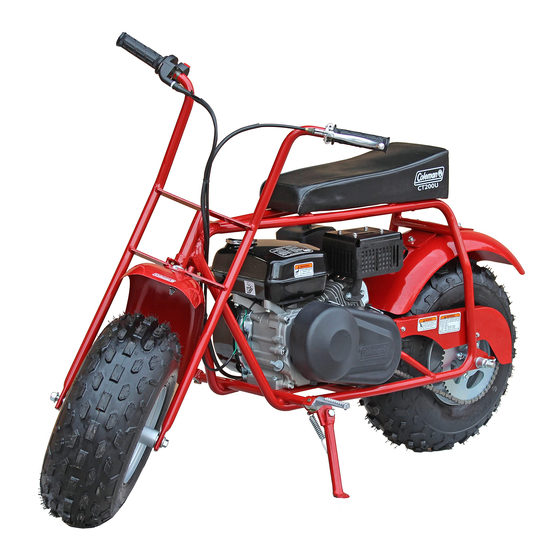

    DESCRIPTIONS AND PART LOCATIONS 1. Rear Fender 2. Seat 3. Front Fender 4. Front Wheel Foot Pegs 6. Kick Stand 7. Starter Recoil 8. Fuel Valve 9. Choke Lever 10. Carburetor 11. Air filter assembly 12. Rear Wheel 13. Fuel Tank and Cap 14.

  • Page 12: Description And Part Functions

    DESCRIPTION AND PART FUNCTIONS Right Throttle Grip : The engine speed is regulated by the position of the right throttle grip. Throttle is increased by turning the throttle grip toward the operator. Engine speed is decreased by turning the throttle grip away from the operator.

  • Page 13: Choke Operation

    DESCRIPTION AND PART FUNCTIONS Choke operation Choke Lever (1): If the engine is cold, the choke can help start the engine by placing the choke lever to the “ON” (left) position. Once engine has warmed up , place choke lever to the “OFF” (right) position.

  • Page 14: Fuel And Oil

    FUEL AND OIL FUEL WARNING Never use leaded gasoline in this product. It could affect the engine’s Fuel and fuel vapor are highly emissions and damage the engine. flammable and toxic. You can Mini Bike requires clean unleaded regular gasoline with a minimum be burned or poisoned while octane rating of 90 or higher.

  • Page 15: Pre Ride Inspection

    PRE-RIDE INSPECTION Inspecting and checking the CHECK FOR WHAT condition of the Mini Bike before each ride is important. Following the CHECK pre-ride check list will help insure the Steering • Smoothness you do not have mechanical • No restriction of problems which could result in injury movement or becoming stranded.

  • Page 16: Riding Mini Bike

    RIDING THE MINI BIKE HELMET, EYE PROTECTION, PROTECTIVE CLOTHING Always wear a DOT or SNELL certified motorcycle helmet (1). A helmet helps protect against serious head injuries in the event of an accident. A helmet is the most important safety gear item you can wear. Consult with a motorcycle dealer for the correct size and type of motorcycle helmet that is right for...

  • Page 17: Starting The Engine

    RIDING THE MINI BIKE STARTING ENGINE To start the engine 1. Place the fuel valve (1) in the “ON” (right) position. 2.. If engine is cold, place the choke lever (2) in the “ON” (left) position. 3. Place the ON/OFF switch (3), located on the handlebars, in the (on)position.

  • Page 18: Starting Off

    RIDING THE MINI BIKE STARTING OFF 1. Start and warm up the engine according to the instructions in this manual. 2. Place the side kick stand in the up position. WARNING 2. Apply the throttle gradually to start Removing hands from the handlebars riding.

  • Page 19: Load Guidelines

    Riding this Mini Bike with modifications or adding accessories After market parts and accessories could be hazardous. may be available from other manufactures. Coleman Powersports Modifications to the Mini Bike, cannot confirm the quality, safety or including adding accessories, could suitability of accessories adversely affect the handling of the available.

  • Page 20: Maintenance

    MAINTENANCE For maintenance, your mini bike may be maintained by an authorized Coleman Powersports service dealer or a repair shop of your choosing. Following the proper maintenance procedures and time table for CAUTION maintenance listed in this manual is Failing to perform recommended...

  • Page 21: Maintenance Chart

    MAINTENANCE CHART Every 3 1st Month Every 6 Mo/ Every Year/ Each Use Months/ /20 hrs 100 Hrs 300 hrs. 50 hrs. Engine oil - check *Engine oil - change Air filter - check *Air filter - clean *Air filter - change *Carburetor Sediment cup...

  • Page 22: Air Filter

    MAINTENANCE Air Filter CAUTION The air cleaner element needs to be cleaned or replaced periodically (see Clean air filter frequently if Mini chart for cleaning/replacement Bike is driven in wet, muddy or intervals). The air filter element will need to be cleaned more often dusty conditions.

  • Page 23: Spark Plug

    MAINTENANCE Spark Plug This Mini Bike comes equipped with a LD- F7TC spark plug. To inspect the spark plug, remove the air filter cover and element to gain access. Remove spark plug cap (1) then remove the spark plug from the engine with the spark plug tool provided.

  • Page 24: Engine Oil

    MAINTENANCE Engine Oil WARNING The proper amount and grade of engine oil will have a great impact New and used oil can be on the life of the engine. Checking the oil daily and changing the oil as hazardous listed in the maintenance schedule Children and pets can be is the most important maintenance procedure for the engine.

  • Page 25: Idle Speed Adjustment

    MAINTENANCE Idle speed adjustment The idle speed should be set at 1700 ± 150 RPMs To adjust the idle speed: 1. locate the idle adjustment screw (1) located on the carburetor. 2. Allow the engine to warm up approximately 10 minutes 3.

  • Page 26: Brakes

    MAINTENANCE Brakes Brake Lever Adjustment 2.0 - 4.0mm (0.08 - 0.16 in) The front left brake lever (1) should have 2.0 - 4.0mm (0.08 - 0.16) of free play. To adjust brake lever free play: 1. Loosen the Jam nut (2) on the brake cable.

  • Page 27: Chain And Sprocket

    MAINTENANCE Chain Chain lubrication Chain and Sprocket Lubricating the chain before each ride will help to ensure maximum life Inspection of the chain and sprockets. Inspect the drive chain for wear, rust, bound links, proper lubrication and Instructions for cleaning proper tension.

  • Page 28: Centrifugal Clutch

    MAINTENANCE Centrifugal Clutch Cleaning and lubrication Shut off engine and allow to cool before performing maintenance To help ensure the maximum life and inspection on the centrifugal out of the Centrifugal clutch. It is clutch. important to clean and lubricate the clutch after every 5 hours of operation.

  • Page 29: Tires

    MAINTENANCE Tires Inspect tires before each ride, this should include the following: 1. Inspect for cracks or leaks 2. Inspect tread depth. If tread depth is below 4mm (.16 in.) replace the tire. Minimum tread 3. Check tire pressure. Incorrect tire 4mm (.16 in.) pressure can affect the handling, rider comfort, steering, tire life and traction.

  • Page 30: Storage

    Storage If the Mini Bike is left unused for an extended period of time proper storage maintenance is required. 1. Wash Mini Bike thoroughly, then wax painted parts with a non abrasive auto wax. Coat vinyl seat and rubber parts with a vinyl/rubber protectant.

  • Page 31: Washing The Mini Bike

    Washing the Mini Bike 1. Wash mud and dirt off Mini Bike with low pressure water from a hose. Do not use high pressure nozzles, this could allow water to enter the engine causing damage. 2. Wash Mini Bike using a mild deter- gent or car soap using a sponge, soft rag or brush.

  • Page 32: Troubleshooting

    TROUBLESHOOTING Trouble Possible cause Solution Engine will • Low fuel • Fill with fresh fuel not start • Stale or contaminated fuel. • Have a service center flush and fill with fresh fuel. • Fuel valve is in the “OFF” • Place fuel valve in the position “ON” position. • Loose spark plug • Tighten spark plug • Spark plug fouled or • Clean or replace plug. defective. • Spark plug gap is incorrect •...

  • Page 33: Specifications

    SPECIFICATIONS Engine Braking Displacement 196cc Rear Brakes (Type) Drum Starting Recoil Cord Spark Plug Typ LD - F7TC Cooling Air cooled Tires Ignition Type T.C.I Front Tire Size AT19x7-8 Cylinder head config. Rear Tire Size AT19x7-8 Number of Cylinder Single Combustion Cycle 4-stroke Bore and Stroke...

  • Page 34: Frame And Engine Number Location

    FRAME AND ENGINE NUMBER LOCATION The Vehicle identification number and the engine number are needed VIN # when calling for parts, service center help or when registering your Mini Bike. Locate the numbers and list the numbers below for reference. The 17 digit Vehicle Identification Number (VIN) is located on the vertical tube on the neck of the mini...

  • Page 35: Emission Control System Warranty

    Chongqing Huansong Industries (Group) Co. Ltd. U.S.A. EPA Emissions Limited Warranty This All Terrain Vehicle emissions limited warranty is in addition to the Coleman Powersports standard limited war- ranty for All Terrain Vehicles. Chongqing Huansong Industries (Group) Co. Ltd. Warrants that this vehicle is: 1.
  • Page 36 All implied warranties including but not limited to any implied warranties of merchantability and fitness for a particular purpose are limited in duration to the warranty period de- scribed herein. Chongqing Huansong disclaims all express warranties not stated in this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply if it is inconsistent with the controlling state law.
