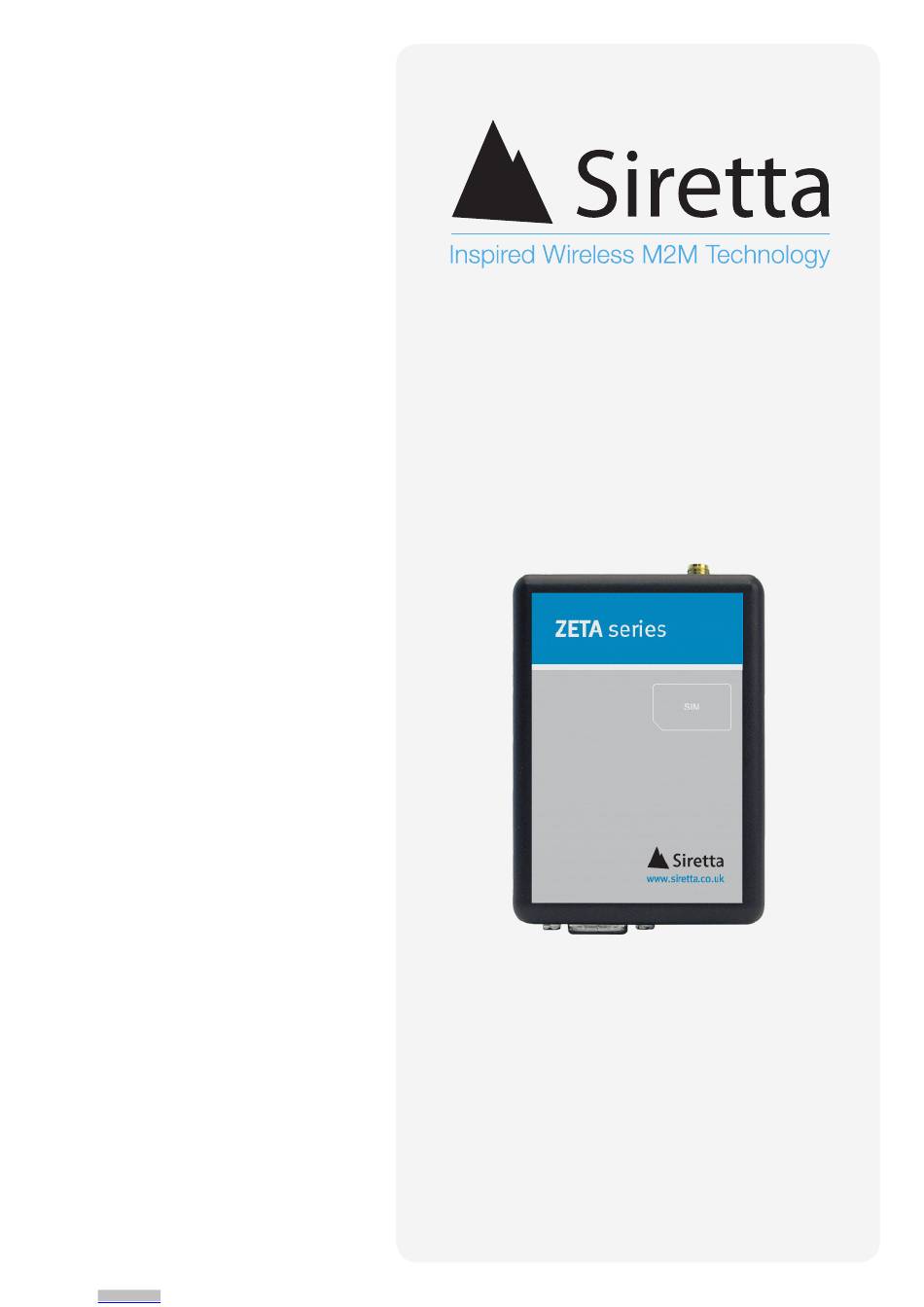

- Page 1 ZETA Series GPRS/UMTS/LTE Modem with GPIO Hardware Reference Manual Rev 1.6 Arrow.com. Downloaded from...
-
Page 2: Table Of Contents
Switching the Modem ON/OFF Modes of Operation Embedded Software Support Ordering Information Telit AppZone Dimensions Telit Easy Script in Python ZETA Series Images Siretta Recommends ZETA LED Indicators Installation Power LED Control Status Considerations for Installations User Programmable LED Status Control... -
Page 3: Introduction
This document is intended to provide guidance when adding a modem from the ZETA series to your system. The ZETA series of GPRS/UMTS/LTE M2M modems are an advanced range of high performance modems developed for easy integration into existing systems and for embedded application development. -
Page 4: About Siretta
10 years. We supply our products globally to many of the world’s leading organisations. Whether you require an off the shelf or custom solution, Siretta has a wide portfolio of antenna, RF cable assemblies and modems to fit your application. -
Page 5: General Description
2 x general purpose input/outputs as well as 1 x ADC input. In addition to this, the ZETA series provides a 3.3V reference power supply output to use with external equipment and can be configured to offer 2 independent serial ports into the modem. - Page 6 ZETA Series GPRS/UMTS/LTE Terminal with GPIO Table 2. Modem data transfer speeds Model Region Coverage Max Download Max Upload ZETA-N-GPRS Global 236.8Kbps 59.2Kbps ZETA-G-GPRS Global 236.8Kbps 59.2Kbps ZETA-N-UMTS Global 21Mbps 5.76Mbps ZETA-G-UMTS Global 21Mbps 5.76Mbps ZETA-N-UMTS (EU) (Europe) 7.2Mbps 5.76Mbps...
-
Page 7: At Commands
To obtain the latest AT command reference guide* with a full list of supported AT commands, please contact your Siretta representative or alternatively visit: www.siretta.co.uk NOTE - This following document refers to useful AT commands throughout and offers descriptions of how to use the AT commands with the ZETA wireless modems. -
Page 8: Zeta Interface
ZETA Series GPRS/UMTS/LTE Terminal with GPIO ZETA Interface Standard Hardware Interfaces The ZETA series modem comes with the following interfaces: » 1 x RS232 serial port interface for direct serial connection to module » 1 x RJ12 power connection with 2 power lines (5 - 42V) and 4 input interfaces »... - Page 9 GPRS/UMTS/LTE Terminal with GPIO Optional Modem Features* Optional Hardware The ZETA series modems have the following optional hardware features: High performance SirfStarIV GPS engine (Options available for GPS/Glonass/Galileo/QZSS) » Optional Technologies The ZETA series modems have the following optional technologies available: »...
-
Page 10: System Diagram
GPRS/UMTS/LTE Terminal with GPIO System Diagram The ZETA series is a versatile range of modems offering multiple communication channels and interfaces to connect into other systems. The system diagram below gives a visual representation of the ZETA interfaces available to the user and shows the various subsections which make up the complete ZETA modem. -
Page 11: System Overview
ZETA Series GPRS/UMTS/LTE Terminal with GPIO System Overview This ZETA can be used in a number of applications, some examples are shown below: » GPIO Monitor (Monitor/Set and report on GPIO status) » Standard RS232 modem attached to existing equipment (PC/MAC/Server etc.) Typically connected devices are: »... -
Page 12: Modes Of Operation
USB Interface This is a USB standard Communication Device Class (CDC) device. A device driver is available for Windows OS. Linux uses standard CDC ACM drivers. Please contact your siretta representative for more information. Siretta Ltd sales +44(0)118 976 9014... -
Page 13: Ordering Information
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Ordering Information ZETA XXXX (XX) Modem Identifier ZETA = Intelligent Siretta Modem with GPIO Module Type N = Without GPS G = With GPS Product Module Version GPRS = GPRS Technology UMTS = UMTS Technology... -
Page 14: Dimensions
All dimensions are shown in mm. The mounting holes are suitable for a M3 fixing screwing. These drawings are relevant for the entire ZETA series modems. Figure 2. ZETA modem GPIO 10-way connector, SIM holder and LED indicator view - dimensions Figure 3. - Page 15 ZETA Series GPRS/UMTS/LTE Terminal with GPIO ZETA-N Modems All dimensions are shown in mm. The mounting holes are suitable for a M3 fixing screwing. These drawings are relevant for the ZETA-N modems. Figure 4. ZETA-N modem top view - dimensions ...
- Page 16 ZETA Series GPRS/UMTS/LTE Terminal with GPIO ZETA-G All dimensions are shown in mm. The mounting holes are suitable for a M3 fixing screwing. These drawings are relevant for the ZETA-G modems. Figure 6. ZETA-G modem top view - dimensions PLAN Figure 7.
-
Page 17: Zeta Series Images
ZETA Series GPRS/UMTS/LTE Terminal with GPIO ZETA Series Images Figure 8. ZETA-N variant Figure 9. ZETA-G variant Figure 10. 3D view of the ZETA Siretta Ltd sales +44(0)118 976 9014 Basingstoke Road +44(0)118 976 9020 A member of the Olancha Group Ltd... -
Page 18: Zeta Led Indicators
ZETA Series GPRS/UMTS/LTE Terminal with GPIO ZETA LED Indicators There are 3 LED outputs on the ZETA modem that can be configured simply and easily to indicate the functional/operational state of the modem. This can be done via software configuration. -
Page 19: Power Led Control Status
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Power LED Control Status During the power up and power down procedure the control of the blue and green LED’s is managed by the internal CPLD. The status of the LED’s is as follows:... -
Page 20: Modem States
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Modem States The current modem state and function is shown below in table 4. Table 4. Modem states (assume AT#SLED=2 Current Modem State Input Next state Indication of new state Green LED will flash 300ms on /... -
Page 21: Interfaces
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Interfaces RS232 Serial Port Interface This connector provides a serial RS232 communication between the ZETA modem and the connected equipment. The modem can be configured via the RS232 connection using AT commands as specified in the AT command manual. - Page 22 ZETA Series GPRS/UMTS/LTE Terminal with GPIO RS232 Male to RS232 Female Cable The RS232 serial cable is the standard cable used for connecting the ZETA modem to other devices such as a PC or industrial control equipment. The RS232 serial cable...
-
Page 23: Usb Serial Port Interface
ZETA Series GPRS/UMTS/LTE Terminal with GPIO USB Serial Port Interface Figure 16. ZETA USB Connector A mini USB type B connector is provided for USB serial connection. ESD protection to +/-4KV contact discharge and +/-8KV air discharge is provided. Pins on this connector are shown in table 6 below. - Page 24 ZETA Series GPRS/UMTS/LTE Terminal with GPIO USB to Mini USB Cable The USB to Mini USB cable allows you to connect to the ZETA modem via the standard USB port. The Mini USB cable connects the modem to other devices such as a PC or industrial control equipment.
-
Page 25: Usb Interface Drivers
USB4 → Unused USB5 → Unused The ZETA series modems do not support autobauding. Integrators have to set the correct speed for serial communication before device initialization. If the right speed is set, the device responds with OK. The default baudrate is 115200. -
Page 26: Gpio 10-Way Connector
ZETA Series GPRS/UMTS/LTE Terminal with GPIO GPIO 10-Way Connector This connector provides a general purpose multi-way interface for the user to access additional functionality within the ZETA modem. This convenient interface allows connections to be made to the modems peripheral connections such as the trace /debug TTL RS232 serial port, GPIO interface and ADC. - Page 27 ZETA Series GPRS/UMTS/LTE Terminal with GPIO The ZETA maximum current drive on the outputs and current consumption on the inputs at different voltages are shown below in table 8. Table 8. Input/output voltages Signal Name Parameter Voltage Level Current Drive...
-
Page 28: Digital Functions
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Digital Functions Digital Output » Switch voltage is 3.3V high side switch » See table 8 above (page 27) for maximum output current » Under full control of AT command/embedded application The following command can be used to initialise and set the LED outputs:... -
Page 29: Digital Input
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Digital Input » Under full control of embedded application The following AT commands can be used to initialise and to read the status of the general purpose inputs: AT#GPIO=9,2,0 (read general purpose input 1, Pin 10 on function header) -
Page 30: Sim Socket
ZETA Series GPRS/UMTS/LTE Terminal with GPIO SIM Socket The ZETA modem supports fixed SIMs locked to a network and roaming SIMs which can operate on more than one network within the home country. This allows for least cost routing for roaming mobile data and machine to machine applications where signal strength is variable in any given area and network selection is required. -
Page 31: Antenna Connectors
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Antenna Connectors Figure 23. Antenna connector GPS antenna connector (optional) GSM antenna connector Antenna Placement When in service the antenna should be placed away from electronic devices or other antennas. The recommended minimum distance between adjacent antennas, operating on a similar radio band, is at least 50cm. - Page 32 » GSM Antenna The GSM antenna we recommend to use for the ZETA series is the Mike 1A SMA male magnetic mount antenna, (Most other Siretta styles of GSM antennas are usable depending on customer preference). Please turn to page 44 for ordering details for the Mike 1A, alternatively visit www.siretta.co.uk/mike1a-p-339.html for more...
-
Page 33: Gps Antenna Connector (Optional)
GPS Antenna The GPS antenna we recommend to use for the ZETA series is the Mike 3A SMA male magnetic mount antenna. Please turn to page 44 for ordering details on the Mike 3A, alternatively visit www.siretta.co.uk/mike3a-p-302.html for more information about this antenna. -
Page 34: Gps
ZETA Series GPRS/UMTS/LTE Terminal with GPIO ZETA-G-GPRS Modem The ZETA-G-GPRS modem is a cutting edge GPS receiver that can simultaneously search and track satellite signals from multiple satellite constellations. This multi- GNSS receiver uses the entire spectrum of Global Navigation Satellite Systems available: GPS, Glonass, Galileo and QZSS. - Page 35 ZETA Series GPRS/UMTS/LTE Terminal with GPIO GPS Characteristics Table 9. Main characteristics of GPS Characteristic Typical Values GPS RX Sensitivity -164dBm GPS Cold Start Autonomous -147dBm GPS Hot Start Autonomous -161dBm GPS Tracking Mode -166dBm GPS Accuracy TTFF from Cold Start...
-
Page 36: Power
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Power RJ12 Power Connector This connector is used for supplying DC power and power ON/OFF signals for the modem. Figure 26. RJ12 power connector Figure 27. Pin numbering Power connector Table 12. Pin usage... -
Page 37: Power Supply Requirements
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Power Supply Requirements A DC power supply must be connected to the power input. Table 13. Characteristics of power input ZETA Series DC input voltage 5 to 42V Recommended input voltage 12V DC Supply current @ 12V:... - Page 38 The cable is compatible across the entire range of Siretta modems and is colour coded for easy integration. Please turn to page 44 for ordering details.
-
Page 39: Power Consumption
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Current Consumption The measurement was taken with 2 Voltages (5V, 12V). The modem was connected via RS232 to a PC in order to send/receive AT commands. The temperature was maintained in a temperature chamber. The voice call with power level 5 in GSM 900 was established with a GSM signal generator test set. -
Page 40: Switching The Modem On/Off
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Switching the Modem ON/OFF Power on the ZETA The ZETA modems have several options to power on. The 2 main options are shown below: 1) Auto power up using the built in CPLD power controller. This process is controlled by default within the modem to control the modem functionality and allows for automatic power up when power is supplied. - Page 41 ZETA Series GPRS/UMTS/LTE Terminal with GPIO Considerations when manually powering the ZETA on and off The PWRON_IN and PWROFF_IN signals requires a positive “edge” (a “sharp” signal transition from low to high) to turn the modem on. This transition should be a rising signal from 0V (GND) up to Vcc (max 42V), or at least a large fraction of that voltage range (>0.5V).
-
Page 42: Embedded Software Support
» Telit AppZone Telit Easy Script in Python » NOTE - Contact your Siretta representative for information about these 2 programming environments. Telit AppZone Telit AppZone is a high-level optimized standard C development environment that has been developed as an integrated platform to run within the GSM module and provides an advantageous “all-in-one”... -
Page 43: Telit Easy Script In Python
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Telit Easy Script in Python Telit Easy Script in Python is a high-level Python programming language script interpreter. Python is often characterized as minimalist, although this applies mainly to the language’s core syntax and semantics. The standard library provided within the development environment offers a large number of additional extensions to perform many complex tasks to enable fast application development. -
Page 44: Siretta Recommends
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Siretta Recommends All ZETA series modems will require extra product which are all available from Siretta. Below are some of the products we recommend for your modem: Product Part No. Description Power Siretta Modem PSU... - Page 45 ZETA Series GPRS/UMTS/LTE Terminal with GPIO Interface Cables USB to Mini USB Cable 31578 The USB to Mini USB cable allows you to connect to the ZULU modem via the standard USB port. The Mini USB cable connects the modem to other devices such as a PC or industrial control equipment.
-
Page 46: Installation
See “AT+CSQ Signal Strength” in the AT command manual Tip: Before installing the modem you can use an ordinary mobile telephone to check the signal strength in each possible installation location. Siretta can also provide a GSM signal tester which provides a full breakdown of the GSM signal received.*... -
Page 47: Power Supply Installation
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Network and subscription: Before your application is used, you must ensure that your chosen network provides the necessary telecommunication services. Contact your service provider to obtain the necessary information. » If you intend to use SMS in the application, ensure this is included in your subscription. -
Page 48: Safety And Product Care
General Precautions » The ZETA series modems are a standalone item designed for indoor use only. For use outside it must be installed in a weatherproof enclosure. Do not exceed the environmental and electrical limits as specified. -
Page 49: Antenna Precautions
ZETA series modem is fit for use. If you are concerned about exposure to RF energy, there are a number of things you can do to minimize exposure. - Page 50 ZETA Series GPRS/UMTS/LTE Terminal with GPIO Medical electronic equipment: Consult the manufacturer of any personal medical devices (such as pacemakers, hearing aids, etc.) to determine if they are adequately shielded from external RF energy. Turn your modem OFF in health care facilities when any regulations posted in the area instruct you to do so.
-
Page 51: Safety Recommendations
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Safety Recommendations PLEASE READ CAREFULLY Be sure the use of this product is allowed in the country intended and the environment required. The use of this product may be dangerous and has to be used... -
Page 52: Conformity Assessment
GPRS/UMTS/LTE Terminal with GPIO Conformity Assessment The ZETA series of modems conform to the R&TTE Directive for use as a stand- alone product. If the modem is installed in compliance with the telecoms installation instructions then no further evaluation is required under Article 3.2 of the R&TTE Directive and no further involvement of an R&TTE Directive Notified Body is required for... -
Page 53: Disclaimer
The information contained in this document is proprietary to Siretta. Siretta has made every effort to ensure that the accuracy of the information contained within this document is accurate. Siretta does not make any warranty as to the information contained within this document and does not accept any liability for any injury, loss or damage of any kind incurred by the use of this information. -
Page 54: Definitions
ZETA Series GPRS/UMTS/LTE Terminal with GPIO Definitions Term Definition 2nd Generation Mobile Telecommunications Subscriber Identity Module 3rd Generation Mobile Telecommunications Sub Miniature Version A Analog to Digital Converter Short Message Service Automatic Meter Reading Time To First Fix TTFF Attention... - Page 55 Become A Distributor Siretta is currently growing its worldwide distributor and reseller base. Distributors can benefi t from an excellent product range, marketing and technical support, along with the widest range of Antennas, Connectors, Cable Assemblies and Wireless Terminals. sales...
