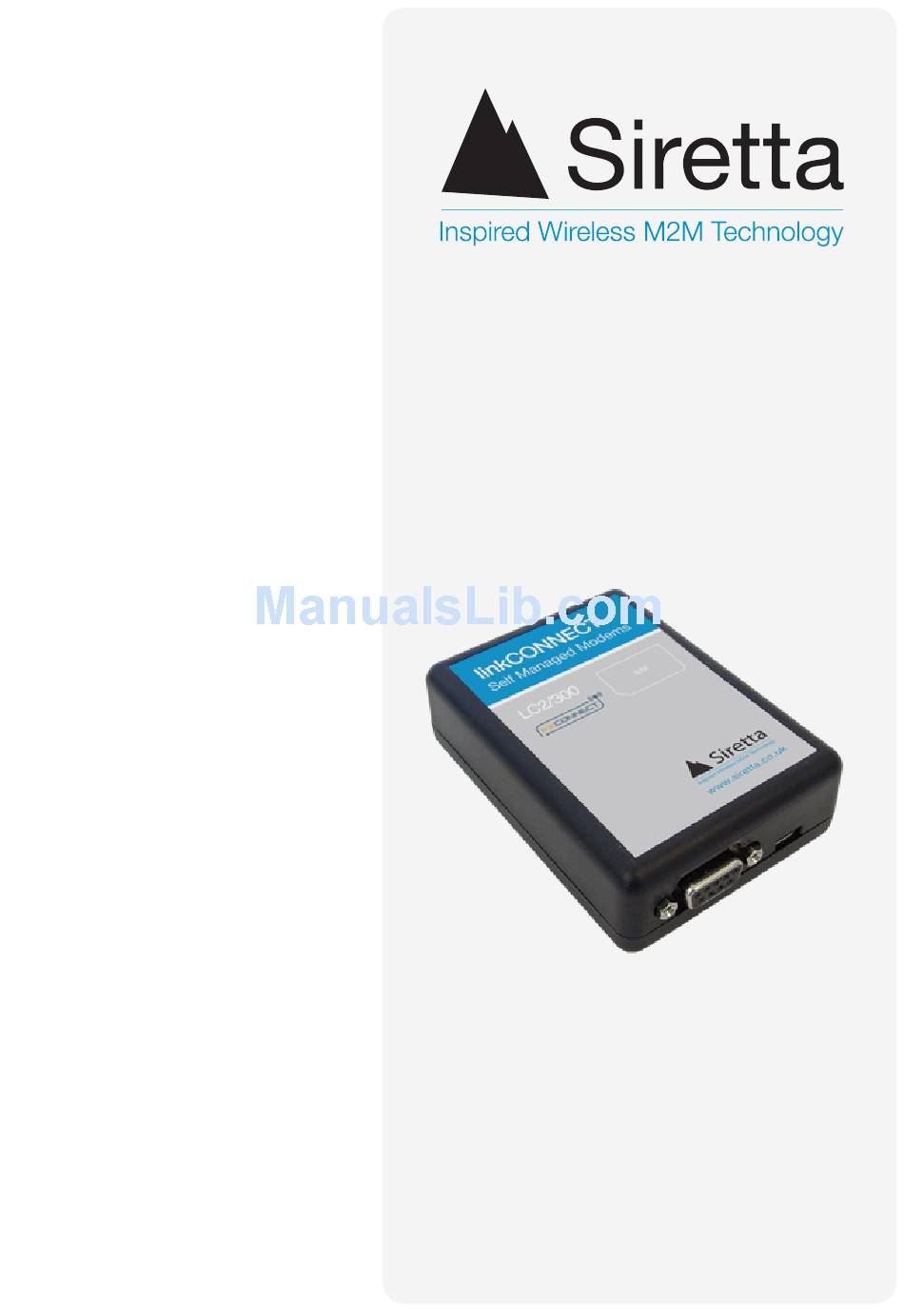

- Page 1 LC300 Series linkCONNECT Starter Kit Quick Start Guide Rev 1.2...
-
Page 2: Whats In The Box
NOTE - The LC300 modem requires a SIM card to work. If you do not have a SIM card, these can be purchased through Siretta. For more information please contact your Siretta representative or call us on +44 (0)118 976 9014. - Page 3 Setting up the LC300 Step 1. Insert a SIM card fully into the SIM slot. Once the SIM card has been correctly inserted, a click will be heard. Step 2. Screw the antenna onto the LC300. Twist the antenna connector clock-wise until the antenna is firmly connected.* *The antenna used in this drawing is different to the one supplied, however the application...
- Page 4 RS232 port on the LC300. Connect the USB connector (other end of the cable) into a USB port on your PC. RS232 cable Step 4. Download the configuration tool using the following link.* http://www.siretta.co.uk/downloads/config_utility.exe *For more information please see the linkCONNECT Software Manual inspired wireless technology...
- Page 5 Reserved / Special Function / Test Blue (GPIO 2) Reserved / Special Function / Test *If this step fails, please try again. If it fails a second time, please contact your Siretta representative or call us on +44 (0)118 976 9014. inspired wireless technology...
- Page 6 Table 2. LC300-UMTS LED indication LED colour State Constant ON: Network search / not registered / call in progress Red (STAT_LED) Slow rate once every 3 seconds: Registered full service OFF: Module power down Green (GPIO 1) Reserved / Special Function / Test Blue (GPIO 2) Reserved / Special Function / Test Step 6.
-
Page 7: Further Information
Further Information For more information when using your LC300, a range of hardware and user manuals are available to download. You can request these from your Siretta representative, alternatively these can be download from www.siretta.co.uk inspired wireless technology... - Page 8 +44 (0)118 976 9014 +44 (0)118 976 9020 accounts +44 (0)118 976 9069 email sales@siretta.co.uk www.siretta.co.uk Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW United Kingdom Company No. 08405712 VAT Registration No. GB163 04 0349 A member of the Olancha Group Ltd...
