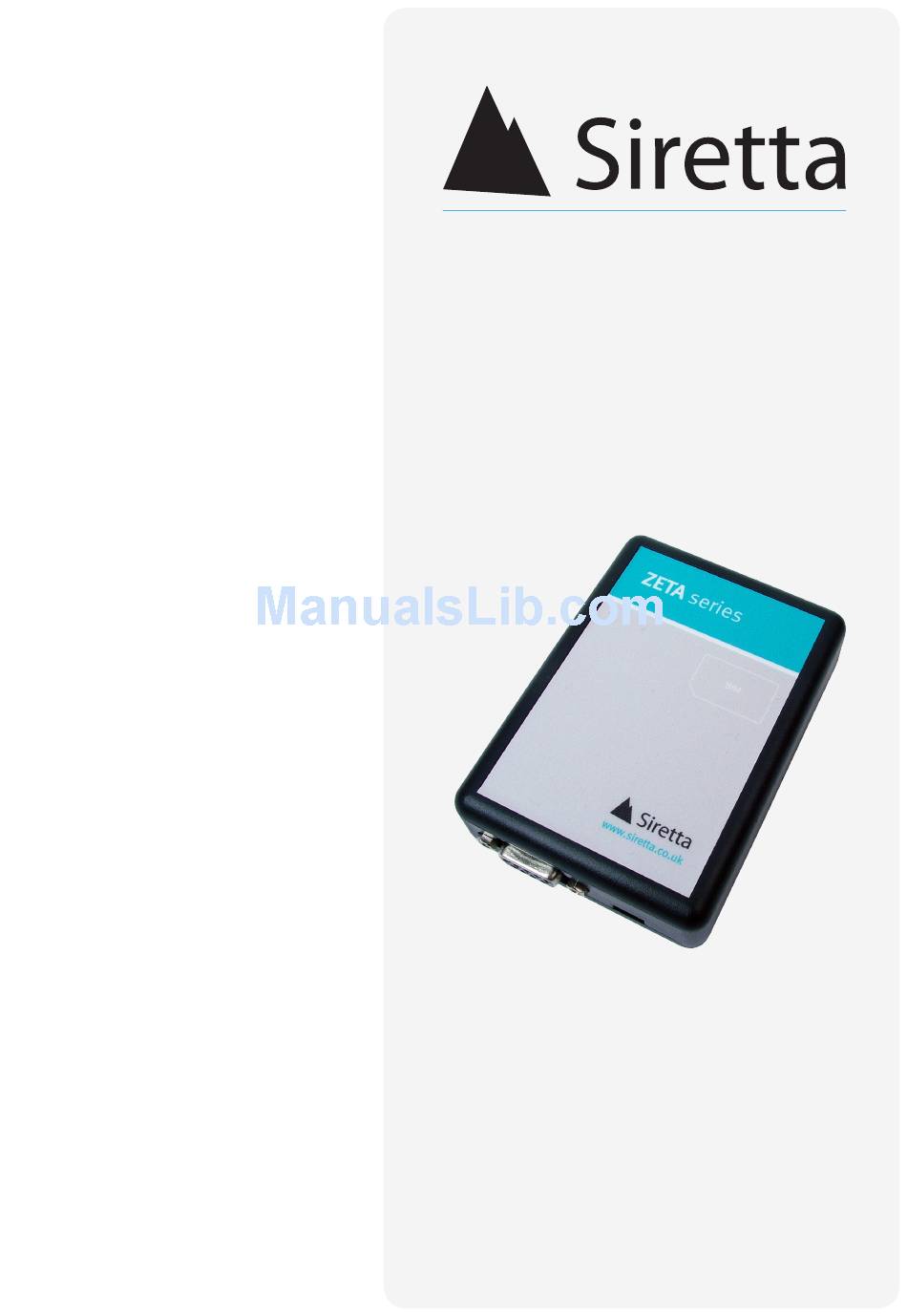

  • Page 1 inspired wireless technology ZETA Configuration Tool User Manual Rev 2.6...
  • Page 2 ZETA Configuration Tool User Manual Table of Contents Page Introduction About Siretta Connecting the Device Configuration Window Device Info Using the Configuration Utility Setting Device Parameters Manage Settings Disclaimer Definitions Siretta Ltd sales +44(0)118 976 9014 Basingstoke Road...

  • Page 3: User Manual

    Gateway to your system. The ZETA-N-GPRS is a general purpose GSM modem for communicating with other equipment via an RS232 serial interface. This document discusses the device states and modes of operation in addition to the electrical characteristics of the device interfaces. Siretta Ltd sales +44(0)118 976 9014 Basingstoke Road...

  • Page 4: About Siretta

    10 years. We supply our products globally to many of the world’s leading organisations. Whether you require an off the shelf or custom solution, Siretta has a wide portfolio of antenna, RF cable assemblies and modems to fit your application.

  • Page 5: Connecting The Device

    Step 1: Connect the male end of the serial cable into the PC serial port Step 2: Connect the female end of the serial cable into the serial port on the device Note: Do not connect the power until instructed Step 3: Open the Configuration Utility Siretta Ltd sales +44(0)118 976 9014 Basingstoke Road...
  • Page 6 Step 3: From the ‘COM Port’ drop down menu, select the relevant COM port for your device. (In this example we will use COM8) Step 4: Once you have selected the correct COM port, press ‘Connect’ Step 5: Connect the power plug into a socket Siretta Ltd sales +44(0)118 976 9014 Basingstoke Road...
  • Page 7 Note: LED will flash red continuously when connected to power Step 7: Wait for your device to connect to the PC (this will take up to 10 seconds), once connected the screen below will be displayed Siretta Ltd sales +44(0)118 976 9014...

  • Page 8: Configuration Window

    IMEI International Mobile Equipment Identity (IMEI) number of the device. Please note: this number can’t be changed. Figure 3: IMEI number IMEI number of the device Siretta Ltd sales +44(0)118 976 9014 Basingstoke Road +44(0)118 976 9020 A member of the Olancha Group Ltd...
  • Page 9 The device streams debug information about what it is doing over the serial port, rather than functioning autonomously. You can read back the log to see what problems are occuring. Figure 6: Debug mode Tick this box to enter ‘Debug Mode’ Siretta Ltd sales +44(0)118 976 9014 Basingstoke Road +44(0)118 976 9020...

  • Page 10: Using The Configuration Utility

    *Please see all commands and syntax from the software command manual. Note: Be careful with parenthesis and white spaces as the information entered must be entered accurately. Siretta Ltd sales +44(0)118 976 9014 Basingstoke Road +44(0)118 976 9020...

  • Page 11: Manage Settings

    Load Settings From File Step 1: To load settings from a current file, select the option ‘Load Settings From File’ Step 2: A new window will open, find your configuration file (*.gtc) and press ‘Open’ Siretta Ltd sales +44(0)118 976 9014...
  • Page 12 Step 2: A new window will open containing your documents, name your file and find the location you require to save your configuration file . Press ‘Save’ to save the file to your PC. Your settings will now be saved Siretta Ltd sales +44(0)118 976 9014...
  • Page 13 The information contained in this document is proprietary to Siretta. Siretta has made every effort to ensure that the accuracy of the information contained within this document is accurate. Siretta does not make any warranty as to the information contained within this document and does not accept any liability for any injury, loss or damage of any kind incurred by the use of this information.
  • Page 14 UART Universal Asynchronous Receiver/Transmitter UMTS Universal Mobile Telecommunications System (Same as 3G) Universal Serial Bus VSWR Voltage Standing Wave Ratio Siretta Ltd sales +44(0)118 976 9014 Basingstoke Road +44(0)118 976 9020 A member of the Olancha Group Ltd Spencers Wood email sales@siretta.co.uk...
  • Page 15 Become A Distributor Siretta is currently growing its worldwide distributor and reseller base. Distributors can benefi t from an excellent product range, marketing and technical support, along with the widest range of Antennas, Connectors, Cable Assemblies and Wireless Terminals. inspired wireless technology...
