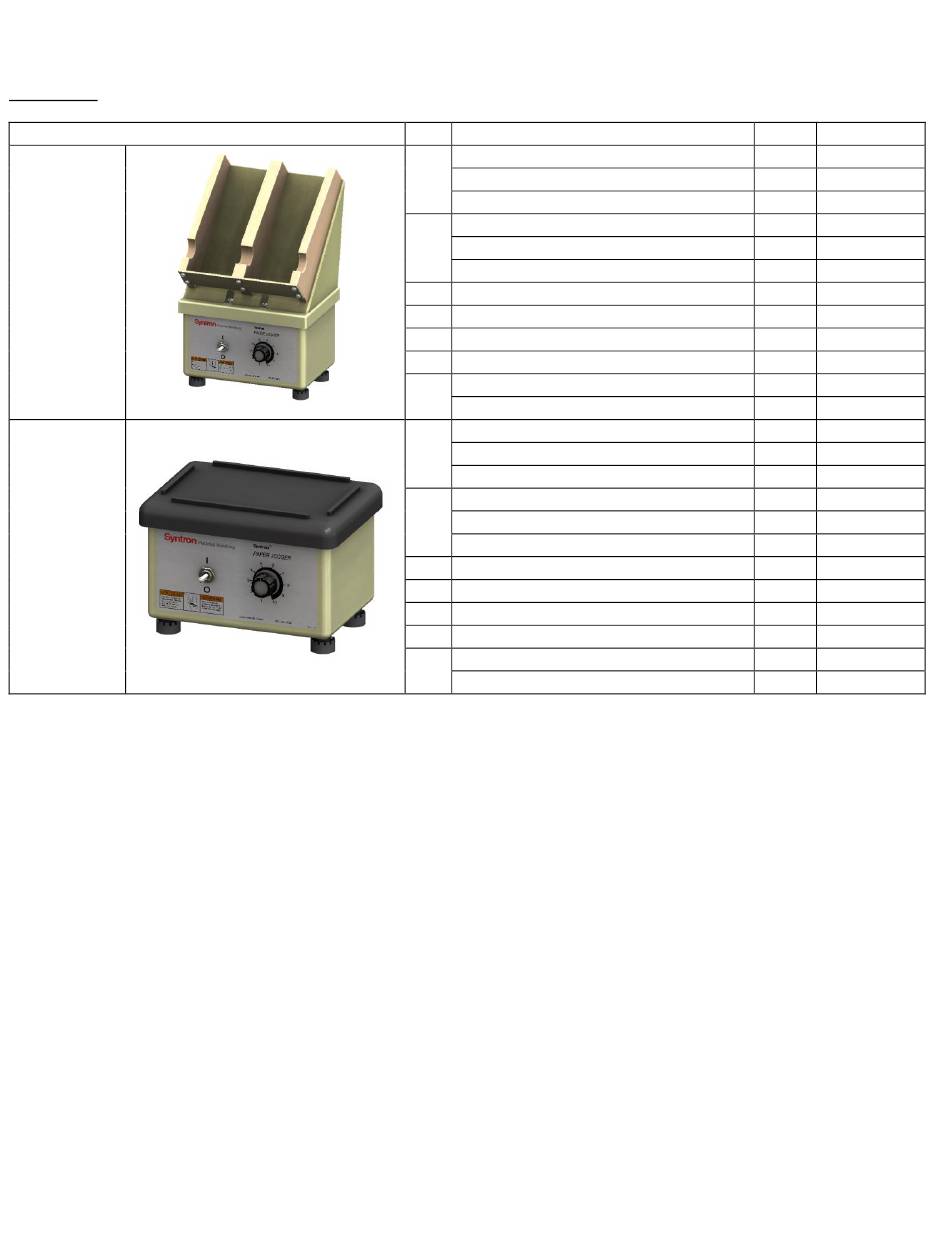

Syntron Material Handling J-1-D Service Instructions Manual page 7

PARTS LIST (CONTINUED)
STYLE
2 POCKET TILT
RACK
RUBBER TOP
DECK
Important
Syntron Material Handling reserves the right to alter at any time, without notice and without liability or other
obligations on its part, materials, equipment specifications, and models. Syntron Material Handling also
reserves the right to discontinue the manufacture of models, parts, and components thereof.
Your satisfaction is very important to us. Please direct any comments, questions, or concerns to our
Marketing Communications Department.
Sym Description
2 POCKET TILT RACK
A BUTTON HD CAP SCRW 1/4-20 X 3/4
LOCKWASHER REG SPR 1/4
COVER SUPPORT (ALUMINUM)
B SCREW HX HD 5/16-18 X 1-1/2
SCREW HX HD 5/16-18 X 1-1/8
C1 CENTER SPACER (THICK STEEL)
C2 CENTER SPACER (THIN ALUMINUM)
E1 END SPRING SPACER (THICK STEEL)
E2 END SPRING SPACER (THIN ALUMINUM)
LEAF SPRING - 9 PLY
F
LEAF SPRING - 11 PLY
TOP COVER
A NEOPRENE TOP COVER
FL HD CAP SCREW 1/4-20 X 5/8
COVER SUPPORT (STEEL)
B SCREW HX HD 5/16-18 X 1-1/2
SCREW HX HD 5/16-18 X 1-1/8
C1 CENTER SPACER (THICK STEEL)
C2 CENTER SPACER (THIN ALUMINUM)
E1 END SPRING SPACER (THICK STEEL)
E2 END SPRING SPACER (THIN ALUMINUM)
LEAF SPRING - 9 PLY
F
LEAF SPRING - 11 PLY
6
QTY Part Number
1 209958-A
4 H0421002
4 H0112802
1 114795
1 H0354624
8 H354524
2 091818-002
4 91819
2 097983-002
8 91817
- 091815-C01
2 091815-A01
1 91806
1 102616
4 H0457902
1 91814
1 H0354624
8 H354524
2 091818-002
4 91819
2 097983-002
8 91817
2 091815-C01
- 091815-A01
