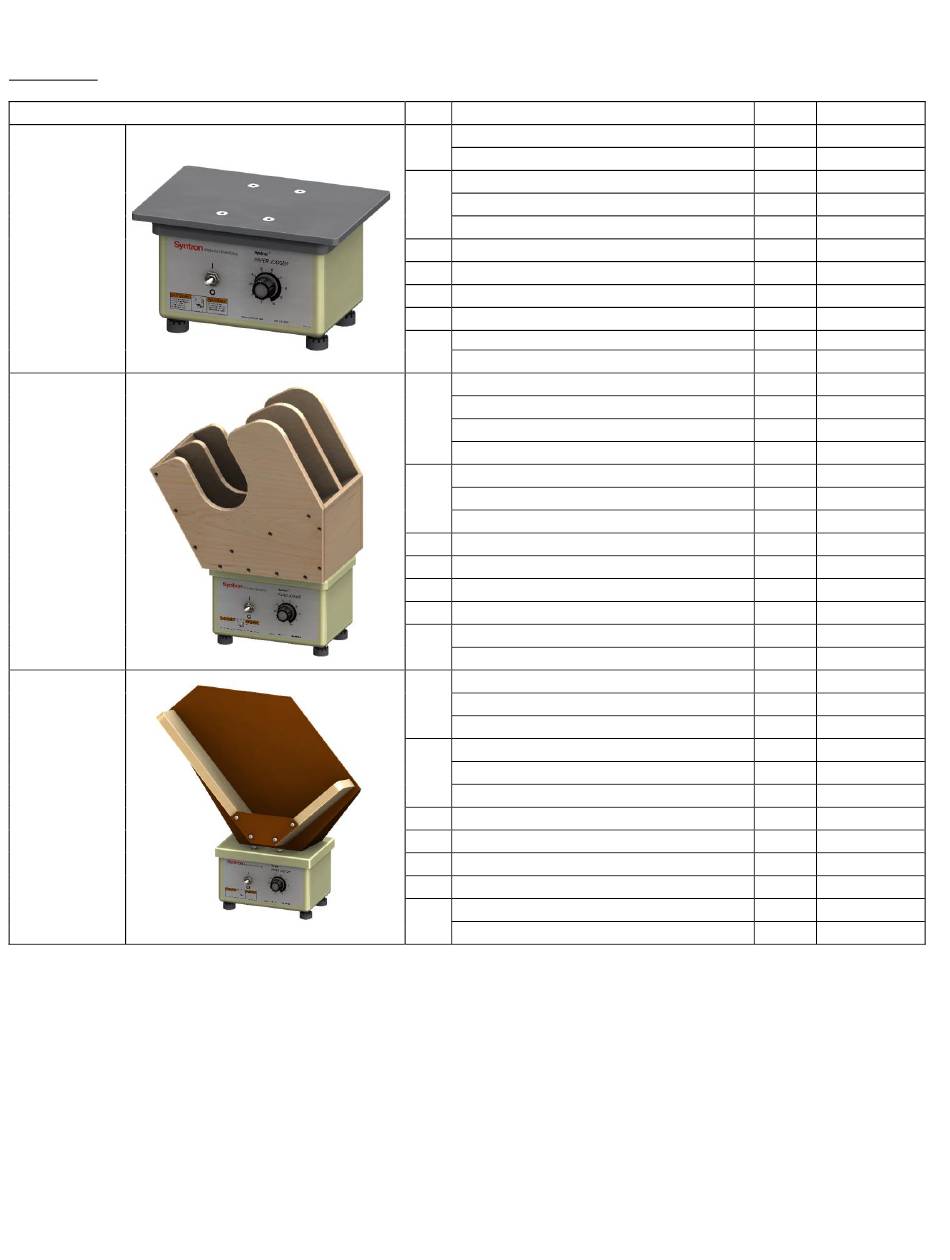

PARTS LIST (CONTINUED)
STYLE
7X10 PLASTIC
DECK (SHOWN
ABOVE)
2 BIN RACK
SINGLE BIN
RACK
Sym Description
PLASTIC DECK
A
FL HD CAP SCREW 1/4-20 X 5/8
COVER SUPPORT (ALUMINUM)
B SCREW HX HD 5/16-18 X 1-1/2
SCREW HX HD 5/16-18 X 1-1/8
C1 CENTER SPACER (THICK STEEL)
C2 CENTER SPACER (THIN ALUMINUM)
E1 END SPRING SPACER (THICK STEEL)
E2 END SPRING SPACER (THIN ALUMINUM)
LEAF SPRING - 9 PLY
F
LEAF SPRING - 11 PLY
TOP COVER
2 BIN RACK
A
SCRW HX HD 1/4-20 X 1-1/4
PLAINWASHER TYPE A 1/4"
COVER SUPPORT (ALUMINUM)
B SCREW HX HD 5/16-18 X 1-1/2
SCREW HX HD 5/16-18 X 1-1/8
C1 CENTER SPACER (THICK STEEL)
C2 CENTER SPACER (THIN ALUMINUM)
E1 END SPRING SPACER (THICK STEEL)
E2 END SPRING SPACER (THIN ALUMINUM)
LEAF SPRING - 9 PLY
F
LEAF SPRING - 11 PLY
SINGLE BIN DECK ASSEMBLY
A BUTTON HD CAP SCRW 1/4-20 X 3/4
LOCKWASHER REG SPR 1/4
COVER SUPPORT (ALUMINUM)
B SCREW HX HD 5/16-18 X 1-1/2
SCREW HX HD 5/16-18 X 1-1/8
C1 CENTER SPACER (THICK STEEL)
C2 CENTER SPACER (THIN ALUMINUM)
E1 END SPRING SPACER (THICK STEEL)
E2 END SPRING SPACER (THIN ALUMINUM)
LEAF SPRING - 9 PLY
F
LEAF SPRING - 11 PLY
5
QTY Part Number
1 104408
4 H0457902
1 114795
1 H0354624
8 H354524
2 091818-002
4 91819
2 097983-002
8 91817
2 091815-C01
- 091815-A01
1 114794-A
1 103209-A
4 H0302001
4 H0116601
1 114795
1 H0354624
8 H354524
2 091818-002
4 91819
2 097983-002
8 91817
- 091815-C01
2 091815-A01
1 195726-A
4 H0421002
4 H0112802
1 114795
1 H0354624
8 H354524
2 091818-002
4 91819
2 097983-002
8 91817
- 091815-C01
2 091815-A01
