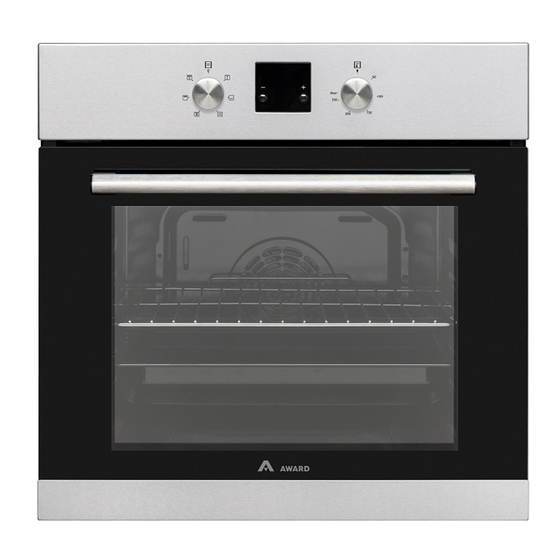

Award WO400S Operating And Installation Instructions
  1. Manuals
  2. Brands
  3. Award Manuals
  4. Oven
  5. WO400S
  6. Operating and installation instructions

Award WO400S Operating And Installation Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WO400S
OPERATING AND INSTALLATION
INSTRUCTIONS OF
BUILT-IN OVEN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WO400S and is the answer not in the manual?

Questions and answers

Related Manuals for Award WO400S

Summary of Contents for Award WO400S

  • Page 1 WO400S OPERATING AND INSTALLATION INSTRUCTIONS OF BUILT-IN OVEN...
  • Page 2 Dear Customer, We take offering quality products more than your expectation as our goal, supplying you products produced in modern facilities carefully and particularly tested for quality. Your manual is prepared in order to help you to use your appliance that is manufactured by the most recent technology, with confidence and maximum efficiency.
  • Page 3 Contents 1- Presentation and size of product 2- Warnings 3- Preparation for installation and use 4- Using the oven 5- Cleaning and maintenance of your product 6- Service and Transport...

  • Page 4: Part 1: Presentation And Size Of Product

    PART 1: PRESENTATION AND SIZE OF PRODUCT LIST OF COMPONENTS : 1- Control Panel 8- Wire Grill 2- Handle 9- Racks 3- Oven Door 10- Oven Light 4- Child Lock 11- Turbo Heating Element(behind the plate) 5- Tray 12- Fan (behind the plate) 6- Lower Heating Element (behind the plate) 13- Air Outlet Shutters 7- Upper Heating Element (behind the plate)
  • Page 5 PART 2 SAFETY WARNINGS READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR APPLIANCE, AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY. THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE MAY NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. PAY ATTENTION TO THE EXPRESSIONS THAT HAVE FIGURES, WHILE YOU ARE READING THE OPERATING MANUAL.
  • Page 6 - During use, the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. - During use, handles held for short periods in normal use can get hot. - Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surface since they can scratch the surface, which may result in shattering of the glass or...
  • Page 7 - Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard. - While the oven door is open, do not let children climb on the door or sit on it. Installation Warnings - Do not operate the appliance before it is fully installed.

  • Page 8: Part 3: Preparation For Installation And Use

    PART 3: PREPARATION FOR INSTALLATION AND USE Manufactured with best quality parts and materials, this modern, functional and practical oven will meet your needs in all respects. Make sure to read the manual to obtain successful results and not to experience any problems in the future. The information given below contain rules that are necessary for correct positioning and service operations.
  • Page 9 3.2. INSTALLATION OF BUILT_IN OVEN Cabinet cut-out sizes Min 25mm You can use either cabinet 1 or cabinet 2 cut-out sizes A DETAIL Minimum 40mm(The wooden part can be extended up to cut-out depth) Wooden part Front frame B DETAIL Countertop Built-in hob Distance between...
  • Page 10 The dimensions and material of the cabinet in which the oven will be installed must be correct and resistant to increases in temperature. In a correct installation, contact with electrical or insulated parts must be prevented. Insulating parts need to be fitted in a way to ensure that they cannot be removed by using any kind of tool.
  • Page 11 3.3. WIRING AND SAFETY OF BUILT_IN OVEN The instructions given below must be followed without fail during wiring : The earthing cable must be connected via the screw with the earthing mark. Supply cable connection must be as shown in Figure 6. If there is no earthed outlet conforming to regulations in the installation environment, call the Authorized Service immediately.

  • Page 12: Part 4: Using The Oven

    PART 4: USING THE OVEN 4.1 CONTROL PANELS Built_in Oven Oven Thermostat Knob Digital Timer Oven Function Control Knob Oven Thermostat Light Oven Operation Light Oven Function Control Knob: To select the desired cooking function, turn the knob to the related symbol(Figure 11). The details of the oven functions have been explained in Table 1 Figure 11 Oven Thermostat Knob:...
  • Page 13 4. USE OF YOUR PRODUCT 4.2. USING THE OVEN FUNCTION CONTROL BUTTON * The functions of your oven may be different due to the model of your product. Oven Lamp Only the oven light will be turned on and it remains on in all the cooking functions. Static Cooking Function The oven's thermostat and warning lights will be turned on, the lower and upper heating elements will start operating.

  • Page 14: Energy Saving

    4. USE OF YOUR PRODUCT Fan Function The oven's thermostat and warning lights will be turned on, the upper and lower heating elements and fan will start operating. This function is very good for obtaining results in baking pastry. Cooking is carried out by the lower and upper heating element within the oven and by the fan providing air circulation, which will give a slight grill effect to the food.
  • Page 15 4. USE OF YOUR PRODUCT Use of digital minute minder Simultaneously press (+) and (-) buttons of digital minute minder. The display will start flashing, and then you can set the time setting by using (+) and (-) buttons. When you press (+) or (-) buttons after setting the time ( ) symbol is displayed, and the desiring timer set.
  • Page 17 4.8. ACCESSORIES USED IN THE OVEN It is recommended that you use the containers indicated on the table depending on the food you will cook in your oven; you can also use glass containers, cake cutters, special oven trays suitable for use in your oven, available in the market. Pay attention to the information given by the manufacturer firm concerning this issue.
  • Page 18 Removal of catalitic panel Removal of wire shelf Pull the wire shelf as shown in the picture. After releasing it from clips, lift it up. Remove G screws on the each catalytic enamel coated panel. Telescopic rails Installation of the Shelves 5.
  • Page 19 PART 5: CLEANING AND MAINTENANCE OF YOUR OVEN 5.1. CLEANING Before starting to clean your oven, be sure that all control buttons are off and your appliance is cooled off. Unplug the appliance. Do not use cleaning materials containing particles that might scratch the enamelled and painted parts of your oven.

  • Page 20: Part 6: Service And Transport

    PART 6: SERVICE AND TRANSPORT 6.1. REQUIREMENTS BEFORE CONTACTING SERVICE If the oven does not operate : The oven may be plugged off, or there has been a black out. On models fitted with a timer, time may not be regulated. If the oven does not heat : The heat may be not adjusted with oven’s heater control switch.
  • Page 21 Brand WO400S Model Type of Oven ELECTRIC Weight 34,0 Energy Efficiency Index - conventional 119,1 Energy Efficiency Index - fan forced 105,7 Energy Class Energy consumption (electricity) - conventional kWh/cycle 0,98 Energy consumption (electricity) - fan forced kWh/cycle 0,87 Number of cavities...
  • Page 22 AWARD APPLIANCES. PO BOX 6269 UPPER RICCARTON CHRISTCHURCH 52149261 03/15...
