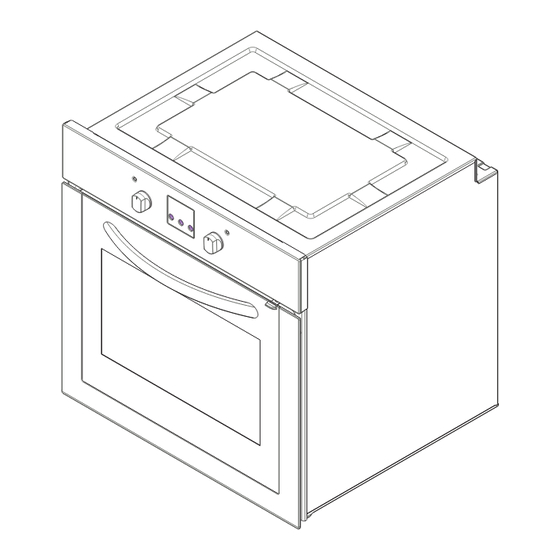

WO500/3 S
OPERATING AND INSTALLATION
INSTRUCTIONS FOR
BUILT-IN OVEN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WO500/3 S and is the answer not in the manual?

Questions and answers

Related Manuals for Award WO500/3 S

Summary of Contents for Award WO500/3 S

  • Page 1 WO500/3 S OPERATING AND INSTALLATION INSTRUCTIONS FOR BUILT-IN OVEN...
  • Page 2 Dear Customer, We take offering quality products exceeding your expectations as a goal, offering you products in modern facilities which are carefully and particularly tested for quality. Your manual is prepared in order to help you to use your appliance that is manufactured by the most recent technology, with confidence and maximum efficiency.
  • Page 3 Contents 1- Presentation and size of product 2- Warnings 3- Preparation for installation and use 4- Using the oven 5- Cleaning and maintenance of your product 6- Service and Transport...

  • Page 4: Part 1: Presentation And Size Of Product

    PART 1: PRESENTATION AND SIZE OF PRODUCT LIST OF COMPONENTS : 1- Control panel 8- Wire Grill 2- Handle 9- Racks 3- Oven Door 10- Oven Light 4- Child Lock 11- Turbo Heating Element(behind the plate) 5- Tray 12- Fan (behind the plate) 6- Lower Heating Element (behind the plate) 13- Air Outlet Shutters 7- Upper Heating Element (behind the plate)
  • Page 5 PART 2: WARNINGS READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR APPLIANCE, AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY. THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE MAY NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. PAY ATTENTION TO THE EXPRESSIONS THAT HAVE FIGURES, WHILE YOU ARE READING THE OPERATING MANUAL.
  • Page 6 - During use, handles held for short periods in normal use can get hot. - Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surface since they can scratch the surface, which may result in shattering of the glass or damage to the surface.
  • Page 7 Installation Warnings - Do not operate the appliance before it is fully installed. - The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement and installation by unauthorized people.

  • Page 8: Part 3: Preparation For Installation And Use

    PART 3: PREPARATION FOR INSTALLATION AND USE Manufactured with best quality parts and materials, this modern, functional and practical oven will meet your needs in all respects. Make sure to read the manual to obtain successful results and not to experience any problems in the future. The information given below contains rules that are necessary for correct positioning and service operations.
  • Page 9 3.2. INSTALLATION OF BUILT_IN OVEN Cabinet cut-out sizes Min 25mm You can use either cabinet 1 or cabinet 2 cut-out sizes A DETAIL Minimum 40mm(The wooden part can be extended up to cut-out depth) Wooden part Front frame B DETAIL Countertop Built-in hob Distance between...
  • Page 10 The dimensions and material of the cabinet in which the oven will be installed must be correct and resistant to increases in temperature. In a correct installation, contact with electrical or insulated parts must be prevented. Insulating parts need to be fitted in a way to ensure that they cannot be removed by using any kind of tool.

  • Page 11: Part 4: Using The Oven

    PART 4: USING THE OVEN 4.1 CONTROL PANEL Built_in Oven Oven Thermostat Knob Digital Timer Oven Function Control Knob 50° Mode 100° 250° 150° 200° Oven Thermostat Light Oven Operation Light 4.2. USING THE OVEN PART OF THE APPLIANCE Oven Function Control Knob: To select the desired cooking function, turn the knob to the related symbol(Figure 11).
  • Page 12 4.3. USING THE OVEN FUNCTION CONTROL BUTTON Table 1 The oven light will be turned on. The oven light, the red warning light and the fan will be turned on. Performs the function of defrosting frozen foods. The oven’s thermostat and warning lights and the lower and upper heating elements will be switched on.
  • Page 13 Lower-Upper Heating Element Function (Static Cooking) : In this type of cooking which is described as the traditional method, the heat emanating evenly from the lower and upper resistors into the oven ensures even cooking of the lower and upper side of the food that you are cooking. Adjust the thermostat knob of your oven to a temperature recommended on the cooking table for the cooking operation you will perform.
  • Page 14 symbol of this function, adjust the oven timer to the recommended time for cooking and preheat the oven for about 10 minutes. The food placed in a suitable container is put into the oven and the operation is started. This position is where very good results are usually achieved in baking pastry.

  • Page 15: Energy Saving

    As the oven will be hot, stay away from the oven and keep your children away as well. Grill and Fan Function : Grill on the highest rack. After placing the oven tray on the third rack, you can start the grill operation.

  • Page 16: Using The Digital Timer

    4.4. USING THE DIGITAL TIMER Time Adjustment : The time must be adjusted before starting to use the oven. Following the power supply to the oven, the symbol (A) and the three “0” on the screen will begin to flash. Press the (+) and (-) keys simultaneously. symbol will appear on the screen.
  • Page 17 of the screen will begin to flash. Using the (+) and (-) keys, adjust the day’s time while this dot is flashing. After the adjustment, it should be expected that the dot will be lit continuously. This function can be used to recieve audible warning at the completion of the adjusted time period.
  • Page 18 Adjust the finishing time for the food you wish to cook, by using the (+) and (-) keys while the timer is in this position. Some time after the adjustment operation is completed, the day’s time will appear En d on the screen and the symbols (A) and will begin to continuously light on the screen.
  • Page 20 4.5. ACCESSORIES USED IN THE OVEN It is recommended that you use the containers indicated on the table depending on the food you will cook in your oven, you can also use glass containers, cake cutters, special oven trays suitable for use in your oven, available in the market. Pay attention to the information given by the manufacturer firm concerning this issue.
  • Page 21 Pan anti-tilting wire To place grid correctly in the cavity, put into any rack and push the grid up to the end. The pan anti-tilting wire must be placed inside the cavity. Removal of catalytic panel Removal of wire shelf Pull the wire shelf as shown in the picture.

  • Page 22: Maintenance

    PART 5: CLEANING AND MAINTENANCE OF YOUR OVEN 5.1. CLEANING Before starting to clean your oven, be sure that all control buttons are off and your appliance is cooled off. Unplug the appliance. Do not use cleaning materials containing abrasives that might scratch the enamelled and painted parts of your oven.

  • Page 23: Part 6: Service And Transport

    PART 6: SERVICE AND TRANSPORT 6.1. Things to Check Before Contacting a Service Agent If the oven does not operate : The oven may be unplugged or, there has been a black out. On models fitted with a timer, time may not be regulated. If the oven does not heat : The heat may not be adjusted with oven’s heater control switch.
  • Page 24 Trademark WO500/3 S Model Energy Consumption at Standard Energy Efficiency Class Load E (kWh) A (High Efficiency) E < 1.00 1.00 E < 1.20 < 1.20 E < 1.40 < 1.40 < E < 1.60 1.60 E < 1.80 <...
  • Page 25 Award Appliances PO BOX 6269 Upper Riccarton Christchurch. 52131834 09/13 52131834 08/13...
