Bidet Attachment – Installation Guide
PRODUCT COMPONENTS
Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
Product Components

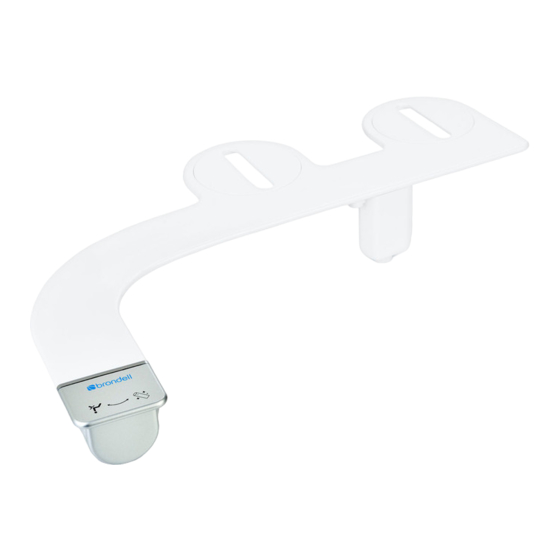

Bidet attachment with ergonomic control
Adjustable
mounting brackets (2)
27½" braided metal
bidet hose
T-Valve connector with
included rubber cone
washer
(⅞" x ⅞" x ⅜")
Teflon Tape
3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for brondell FreshSpa FS-10
Summary of Contents for brondell FreshSpa FS-10
- Page 1 Bidet attachment with ergonomic control Adjustable T-Valve connector with mounting brackets (2) included rubber cone washer (⅞" x ⅞" x ⅜") 27½” braided metal Teflon Tape bidet hose Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
- Page 2 PRODUCT INFORMATION PRODUCT INFORMATION Product Dimensions 15.4" 9.3" 4.7" 2.95" 7.4" 0.2" deep 1.6" at deepest point on control Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
- Page 3 T-valve that you will install under the toilet tank), and the bottom connection will be 3/8” or ½” female compression (to connect at the shut-off valve at the wall). Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
- Page 4 Connect the cold water supply line coming from the wall to the bottom of the T-valve. Step 3a Step 3b Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
- Page 5 Ensure the control knob is lying flat and isn’t turned to one of the operating positions to prevent water from accidentally spraying out of the toilet bowl. Step 6c Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
- Page 6 NOTE: If there is any leaking, check all rubber washers and make sure all water connections are tight and secure. If necessary, you can use the provided Teflon Tape (Plumber’s Tape) for any leaking connections. Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
