Lindy 32586 Quick Start Manual

Description

Supports VGA resolutions up to: 1920 x 1200 & Stereo Audio

Metal housing with magnetic base & mounting plate

Remote control with 1.4m cable for convenient operation

Powered via VGA ports; no separate power supply required

2 year warranty

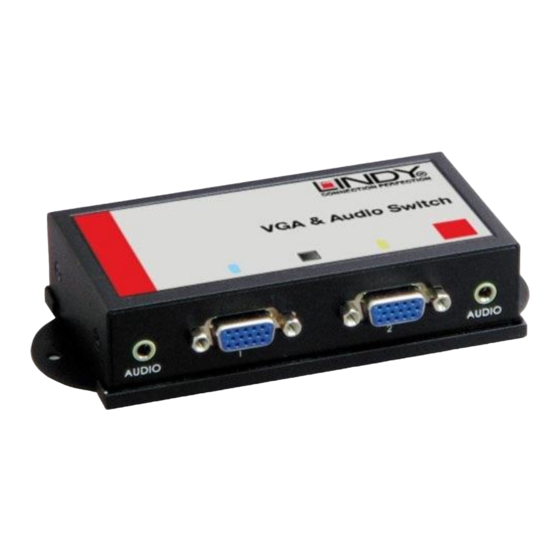

This compact VGA and Audio Switch allows you to connect 2 VGA and audio sources to 1 VGA

display and speakers and then switch between them using the supplied cable remote control. The

switch automatically detects a new signal and switches to that port. If a signal source is unplugged

or turned off, the switch automatically connects to the other active port.

2 Port VGA & Audio Switch

Remote Control with 1.4m Cable

Fixing Screws

User Manual

LED to indicate the selected input

Supports cable lengths of up to 50m using Lindy Premium Gold S-VGA cables

Remote control with 1.4m cable for convenient operation, which can be extended up to 50m

VGA + Audio Switch, 2 Port

Part No.: 32586

Table of Contents

Do you have a question about the 32586 and is the answer not in the manual?

Page 1 Fixing Screws User Manual Technical details LED to indicate the selected input Supports cable lengths of up to 50m using Lindy Premium Gold S-VGA cables Remote control with 1.4m cable for convenient operation, which can be extended up to 50m...
Page 2 Lindy PS/2 Extension cable Connections: Inputs: 2x HD-15 Pin Male Outputs: 1x HD-15 Pin Female MD-6 female for remote control (Pinout) Pin 1 & 2 - On/Off Pin 3 & 4 - LED Pin 5 & 6 - Ground Dimensions: 103 x 55 x 23mm (WxDxH) ©...
