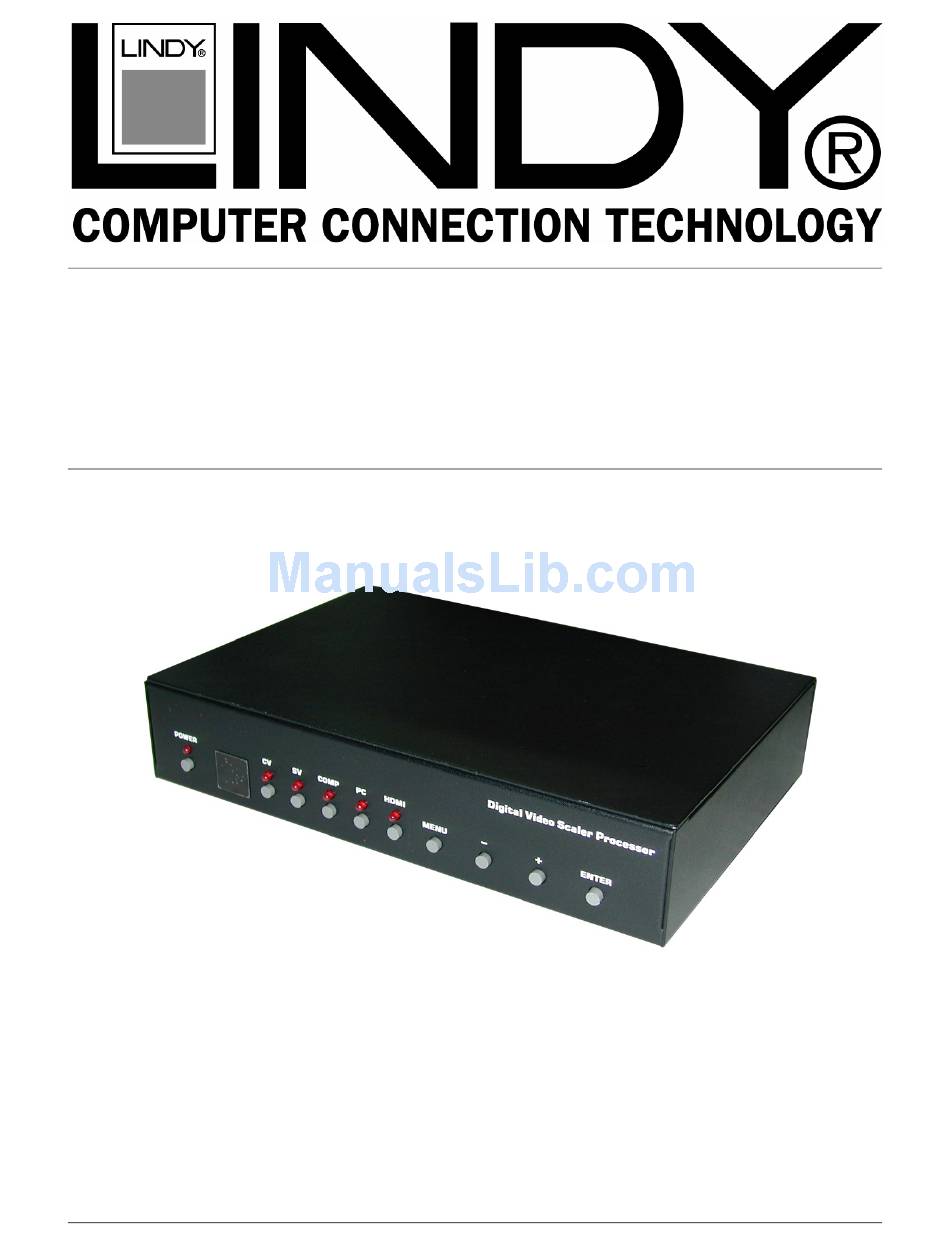

- Page 1 HDMI Scaler/Switch Quick Start Guide English LINDY No. 32596 www.lindy.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (September 2007)

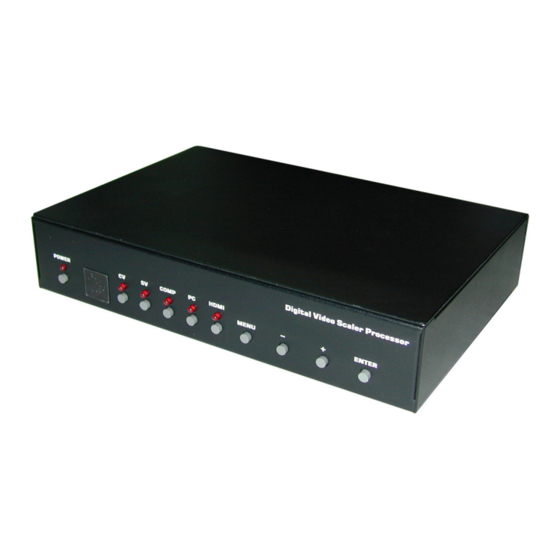

- Page 3 User Manual 1. Introduction Thank you for purchasing the LINDY HDMI scaler with remote control. This high performance scaler is designed to upscale digital & analogue signals from Composite, S-Video, PC, Component (HD) and HDMI devices to a digital HDMI output. Besides up scaling to HDTV (1080p) and WUXGA (1920x1200) the scaler also converts analogue audio to digital then outputs through HDMI or coaxial S/PDIF.
- Page 4 HDMI Scaler/Switch User Manual Rear Panel HDMI & CO-AX Out: Connect the HDMI output port to the HDMI input port of your display. Connect the Coaxial output port to an external amplifier Aux Input Port: When using the HDMI input port with DVI, connect the audio from the DVI device to the Aux input port HDMI Input: Connect your HDMI sources such as DVD player or set top box to these inputs...
- Page 5 HDMI Scaler/Switch User Manual 4. OSD Operation...
- Page 6 HDMI Scaler/Switch User Manual 5. Remote Control POWER: Press the button once to power on the unit. Press again to enter standby mode. INPUT: Press the button repeatedly to toggle through the various input sources. HD Input: Press the button to directly select component input.
- Page 7 HDMI Scaler/Switch User Manual Coaxial (S/PDIF) Output Ports: • HDMI Coaxial 5V DC power supply • Dimensions: 215 x 154 x 47 (WxDxH) • Weight: 1Kgs • 7. Connection & Installation...
