OPERATOR'S MANUAL

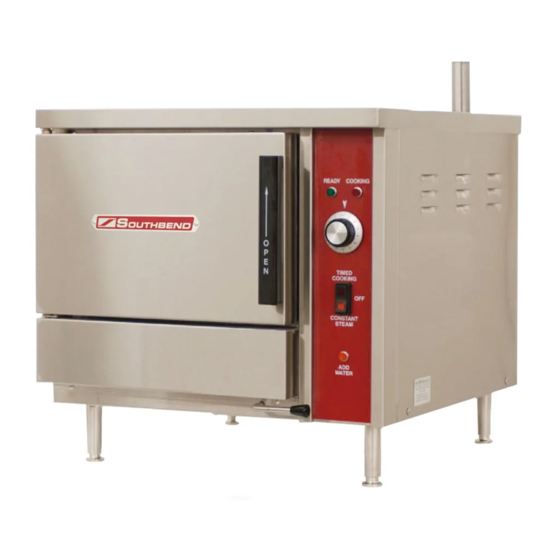

Electric Counter Convection Steamer
EZ24-3
EZ24-5
!
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property damage,
injury or death. Read the installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
1100 Old Honeycutt Road, Fuquay-Varina, NC 27526
www.southbendnc.com
HEAVY DUTY STEAM
M
1195731 R
0 (11/22/2011)
ANUAL
EV
