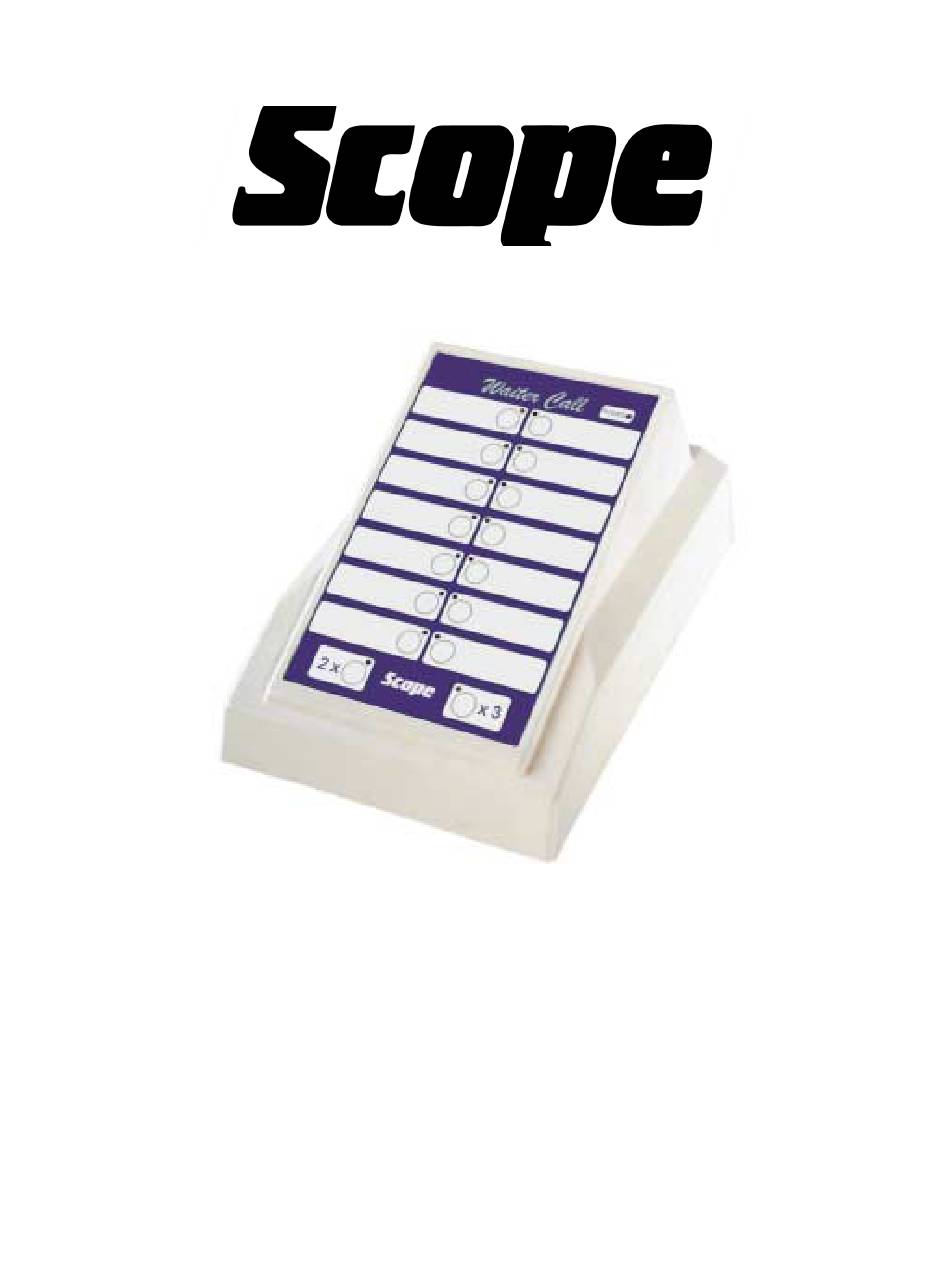

- Page 1 DataTrack 20 Waiter Call Installation and User Manual...
- Page 2 It is the purchasers’ responsibility to determine the suitability of this equipment and its derivatives for any given application, Scope cannot give specific advice in this manual, as each use will require independent evaluation. Scope has, wherever possible, employed extra safeguards or designed optional equipment to further monitor the system’s performance.
- Page 3 All applications should be thoroughly assessed by the installer in conjunction with the customer so as to minimize risk. Scope has no control of the use and application of the frequencies issued by the FCC. Some equipment that is individually licensed may have a greater degree of protection than other equipment that is operated on a FCC License Assignment basis.
- Page 4 There are no other expressed or implied warranties except as stated herein, and those excluded include those of merchantability and fitness for a particular purpose. In no event will Scope or any of its agents be liable for direct, indirect, special incidental or consequential damages resulting from any defect in the product, even if advised of the possibility of such damages.
-
Page 5: Section 1: Installation

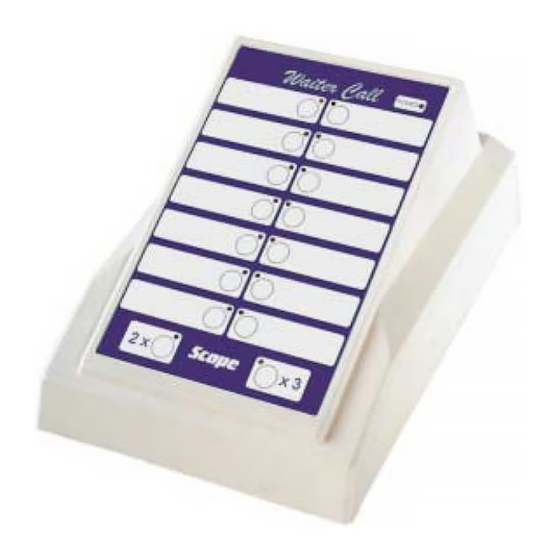

DataTrack Waiter Call USA Version System Overview The Scope DataTrack Waiter Call is a desktop radio transcoder that can be used to transmit numeric and multi-call/pulsed vibrate messages direct to pocket pagers carried by individuals or entire groups. The system has 14 individual call buttons that can transmit any of three different call types direct to the user’s pager. - Page 6 DataTrack Waiter Call USA Version Wall Mounted Units 1 Identify a suitable location for fixing the unit, observing the recommendations detailed on page 6. 2 Ensure that a minimum of 8 inches beneath the intended location is left clear for the antenna, and check that the power cable, when fitted, is within reach of a mains wall outlet.
- Page 7 DataTrack Waiter Call USA Version Some major points to consider when installing equipment: Avoid placing the DataTrack in the immediate vicinity of telephone exchanges or computer equipment. Also remember that the performance of the system will be affected by the type of material the unit is mounted on and its surroundings.
- Page 8 DataTrack Waiter Call USA Version You can send two other call types to the pager by pressing either the X2 or X3 button prior to selecting the server. The red light will come on at the corner of the X2 or X3 button to acknowledge the button press. This will stay on until the appropriate sever button has been pressed, where upon it will extinguish automatically.
- Page 9 DataTrack Waiter Call USA Version Non-standard (Single Call) software Operation is the same as the Standard software described above, with the following difference: For all call types, the pager will only vibrate (or beep) for a single burst. The pager will, however, still show the call type (---1---, ---2--- or ---3---) on it’s display.
-
Page 10: Specification
220 (L) x 130 (W) x " 90 (H) max * Mounting Desk or Wall mounted with optional bracket "excluding aerial Scope’s policy is one of continuous development and specifications are subject to change without prior notice DTKWCUSA 02/00 Issue 1...
