Please note that radio range testing and site surveys should only be conducted by qualified radio
installation engineers who have a thorough understanding of UHF radio propagation characteristics in a
commercial environment.
This test kit can be used to simulate several products. Before continuing it is essential that you know
which product family is being proposed for the site so that you can conduct the relevant test(s). If you
don't know, stop and find out. If any further advice is needed / technical manuals, please call our
technical support team on 01803 860720 or support@scope-uk.com.
NOTE: ALWAYS ENSURE THE TRANSMITTER BEING TESTED IS FITTED WITH AN AERIAL BEFORE APPLYING
RTESTPUMAN 1.7
Scope Communications UK Ltd
RTESTP User Manual
RTESTP Combined Range Testing Equipment

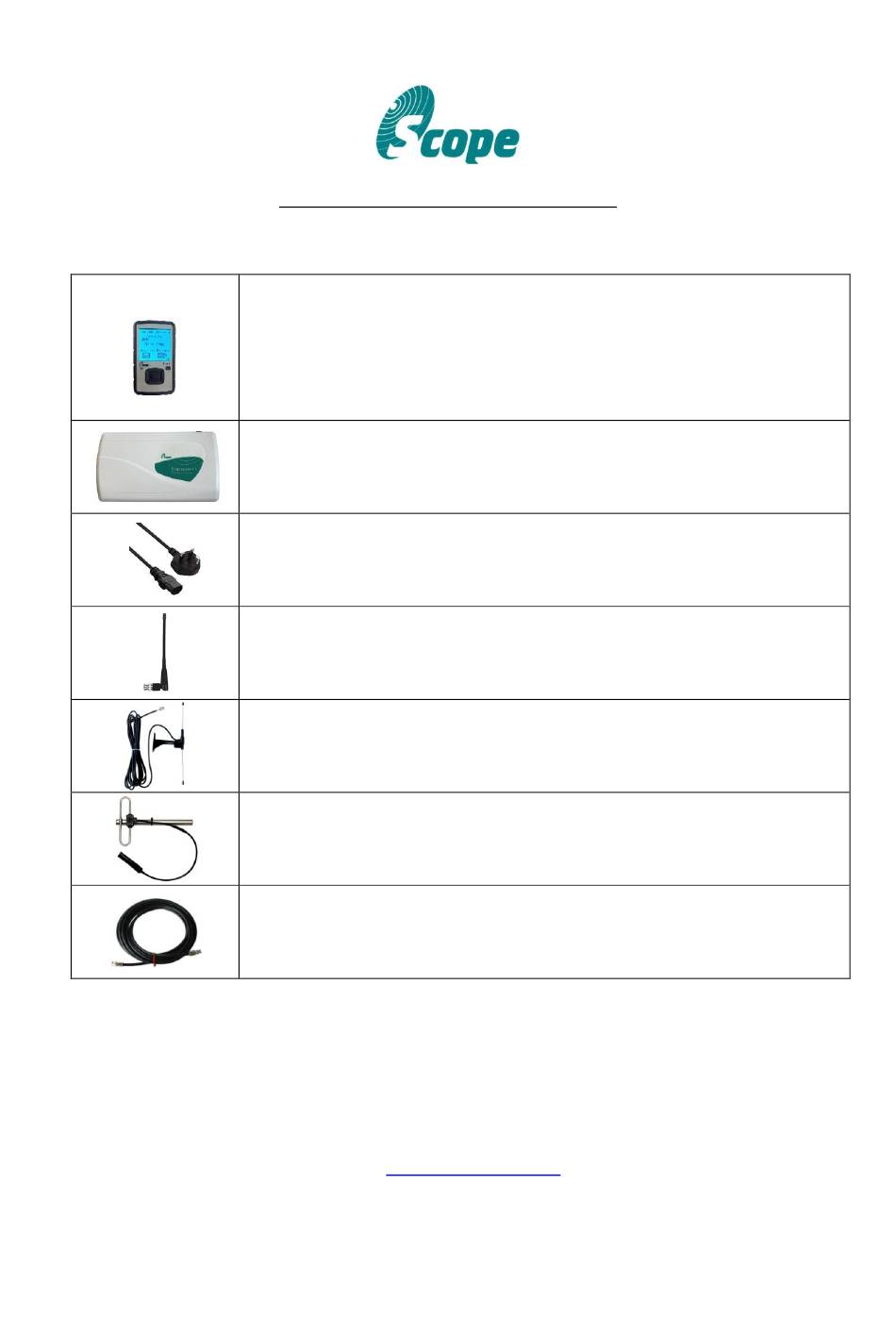

1 x EPOC BLU pager (with charger, lead and plug).
1 x Paging test transmitter (1 & 2 Watt).
1 x 1.8m IEC C13 to UK Plug Power Cable.
2 x ¼ wave quarter-wave antenna (14BNC90).
1 x lightweight dipole aerial with lead.
1 x heavy duty folded dipole aerial.
1 x aerial lead for above.
POWER, OTHERWISE DAMAGE MAY RESULT.
