Solfex SOLAR CANOPY Installation Manual page 9

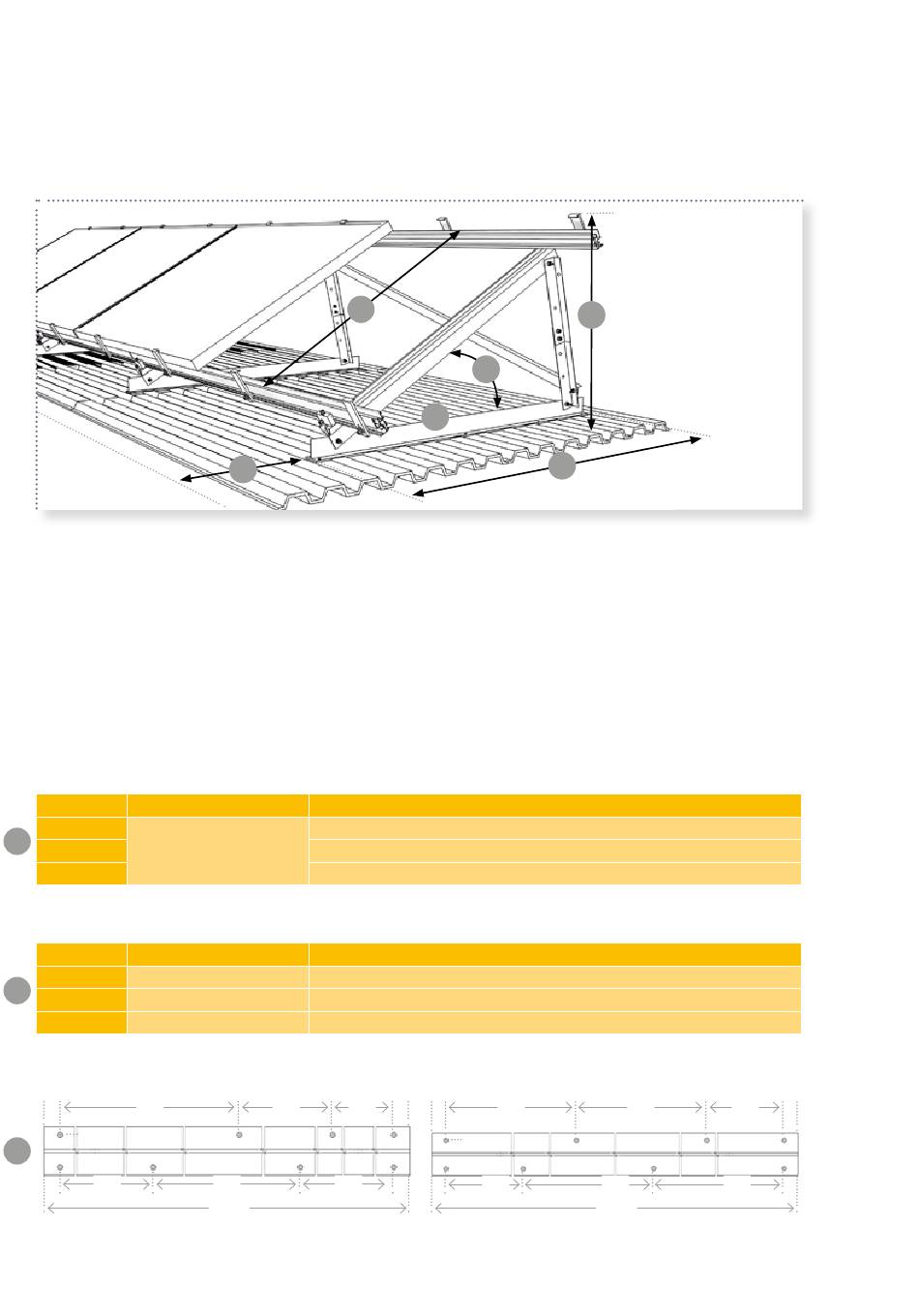

Landscape installation
a Height of the frame unit: see table B below
b Pitch: 20°, 25°, 30°
c Distance between the rows: according to project plan
d Distance to ground: at least 8 cm, depending on
module positioning
e Distance between the triangles: according to plan,
portrait mounting up to approx. 1.5 m,
landscape mounting up to approx. 1.8m
f Distance between the foot brackets of the triangle:
955 mm / 1260 mm, depending on selected triangle
type (model A/B)
Depth of the unit, including module
Pitch Landscape installation
20°
A
25° 995 mm
30°
Height of the frame unit, including module
Pitch Landscape installation
20° 534 mm
B
25° 615 mm
30° 692 mm
Hole pattern: Ground rail A
20 545
ø 6,1 mm
I
20 327
k
d
Portrait installation
module length x 0.94; at least 995 mm
module length x 0.91; at least 995 mm
module length x 0.87; at least 995 mm
Portrait installation
(module length x 0.34) + 80 mm; at least 534 mm
(module length x 0.42) + 80 mm; at least 615 mm
(module length x 0.50) + 80 mm; at least 692 mm
327 218
436 327
1.110
c
i
a
g Drill hole size in the foot brackets: 11 mm or 13 mm,
depending on selection
h Ground rail, hole pattern for triangle models A and B:
see illustration I below
i Distance between the base rails for portrait installation:
Distance of the clamp points as recommended by the
module manufacturer (usually marked by the drill holes
in the module frame, approx. ½ the module length).
j Distance between the base rails for landscape
installation: Distance of the outer edges of the rails =
module width
Hole pattern: Ground rail B
20 20 545
ø 6,1 mm
20 20 327
b
545 327
545 545
1.457
All dimensions in mm
