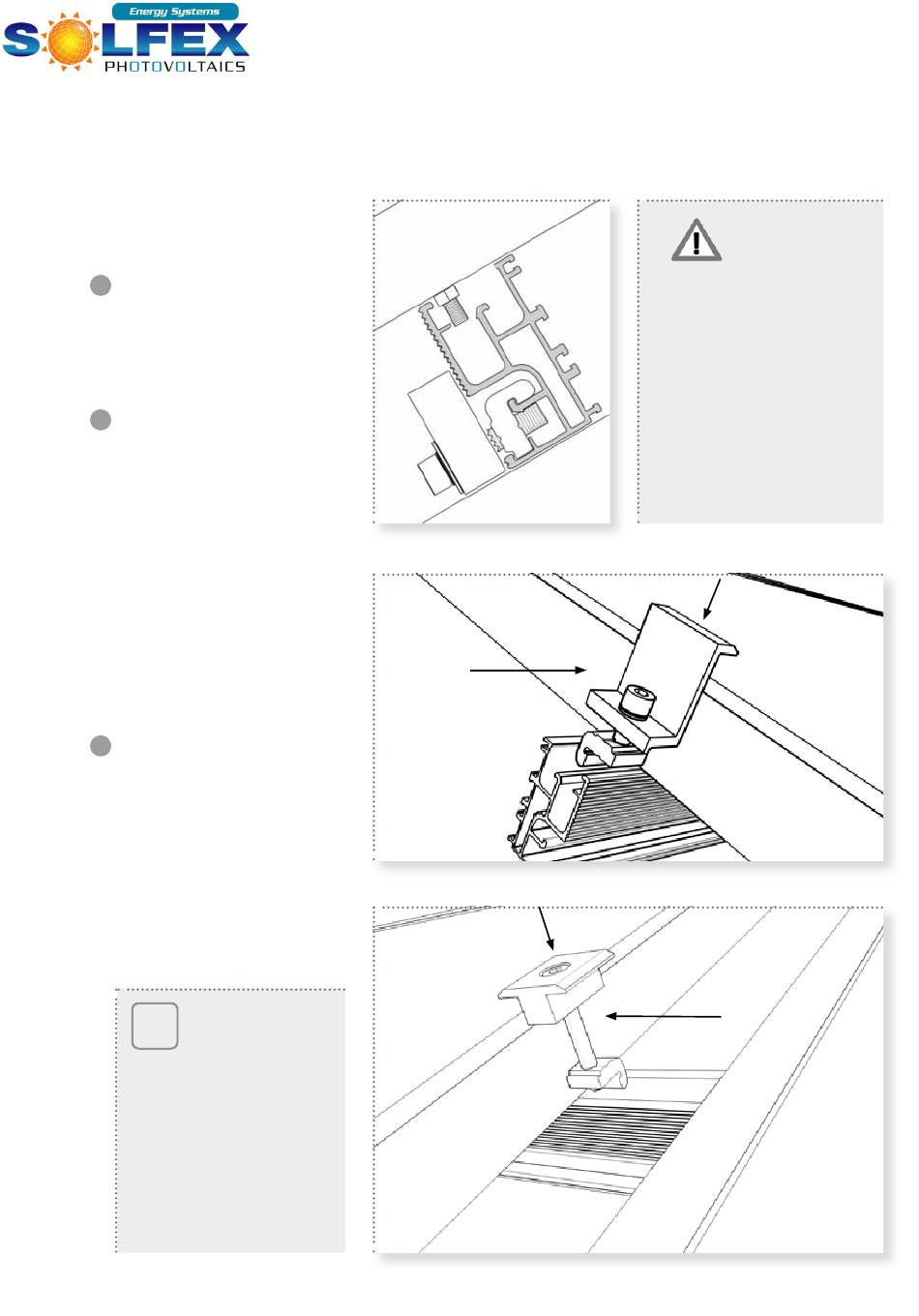

6.3 Installing the modules

6.3.1 Portrait installation

Module positioning
1
• Place the modules on the rails so
that the slip-guard bolts are in
the lowest rail channel.
Attaching the outer modules
2
• Insert the Quickstone of the
module end clamps in the top
channel of the base rail (the bolt
may not protrude on the under
side of the Quickstone) and
fasten them loosely.
• Before tightening, push the
modules under the module
clamps and align them.
• Tighten the module end clamps
(tightening torque 8 Nm).
3 Attaching the inner modules
• Insert the Quickstone of the
module clamp into the top rail
channel of the base rail, slide
them on to the previously
mounted module and fasten
loosely.
• Slide the second module onto the
module clamp, align it, and
tighten the bolts (tightening
torque 8 Nm).
i
|
14
When installing
laminates, special
laminate end and/
or laminate middle
clamps must be
used. The installa-
tion procedure is
identical. Slide the
laminate between
the rubber lips of the
laminate end clamp
before tightening.
CAUTION
Material damage due to
improper mounting
• Improperly fastened module
(end) clamps may rip out.
• All Quickstone connections
must be mounted according
to instructions.
• After installation, ensure that
the bolted connections are tight.
