The document consists of the following major sections:
Getting started: Overview of the board and hardware/software setup instructions to get started.
Hardware Reference: More detailed information about the board's hardware.
Hardware Revision Details: Revision history, known issues, and links to user guides for previous
versions (if any) of the board.
Getting Started
This section provides a brief introduction of ESP32-S3-DevKitC-1, instructions on how to do the initial
hardware setup and how to flash firmware onto it.
Description of Components
The key components of the board are described in a counter-clockwise direction.
Key Component
ESP32-S3-WROOM-1/1U
5 V to 3.3 V LDO
Pin Headers

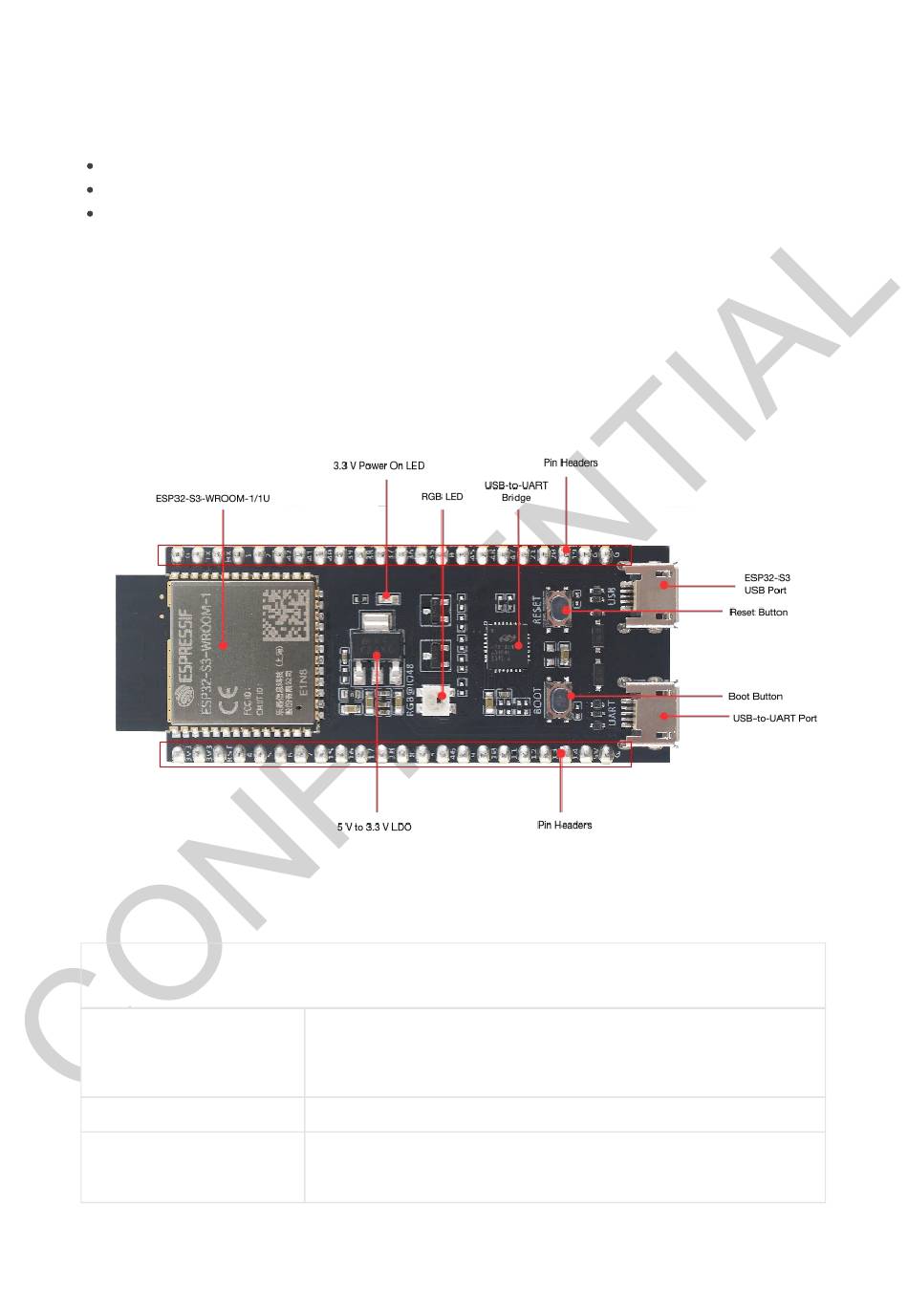

ESP32-S3-DevKitC-1 - front
Description
ESP32-S3-WROOM-1 and ESP32-S3-WROOM-1U are two powerful,
generic Wi-Fi + Bluetooth LE MCU modules that have a rich set of
peripherals. They provide acceleration for neural network computing
and signal processing workloads.
Power regulator that converts a 5 V supply into a 3.3 V output.
All available GPIO pins (except for the SPI bus for flash) are broken
out to the pin headers on the board for easy interfacing and
programming. For details, please see Header Block.
