Hardware Reference; Power Supply Options; Header Block - Espressif ESP32-S3-DevKitC-1 User Manual

Wholesale Orders
If you order in bulk, the boards come in large cardboard boxes.
For wholesale orders, please go to https://www.espressif.com/en/contact-us/sales-questions.
Hardware Reference
Block Diagram

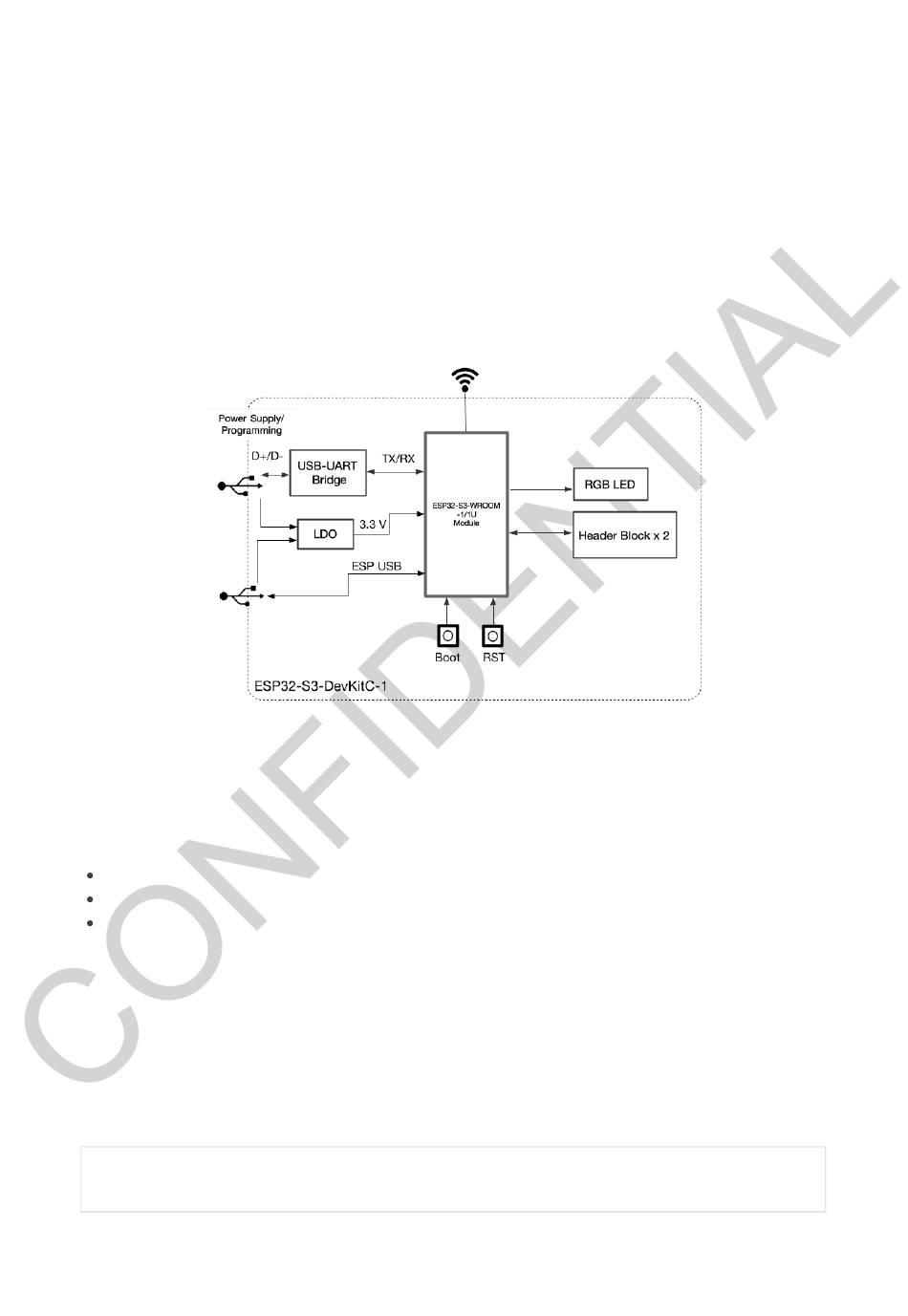

The block diagram below shows the components of ESP32-S3-DevKitC-1 and their interconnections.
Power Supply Options
There are three mutually exclusive ways to provide power to the board:
USB-to-UART Port, default power supply (recommended)
5 V and GND pins
3V3 and GND pins
Header Block
The two tables below provide the Name and Function of the pins on both sides of the board (J1 and J3).
The pin names are shown in ESP32-S3-DevKitC-1 - front. The numbering is the same as in the Board
Schematic (PDF).
J1
No. Name Type
ESP32-S3-DevKitC-1 (click to enlarge)
1
Function
