Selectronic Australia WM1000-24V Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Contents:
INTRODUCTION ...............................................................................................................................2
WARRANTY CARD ............................................................................................................................2
INSTALLATION.................................................................................................................................2
BATTERIES .............................................................................................................................................................4
CONNECTION OF AC AND DC WIRING..........................................................................................................4
OPERATION.......................................................................................................................................6
MODE BUTTON & LED's .....................................................................................................................................6
STATUS & ALARM INDICATORS - LED 5 (green) OFF .................................................................................6
DEMAND START ADJUST - LED 5 (green) ON.................................................................................................7
LOW VOLTS ADJUST - LED 5 (green) FLASHING..........................................................................................8
HANDY HINT.....................................................................................................................................9
FAULT FINDING ............................................................................................................................10
SYSTEM MAINTENANCE..............................................................................................................11
WM1000 MAINTENANCE...................................................................................................................................11
BATTERY MAINTENANCE ...............................................................................................................................11
WM1000 ELECTRICAL SPECIFICATIONS.................................................................................12
RADIO FREQUENCY INTERFERENCE......................................................................................13
USING A SELECTRONIC KEYPAD WITH THE WM1000-24 ....................................................14
SERIAL PORT WIRING ......................................................................................................................................14
KEYPAD WIRING ................................................................................................................................................14
KEYPAD FRONT PANEL (Display not shown for clarity)...............................................................................14
STATUS ..................................................................................................................................................................15
READINGS (Keypad Grey Keys) .........................................................................................................................15
SETTINGS (Keypad Light Blue Keys).................................................................................................................17
OPTIONS (Keypad Light Blue Keys)...................................................................................................................18
DIAGNOSTICS (Keypad Light Blue Keys).........................................................................................................18
INVERTER ALARMS...........................................................................................................................................18
WARNING.........................................................................................................................................19
PRODUCT WARRANTY CONDITIONS ........................................................................................19
S
ELECTRONIC
WM1000-24V OWNERS MANUAL
A
USTRALIA
1
Page
Rev 1.01
30 January 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM1000-24V and is the answer not in the manual?

Questions and answers

Related Manuals for Selectronic Australia WM1000-24V

Summary of Contents for Selectronic Australia WM1000-24V

  • Page 1: Table Of Contents

    ELECTRONIC USTRALIA WM1000-24V OWNERS MANUAL Contents: Page INTRODUCTION ..........................2 WARRANTY CARD ..........................2 INSTALLATION..........................2 BATTERIES ................................4 CONNECTION OF AC AND DC WIRING......................4 OPERATION............................6 MODE BUTTON & LED’s .............................6 STATUS & ALARM INDICATORS - LED 5 (green) OFF .................6 DEMAND START ADJUST - LED 5 (green) ON....................7 LOW VOLTS ADJUST - LED 5 (green) FLASHING..................8...

  • Page 2: Introduction

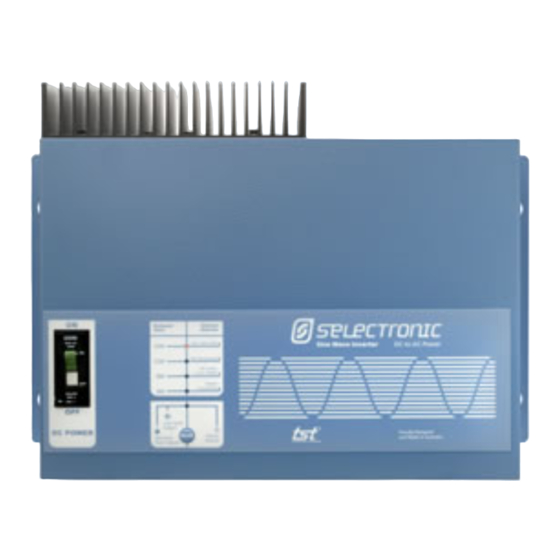

    INTRODUCTION Thank you for your purchase of the Selectronic Sine wave inverter, model WM1000-24V. Your WM1000 is a state-of-the-art high performance TRUE SINE WAVE DC-AC Inverter. Many hours of development time have been invested in the WM1000 so that we can provide you with a reliable high quality inverter.
  • Page 3 300mm 30mm 300mm 160mm DEMAND START STATUS 16 Watts AC Volts ON PO W E R 12 Watts AC Overload 8 Watts DC Volts Low/High 4 Watts TEMP Over load Demand Start Adj ust Al arms O ff Low Volts Adjust DC PO WER Mode PROUDLY DESIGNED &...

  • Page 4: Batteries

    You must have a suitable 24V DC battery bank that is maintained and operated to the battery manufacturer’s recommendation. To ensure operation to WM1000 specification, the battery bank should have a minimum capacity of 300 ampere hours at the 100 hour discharge rate 24V systems (ask your supplier if in doubt).
  • Page 5 Verify that the circuit breaker on the front panel is in the OFF position, LEVER DOWN. Now connect the battery cables. BATTERY POSITIVE (+) BLACK BATTERY NEGATIVE (-) These connections should be tight. If using nuts, bolts and washers, they should be stainless steel. At this point re-check the connections before proceeding any further.

  • Page 6: Operation

    OPERATION STANDBY mode means that the WM1000 is producing pulses of power to sense when an appliance is switched on. This is called the demand start because as soon as the appliance is switched on, the WM1000 will turn on and provide full power to the appliance. The inverter will drop back into standby mode once all loads have been switched off for longer than 10 seconds.

  • Page 7: Demand Start Adjust - Led 5 (Green) On

    LED 1 Stays ON, the inverter has been commanded to provide power to the load (e.g. a light switch has been turned on) so it has gone from SLEEP mode to ON. Once the load has been removed (e.g. the light switch is turned off) the inverter will wait 10 seconds and return to SLEEP mode.

  • Page 8: Low Volts Adjust - Led 5 (Green) Flashing

    LED 1 DEMAND START STATUS 16 Watts AC Volts ON LED 2 12 Watts AC Overload LED 3 8 Watts DC Volts Low/High 4 Watts TEMP Overload LED 4 Demand Start Adjust Alarms LED 5 Low Volts Adjust Mode Button Mode Demand Start Wattage LED 1...

  • Page 9: Handy Hint

    After “23.0 Volts”, the next button press “rolls back” the Low DC Volts Cut-out setting to “20.0 Volts” HANDY HINT It is very important that you become familiar with the functioning of your Inverter. Since most Inverters are not within sight, it is not always easy to know what STATUS your inverter is in. An easy way to determine this is to plug a small child's night-light (neon type) into a power point that is easily visible, or replace any power point with a neon indicator type.

  • Page 10: Fault Finding

    FAULT FINDING 1. INVERTER STAYS ON EVEN WHEN NO APPLIANCE IS BEING USED. Some appliances such as Microwave Cookers or Video Recorders still draw current when not in use. This is to power their displays. This is a common problem known as a "phantom load", but it can be easily overcome with the WM1000.

  • Page 11: System Maintenance

    SYSTEM MAINTENANCE To get the optimum performance from your WM1000 power inverter, particularly under heavy appliance loads, it is essential that the battery bank and the DC wiring all be in good condition. The small amount of time spent on the maintenance tasks below will maximise the reliability of your system.

  • Page 12: Wm1000 Electrical Specifications

    WM1000 ELECTRICAL SPECIFICATIONS INVERTER TYPE PWM Full Bridge power stage, with true sine wave AC output. SELECTRONIC WM1000 INVERTER SPECIFICATIONS ELECTRICAL PARAMETER WM1000 CONDITION Output Power 1,000 watts Max Continuous @ 25 °C Ambient 1,500 watts 1/2 Hour Rating 3,000 watts Max Surge Output Power 900 watts...

  • Page 13: Radio Frequency Interference

    RADIO FREQUENCY INTERFERENCE For many years, Radio Frequency Interference (RFI) has been an annoying problem for owners of Inverters. RFI in a domestic situation may produce noise or interference on a radio or TV receiver. Most of the problems with RFI in a Remote Area Power Supply (RAPS) installation involves AM radio reception.

  • Page 14: Using A Selectronic Keypad With The Wm1000-24

    USING A SELECTRONIC KEYPAD WITH THE WM1000-24 SERIAL PORT WIRING Serial Port Data Cable Wire Colour Function Pin Number RATINGS LABEL White with green stripe Transmit + Green Transmit - Serial Port White with orange stripe Receive + Blue +15V White with blue stripe Orange Receive -...

  • Page 15: Status

    STATUS When you turn on the WM1000 with a keypad installed, the keypad screen will be displayed. Press NEXT DISPLAY twice. Press NEXT twice WM1000 1.00 2000 The inverter STATUS will be displayed. The inverter can have one of three status conditions. When first turned on it will show STANDBY mode.
  • Page 16 AC Load readings (second button press)

  • Page 17: Settings (Keypad Light Blue Keys)

    The AC Amps reading shows the total current drawn from the AC output by AC Amps : 2.5A the appliances connected to the inverter. This reading is also handy for --- Readings --- knowing how much power a particular appliance draws. Pressing the AC LOAD READINGS button again will move back to the previous “AC Volts”...

  • Page 18: Options (Keypad Light Blue Keys)

    OPTIONS (Keypad Light Blue Keys) Press the Keypad OPTIONS Light Blue Key. This display allows access to logged alarms. -END- Press the OPTIONS key to scroll through logged alarms. --Alarms-- If there are no logged alarms, only this screen will be displayed. When in this END ALARMS screen, press any grey keypad key to return you to the STATUS menu.

  • Page 19: Warning

    AC wiring in your system. PRODUCT WARRANTY CONDITIONS Selectronic Australia Pty Ltd warrants your WM1000 inverter to be free from defects in materials and workmanship under normal use and service, for an initial period of five (5) years.
