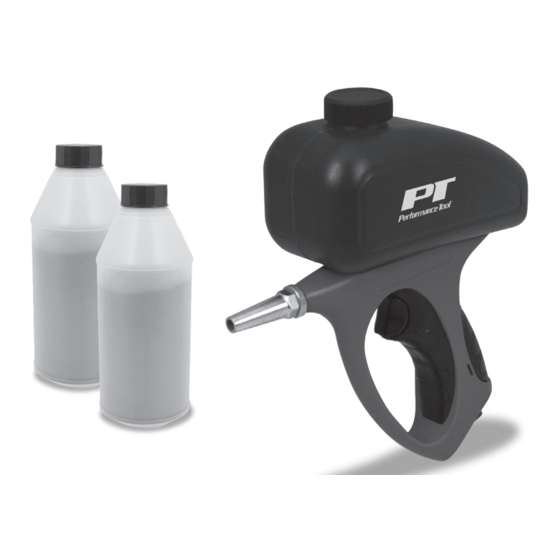

AIR POWERED
ABRASIVE SPOT BLASTER
Item Number M545
SPECIFICATIONS:
Nozzle diameter: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 mm
Hopper capacity: . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 .2 fl . oz . (510 ml)
Maximum air pressure (P .S .I .) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Air consumption (CFM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Air inlet (NPT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4 in .
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 oz . (0 .4 kg)
Specifications are subject to change without notice .
WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND
WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY
RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL
VOID WARRANTY.
Some dust created by sand blasting contains chemicals known to the State of California to cause cancer, birth defects
or other reproductive harm. An example of this type of chemical is lead from lead based paints, Crystalline Silica from
bricks and cement or other masonry, Arsenic and Chromium from chemically treated lumber. Your risk from these
exposures varies, depending on how often you do this type of work. To reduce your exposure: work in a well ven-
tilated area and work with approved safety equipment, such as dusk masks that are specially designed to filter out
microscopic particles.
OWNER'S MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PT M545
Summary of Contents for PT M545
- Page 1 AIR POWERED ABRASIVE SPOT BLASTER Item Number M545 OWNER'S MANUAL SPECIFICATIONS: Nozzle diameter: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 mm Hopper capacity: .
- Page 2 IMPORTANT SAFETY INFORMATION WARNING! READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY. WARNING! Oil tool before each use. 4 to 5 drops of a good grade Air Tool Oil placed in the air inlet is sufficient.
- Page 3 IMPORTANT SAFETY INFORMATION and perform its intended function . Check for alignment and binding of mov- ing parts; any broken parts or mounting fixtures; and any other condition that may affect proper operation . Any part that is damaged should be properly repaired or replaced by a qualified technician .
- Page 4 AIR SUPPLY SETUP IMPORTANT: Apply thread sealant tape to all male threads in your air line for airtight connection . 3. Close the in-line shutoff valve between the compressor and the tool. 4 . Turn on the air compressor according to the manufacturer’s directions and allow it to build up pressure until it cycles off.
- Page 5 WORK AREA SETUP IMPORTANT: To keep the blasting media from accidentally spilling out of the nozzle, do not point the nozzle downward . 1 . Designate a work area that is clean and well-lighted . The work area must not allow access by children or pets to prevent distraction and injury .
- Page 6 OPERATING INSTRUCTIONS CONT. IMPORTANT: Before your work piece is blasted, control the best distance be- tween the gun nozzle and the work piece. It is recommended that you first test the sandblasting pattern and sandblasting intensity on a piece of scrap material to ensure the best result .
- Page 7 EXPANDED PARTS LIST No. Description Qty. No. Description Qty. Gun body ......1 11 Spring .
- Page 8 LIMITED WARRANTY PERFORMANCE TOOL® extends only the following warranties, and only to original retail purchasers . These warranties give specific legal rights . Except where prohibited by local law, the law of the State of Washington governs all warranties and all exclusions and limitations of warranties and remedies . There may be other rights which vary from state to state .
