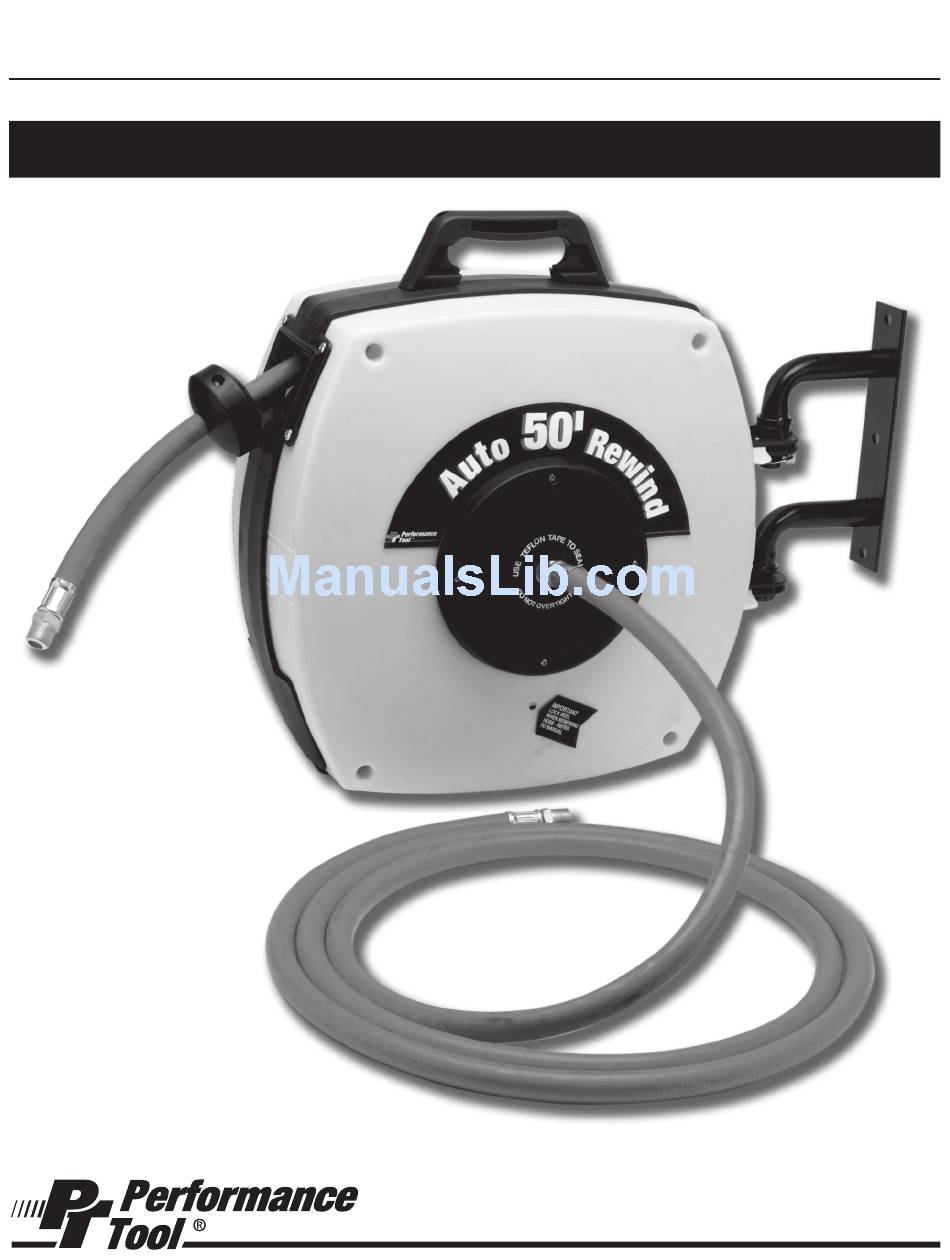

- Page 1 50' Air Hose Reel with Auto Rewind Stock Number M630 OWNER'S MANUAL FOR YOUR SAFETY, please read these instructions carefully and retain them for future use.
- Page 2 SPECIFICATIONS Maximum Working Pressure ............300 PSI Air Inlet ...............3/8 in. - 18 Male NPT Burst Pressure ................900 PSI Hose Dimensions ............50 ft. x 3/8 in. Air Outlet ............3/8 in. - 18 Male NPT Inlet Hose ................ 36 in. Length WARNING: When using tools basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment.
- Page 3 OPERATION CONTINUED hour of continual use. 3. Do not exceed the maximum working air pressure of 300 PSI. 4. Check the air connection for leaks. Operating the Hose Reel. 1. Slowly pull out the Hose (#19). You will hear a clicking noise after each revolution of the drum. 2.
-
Page 4: Assembly Drawing
ASSEMBLY DRAWING Part No. Description Part No. Description Screw Circlips Screw Brass Shaft Tension Plate/Mode Switch Swivel Case Cover Bent Pin Screw Hose Clamp Outer Ring Hose Center Shaft Case Cover Spring Supply Hose Latch Locking Plate Nylon Nuts Mounting Bracket Spring Hub/Spring Reel Assembly Handle...
