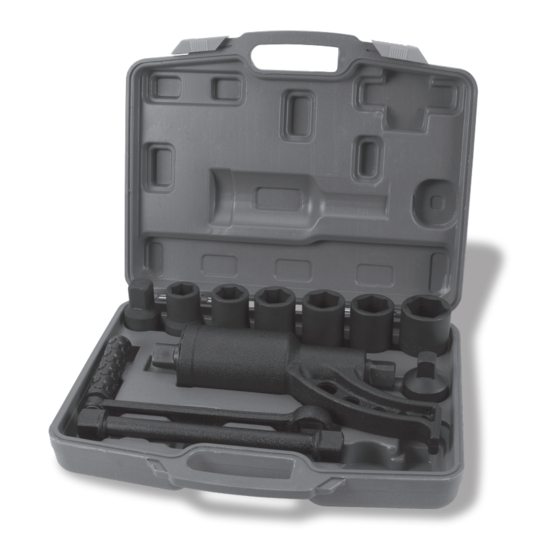

- Page 1 LUG NUT TORQUE MULTIPLIER TOOL SET Item Number M208 OWNER'S MANUAL WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
- Page 2 SPECIFICATIONS: Gear Ratio ..................58:1 Output Torque ................3,688 ft./lb. 6-Point Sockets ....15/16 in.(24 mm), 27 mm, 1-3/16 in. (30 mm), ......1-1/4 in.(32 mm), 33 mm, 1-1/2 in.(38 mm) Square Dr. Adapter .............. 1 in. to 3/4 in. 1 in. Dr. Extension ................2 in. Speed Bar...................10-3/8 in.
- Page 3 TOOL SAFETY CONT. • Keep the torque multiplier clean for best and safest performance. • Keep work area clean and free from unnecessary materials. • Ensure the work area has adaquate lighting. • The vehicle to be worked on should be on level and solid ground only, preferably concrete. •...
- Page 4 OPERATION 1. Assemble the torque multiplier by Fig. 1 connecting the Turn Handle (2) to the Torque Multiplier (1) and placing the correct size 1 in. Dr. Socket (4) on the working end of the tool. See Fig. 1. 2. Slide the socket over the lug nut to be removed as shown in Fig.
