PT W89100 Owner's Manual

CHAIN BREAKER
Stock Number W89100
OWNER'S MANUAL
WARNING: READ, UNDERSTAND AND FOLLOW ALL

INSTRUCTIONS AND WARNINGS BEFORE OPERATING
THIS TOOL. FAILURE TO DO SO MAY RESULT IN
PERSONAL INJURY AND/OR PROPERTY DAMAGE AND
WILL VOID WARRANTY.
SAFETY GUIDELINES / DEFINITIONS
This instruction manual is intended for your benefit. Please read and follow the safety, installation,
maintenance and troubleshooting steps described within to ensure your safety and satisfaction. The
contents of this instruction manual are based upon the latest product information available at the time of
publication. The manufacturer reserves the right to make product changes at any time without notice.
WARNING: Read and understand this entire instruction manual before attempting to assemble,

install, operate or maintain this product. Failure to comply with the instructions may result in serious
personal injury and/or property damage!
The following signal words are used to emphasize safety warnings that must be followed
when using this product:
 DANGER: Indicates an imminently
hazardous situation that, if not avoided, WILL
result in death or serious injury.
 WARNING: Indicates a potentially hazardous
situation that, if not avoided, COULD result in
death or serious injury.
IMPORTANT SAFETY INFORMATION
CAUTION: To prevent personal injury, wear eye protection that
meets ANSI Z87.1 and OSHA standards.
PREVENT EQUIPMENT DAMAGE:
Do not use power tools or pipe extensions with this tool, hand
tighten only.
To ensure longer life clean and lubricate threads before each use.
It may be necessary to grind the rivet head on #520 and larger chains.
WARNING: The warnings, cautions, and instructions discussed
in this instruction manual cannot cover all possible conditions and
situations that may occur. It must be understood by the operator
that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator. Read
and understand all of the instructions provided in the instruction
manual of this product, as well as, any other tool (s) used with
this product.
 CAUTION: Indicates a potentially hazardous
situation that, if not avoided, MAY result in minor
or moderate injury.
 NOTE: Indicates important information,
which if not followed, MAY cause damage to
equipment.

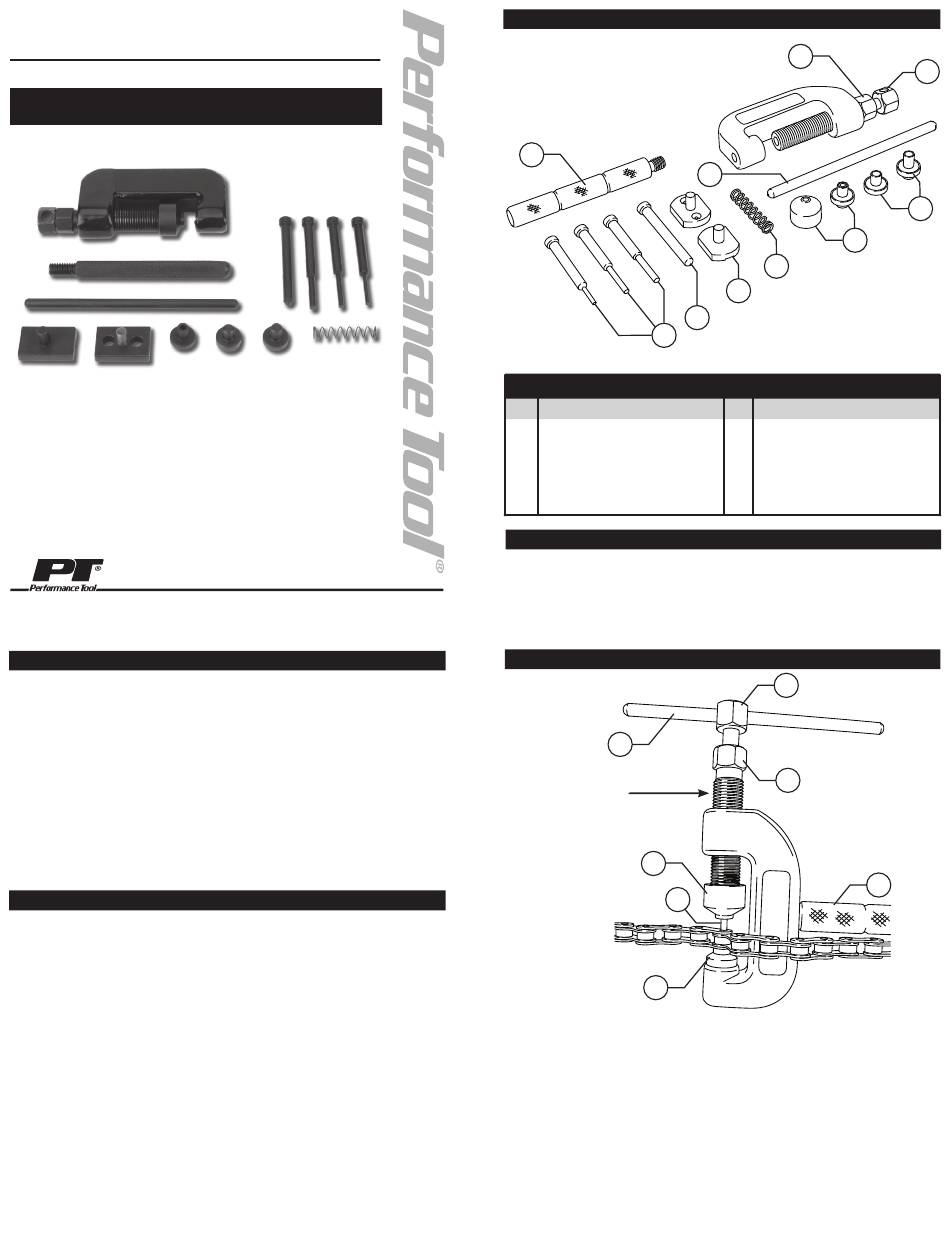

PARTS DIAGRAM
1
PARTS LIST
No. Description
1 Handle .......................... 1
2 Alignment Bolt .............. 1
3 Push Bolt ...................... 1
4 Breaking Tips ............... 3
5 Rivet Tip ....................... 1
APPLICATIONS
This kit will break, press, and rivet most #25 - #35 and #428 - #630
standard and O-ring roller chains.
OPERATION INSTRUCTIONS
NOTE: Apply oil to
the threads on the
alignment bolt.
BREAKING CHAIN:
1. Start by assembling the tool, thread the alignment bolt into the
C-frame.
2. Match the breaking tip that best fits your application.
3. Insert the breaking tip into the spring, and slide them both into
the alignment bolt.
4. Thread the push bolt into the alignment bolt above the tip.
5. Position the tool over the chain, be sure the breaking tip aligns
with the chain pin.
6. Tighten the push bolt by hand using the slide handle or a
14 mm wrench.
7. Pushes the chain pin completely out of the chain and through
the hole in the C-frame.
2
8
7
6
5
4
Qty. No. Description
6 Press Plate ................... 2
7 Spring ........................... 1
8 Lever ............................ 1
9 Guide ............................ 2
10 Anvil ............................. 2
3
8
2
9
4
9
2
3
10
9
Qty.
3
1
4
