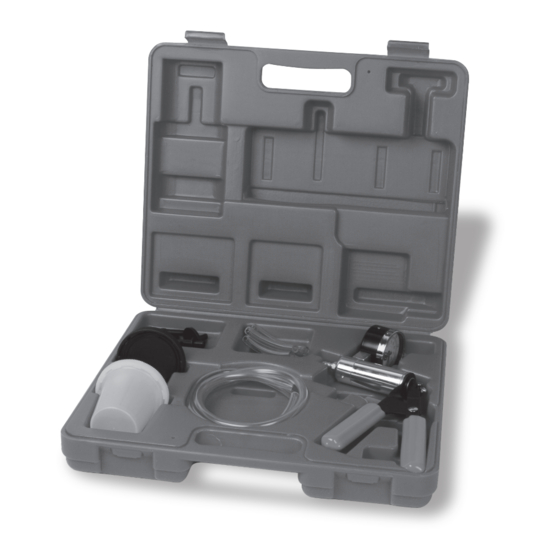

- Page 1 VACUUM PUMP/ BRAKE BLEEDING KIT Item Number W89727 OWNER'S MANUAL WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
- Page 2 SPECIFICATIONS Gauge Size ................2 in. Diameter Gauge Scale ......... 0,-.30/Hg (0,-.76 cm/Hg) Vacuum Net Weight ..................1.8 lb. Specifications are subject to change without notice. SAVE THIS MANUAL You will need this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.
- Page 3 PRODUCT WARNINGS CONT. WARNING! Carbon monoxide is produced while a vehicle’s engine is operating and is deadly in a closed environment. Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the work area may not be vented properly.
- Page 4 OPERATION TO BLEED BRAKES: 1. Attach a 3 in. Vacuum Hose (5) to the bottom of the Jar Lid (2a). (See Figure A.) 2. Attach a 23 in. Vacuum Hose (4) to the top of the Jar Lid (2a) marked “TO PUMP”. Then, attach the other end of the 23 in. Vacuum Hose to the Brake Bleeder Vacuum Pump (1). See Figure A.) 3. Firmly attach the Jar Lid (2a) to the Reservoir Jar (3). (See Figure A.) 4. Remove the cap from the vehicle’s master cylinder, and check to make sure the master cylinder is full of brake fluid. If not full, fill the master cylinder to capacity with clean, new brake fluid. (Use only the kind of brake fluid recommended by the vehicle manufacturer.) NOTE: Determine the proper brake bleeding sequence from your vehicle service manual (i.e., right rear wheel, left rear wheel, right front wheel, left front wheel). 5. Connect the 23 in. Vacuum Hose (4) to the remaining port on the Jar Lid (2a) and then connect the other end to the Brake Bleeder Screw Adapter (9).
- Page 5 OPERATION CONT. NOTE: When necessary, release the vacuum in the tool and empty its Reservoir Jar (3) of old brake fluid. To assist in transport, this set includes a leak- resistant Lid (2b) without hose connections. After the brake fluid is disposed of properly, resume bleeding the brakes.
- Page 6 PARTS DIAGRAM LIMITED WARRANTY PERFORMANCE TOOL® extends only the following warranties, and only to original retail purchasers. These warranties give specific legal rights. Except where prohibited by local law, the law of the State of Washington governs all warranties and all exclusions and limitations of warranties and remedies. There may be other rights which vary from state to state.
