Assembly; Plan Your Setup - FANATEC CSL DD Manual

To get started with using the CSL DD, decide on
whether you will hard-mount the wheel base or use the
CSL Table Clamp (not included), connect your steering
wheel via the Quick Release system, then connect the
CSL DD to your PC or Xbox console (Xbox licensed
steering wheel required) using the included USB cable.
It is important to follow the chapter sequence of this
manual for an effective assembly and setup procedure.
ATTENTION:
type of peripheral devices must be connected to which
port at the rear of the CSL DD. All devices have to be
connected to the CSL DD before powering ON to allow
proper detection and operation. Only use the included
USB cable from your CSL DD package contents to
avoid damages! Ensure there is enough space around
the wheel base to allow for air to circulate. Passive air
circulation is sufficient.
B B
4
4

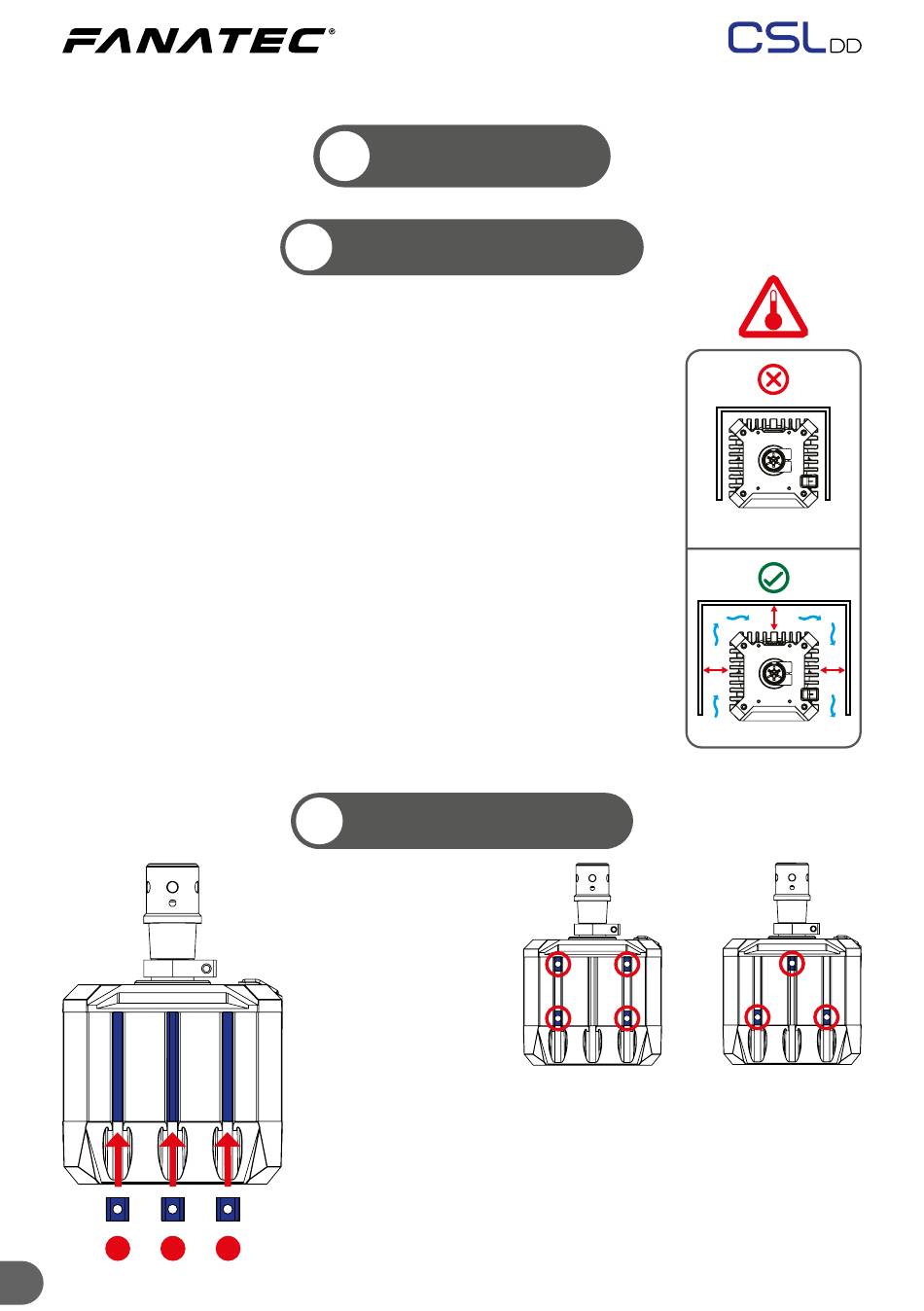

PLAN YOUR SETUP

4.1
See chapter 4.5 "Connections" for which
HARD - MOUNTING
4.2
Insert the T-nuts
into the T-slots
found on the
underside of the
wheel base for
hard-mounting
from the bottom.
B

ASSEMBLY

You can position the T-nuts in
any configuration to suit the
position of the holes on your
hard-mounting surface. The
examples above show optimal
T-nut positions.
