Shifter Calibration - FANATEC CSL DD Manual

NOTE: Every Fanatec steering wheel has a specific button combination in
order to perform a shifter calibration. Please refer to your steering wheel
quick guide in order to see which button combination is required. Shifter
calibration can also be performed in the PC driver. After a firmware update
has been performed, the wheel base will request the shifter calibration
automatically as soon as a non-calibrated H-pattern shifter is connected
and detected. The menu will guide you through the calibration steps as
described below.
In order to enter the H-pattern shifter calibration mode, press the button
combination as described in the quick guide of the attached Fanatec
steering wheel while an H-pattern shifter is connected.
Put the H-pattern shifter lever into the position shown on the steering wheel
display and acknowledge each gear position by pressing the indicated
button for the attached steering wheel to get to the next one.

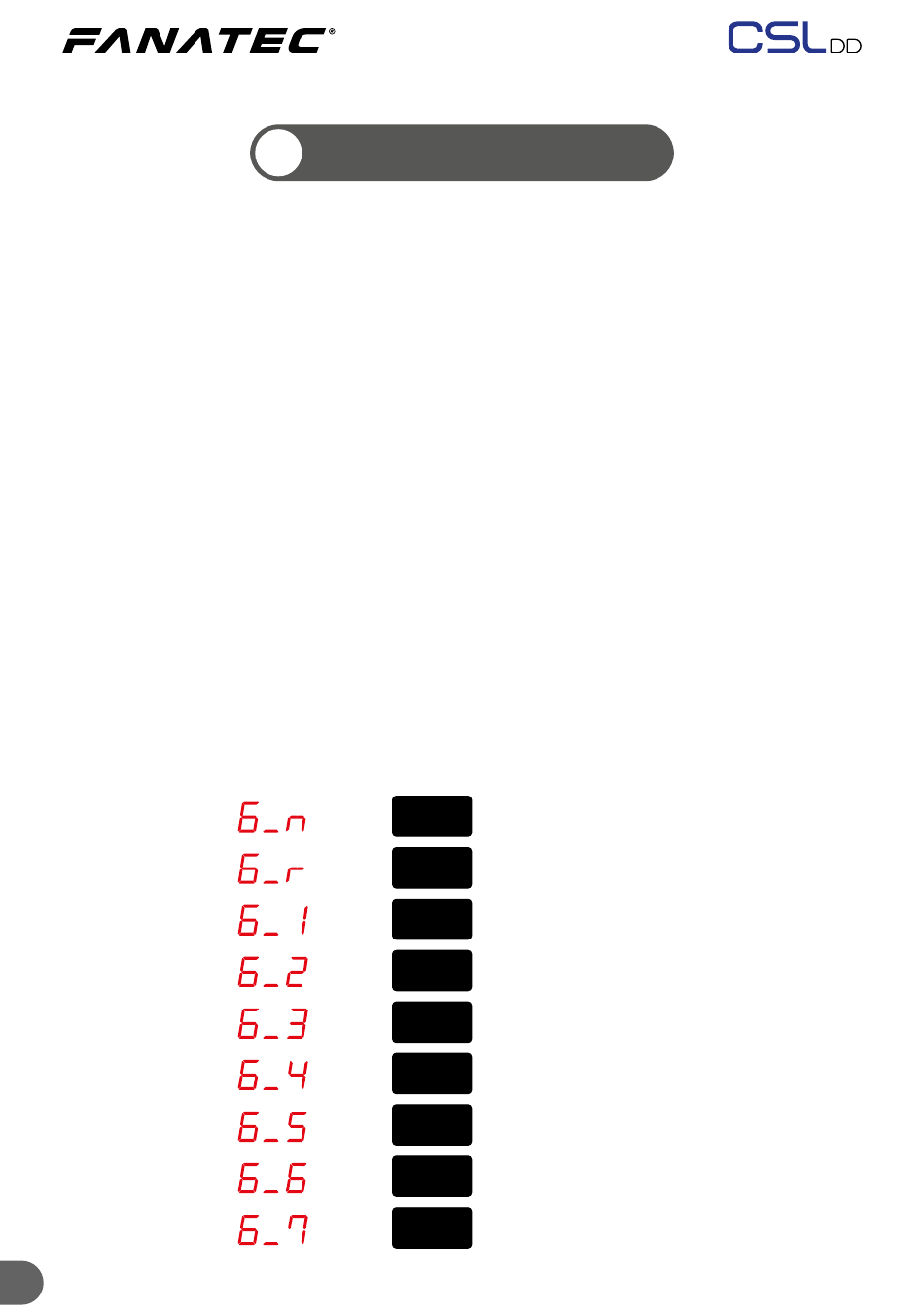

The images shown below are from the LED and OLED displays of Fanatec
steering wheels:
14

SHIFTER CALIBRATION

5.5
7-Segment LED: OLED:
GEAR N
= Neutral Position
SET GEAR
PRESS P
GEAR R
= Reverse Gear
SET GEAR
PRESS P
GEAR 1
= 1st Gear
SET GEAR
PRESS P
GEAR 2
= 2nd Gear
SET GEAR
PRESS P
GEAR 3
= 3rd Gear
SET GEAR
PRESS P
GEAR 4
= 4th Gear
SET GEAR
PRESS P
GEAR 5
= 5th Gear
SET GEAR
PRESS P
GEAR 6
= 6th Gear
SET GEAR
PRESS P
GEAR 7
= 7th Gear
SET GEAR
PRESS P
