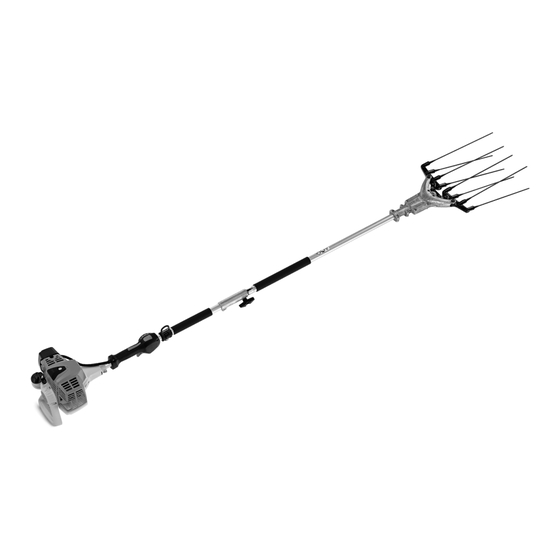

STIHL SP 92 T
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP 92 T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stihl SP 92 T

Summary of Contents for Stihl SP 92 T

  • Page 1 STIHL SP 92 T Instruction Manual...

  • Page 3: Table Of Contents

    English Contents Dear Customer, Guide to Using this Manual Safety Precautions and Working Thank you for choosing a quality engineered STIHL product. Techniques Using the Unit It has been built using modern Assembling the Unit production techniques and comprehensive quality assurance.

  • Page 4: Guide To Using This Manual

    English Engineering improvements Guide to Using this Manual Safety Precautions and Working Techniques STIHL's philosophy is to continually improve all of its products. For this Special safety precau - Pictograms reason we may modify the design, tions must be observed...
  • Page 5 Wear a safety hard hat with chin strap To operate the power tool you must be STIHL recommends the use of genuine where there is a danger of head injuries rested, in good physical condition and STIHL tools and accessories.
  • Page 6 English Fueling Before Starting Keep the handles dry and clean, – free from oil and dirt, for safe control. Check that your power tool is properly Gasoline is an extremely Adjust the harness to suit your assembled and in good condition – refer –...
  • Page 7 Never run proper adjustments or repairs. STIHL the engine indoors or in recommends a STIHL servicing dealer. poorly ventilated loca - Take special care in slippery conditions tions, even if your model on slopes and uneven ground.
  • Page 8 English To reduce the risk of serious or fatal Do not operate your power tool in the Never continue using or attempt to injury from breathing toxic fumes, starting throttle position – engine speed repair damaged or cracked rakes or ensure proper ventilation when working cannot be controlled in this position.

  • Page 9: Using The Unit

    Maintenance and Repairs Use only a spark plug of the type Using the Unit approved by STIHL and make sure it is in good condition – see "Specifications". Service the machine regularly. Do not Inspect the ignition lead (insulation in attempt any maintenance or repair work good condition, secure connection).
  • Page 10 English NOTICE The forkhead (2) performs rapid reciprocating movements during operation. Take care not to damage branches with the forkhead. Do not force branches between the rakes (3). Working Technique Pay attention to the tree's limb structure during operation: NOTICE Use the following working technique to obtain best results and good Comb the lower section (A) from the...

  • Page 11: Assembling The Unit

    English Alternative check: The drive tube is Assembling the Unit correctly positioned when it completely closes the slot in the gearbox’s clamp (short arrows). Mounting the Gearbox The plug may come out of the drive tube when you pull off the cap. Push it back into the drive tube as far as stop.

  • Page 12: Fuel

    STIHL MotoMix 16 mm STIHL recommends the use of STIHL MotoMix. This ready-to-use fuel mix contains no benzol or lead, has a high octane rating and ensures that you always use the right mix ratio.

  • Page 13: Fueling

    Engine Oil can quickly make the fuel mix unusable. If you mix the fuel yourself, use only STIHL MotoMix may be stored for up to STIHL two-stroke engine oil or another 2 years without any problems. high-performance engine oil in...

  • Page 14: Fitting The Harness

    Filling up with fuel Take care not to spill fuel while fueling and do not overfill the tank. STIHL recommends you use the STIHL filler nozzle for fuel (special accessory). Fill up with fuel. Press down the bar on the Close the tank cap.

  • Page 15: Backpack Carrying System

    English Backpack Carrying System Starting / Stopping the Engine Controls Adjust the hip belt (4), the two harness straps (5) and the support strap (6). The backpack carrying system distributes the load evenly over the shoulders, back and hips. Throttle trigger lockout Put the backpack carrying system Throttle trigger (1) on your back and adjust it as...
  • Page 16 English to switch off the ignition. The ignition is Cold engine (cold start) switched on again automatically after the engine stops. Function of Throttle Set Wheel Travel of throttle trigger can be limited with the set wheel: Turn throttle set wheel in direction of –...
  • Page 17 English Running engine stalls in cold start position g or under acceleration. Continue cranking in cold start position g until the engine runs. If the engine does not start Check that all settings are correct. Check that there is fuel in the tank and refuel if necessary.

  • Page 18: Transporting The Unit

    When correctly installed, the red line (7) drive tube. (arrow point) must be flush with the end of the coupling sleeve. STIHL power tool models with the letter NOTICE Tighten down the wing screw (1) T in their designations have a split drive firmly.

  • Page 19: Operating Instructions

    English Operating Instructions Replacing the Air Filter Adjusting the Carburetor Do not remove the filter cover or replace During break-in period the air filter as long as there is no noticeable loss of power. A factory-new machine should not be If there is a noticeable loss of engine run at high revs (full throttle off load) for the first three tank fillings.

  • Page 20: Spark Plug

    – or sooner if the Press the boot firmly onto the spark electrodes are badly eroded. Install plug. only suppressed spark plugs of the type approved by STIHL – see "Specifications". Clean dirty spark plug. Check electrode gap (A) and Removing the spark plug readjust if necessary –...

  • Page 21: Engine Running Behavior

    If the following adjustments do not is dry – this helps prevent the produce the required result, have your STIHL recommends that maintenance carburetor diaphragms sticking servicing dealer repair the machine. and repair work be carried out only by together.
  • Page 22 English Adjusting the Throttle Cable Broken, badly worn and missing tines must be replaced immediately with new tines. 16 mm Depress the throttle trigger lockout (1) and the throttle trigger (2) as far as stop and hold them in that position. Apply only sufficient pressure to hold the levers against their stops.

  • Page 23: Inspections And Maintenance By Dealer

    English Antivibration Element Inspections and Maintenance by Dealer Maintenance Work STIHL recommends that you have servicing and repair work carried out exclusively by an authorized STIHL servicing dealer. Fuel Pickup Body in Tank A vibration-absorbing rubber element is installed between the powerhead and the shaft.

  • Page 24: Maintenance And Care

    English Maintenance and Care The following intervals apply to normal operating conditions only. If your daily work - ing time is longer or operating conditions are difficult (very dusty work area, etc.), shorten the specified intervals accordingly. Visual inspection (condition, leaks) Complete machine Clean Replace any damaged parts...
  • Page 25 Visual inspection Tines Replace Check tightness Safety labels Replace Only if there is a noticeable loss of engine power STIHL recommends an authorized STIHL servicing dealer. see chapter "Inspections and Maintenance by Dealer", section "Antivibration Elements" SP 92 TC...

  • Page 26: Minimize Wear And Avoid Damage

    English servicing dealer. STIHL dealers are Spark plug – Minimize Wear and Avoid regularly given the opportunity to attend Components of antivibration system Damage – training courses and are supplied with the necessary technical information. Observing the instructions in this manual...

  • Page 27: Main Parts

    English Main Parts Rakes Tines Forkhead Gearbox Front Drive Tube Handle Hoses Coupling Sleeve Wing screw 10 Rear Drive Tube 11 Carrying Ring 12 Throttle Trigger 13 Set Wheel 14 Stop Switch 15 Throttle Trigger Lockout 16 Spark Plug Boot 17 Air Filter Cover 18 Machine Support 19 Manual Fuel Pump...

  • Page 28: Specifications

    Chemical substances. Features Ignition System For information on compliance with the REACH regulation (EC) No. 1907/2006 Electronic magneto ignition Convenience features see www.stihl.com/reach. Split boom (drive tube) Spark plug (resistor Exhaust Emissions type): NGK CMR6H Noise and Vibration Data Electrode gap: 0.5 mm...

  • Page 29: Maintenance And Repairs

    Take the product, replacement parts which have been accessories and packaging to an conforms to the relevant provisions of approved by STIHL for this power tool or approved disposal site for environment- Directives 2011/65/EU, 2006/42/EC and are technically identical. Only use high- friendly recycling.
  • Page 30 English Done at Waiblingen, 03.12.2018 ANDREAS STIHL AG & Co. KG Thomas Elsner Director Product Management and Services SP 92 TC...
  • Page 32 0458-423-0121-C englisch www.stihl.com *04584230121C* 0458-423-0121-C...
