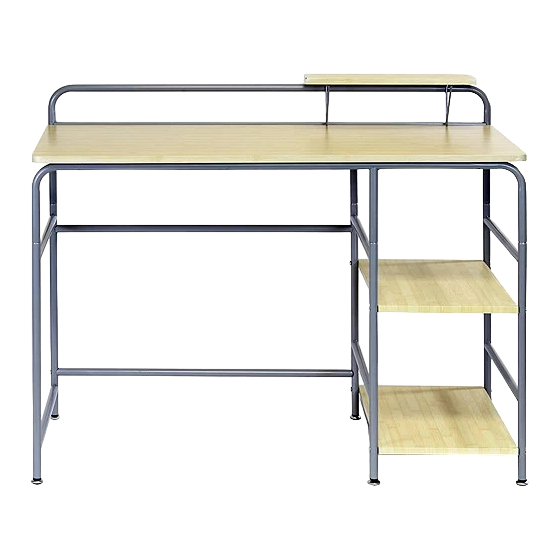

Furinno FNBL-22042 Assembly Instruction

No Hardware List Qty
1 Screw 4pcs
2 Short Screw 9pcs
3 Medium Screw 2pcs
4pcs
Long Screw
4
5 Screw/Dowel Nut 8pcs
6 Adjustable Leg 6pcs
B
J
J
A
E
I
G
F
I
USEFUL HINTS BEFORE YOU START:
1. Read each step carefully before starting.
2. It is important that each step is performed in correct order to avoid difficulties.
3. Identify, sort and count the parts before assembly.
4. Assemble your furniture on packaging cardboard to prevent scratch or damage.
5. Clean the product with mild cleanser using soft damped cloth. Do not use harsh or abrasive cleanser.
6. Using uncompatible hardware might cause damage to product.
No Parts List
A Top Panel
B Small Top Panel
C Shelf Panel
D Upper Front Support
E Upper Back Support
F Left Support Frame
G Center Support Frame
H Right Support Frame
I Round Pole
J Panel Support
D
H
C
C
STEP 1
Qty
Attach Panel Support(J)and
Small Top Panel(B)with Screw(1).
1pcs
1pcs
2pcs
(1)X 4pcs
1pcs
1pcs
J
1pcs
B
1pcs
1pcs
2pcs
2pcs
STEP 3
3.1 Attach Upper Front Support(D),Upper Back Support(E),Left Support Frame(F),
Center Support Frame(G),Right Support Frame(H) with Short Screw(2).
3.2 Attach Round Pole(I),Left Support Frame(F)and Center Support Frame(G) with
Long Screw(4).
(4)X 4pcs
STEP 2
Attach Center Support Frame(G),Right Support Frame(H)
and Shelf Panel(C)with Screw/Dowel Nut(5),as shown.
J
G
(5)X 8pcs
D
E
(2)X 6pcs
H
G
I
F
I
C
H
C
