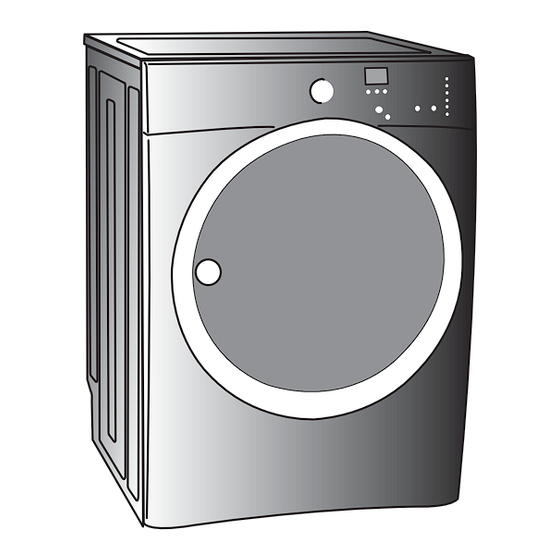

Electrolux EIMED55I Use And Care Manual

Iq-touch front-load gas & electric dryer
Hide thumbs

Advertisement

Use & Care Guide
IQ-Touch™ Front-Load Gas & Electric Dryer
Guide d'utilisation et d'entretien
MC
Sécheuse à gaz et à l'électricité à chargement frontal IQ-Touch
Guía de Uso y Cuidado
MC
Secadora eléctrica y a gas de carga frontal IQ-Touch
137263500 A (0907)

Advertisement

loading

  Related Manuals for Electrolux EIMED55I

  Summary of Contents for Electrolux EIMED55I

  • Page 1 Use & Care Guide IQ-Touch™ Front-Load Gas & Electric Dryer Guide d’utilisation et d’entretien Sécheuse à gaz et à l’électricité à chargement frontal IQ-Touch Guía de Uso y Cuidado Secadora eléctrica y a gas de carga frontal IQ-Touch 137263500 A (0907)
  • Page 2: Table Of Contents

    Please read and save this guide Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide is part of our commitment to customer satisfaction and product quality throughout the life of your new appliance.
  • Page 3: Safety

    Care Guide are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance. 240 v Electric Dryer 240 v Electric Dryer 10-30R 10-30R 3-wire...
  • Page 4 Safety WARNING To reduce the risk of fi re, electrical shock, or injury to persons when using this dryer, comply with the basic warnings listed below. Failure to comply with these warnings could result in serious personal injuries. You can be killed or seriously injured if you don’t follow these Important Safety Instructions: PREVENT FIRE •...
  • Page 5: Safety

    3-prong outlet. The third grounding prong must never be removed. Never ground the dryer to a gas pipe. Do not use an extension cord or an adaptor plug. • ALWAYS disconnect the dryer from the electrical supply before attempting any service or clean- ing.
  • Page 6: Features

    Features Touch-2-Open™ Cycle Selector 3 Drum Vanes (2 tumbling) (1 mixing) Theater-Style, Luxury-Lighting™ System Large Surface Moisture Sensor Door Strike Exhaust Channel Outlet Gentle Tumble™ Drying System Adjustable Leveling Legs Lint Filter LCD Display Stacking Kit for Mounting on Matching Washer Control Lock Dual Stage, Wide-Angle...
  • Page 7: Operating Instructions

    At times there may be a thumping or rolling sound when the dryer starts. This may happen if the dryer has not been in use for a period of time, or after a heavy load has remained in the dryer drum for an extended period, creating a temporary fl...
  • Page 8: Operating Your Dryer

    2. Check that the lint fi lter is clean and in place. 3. Load the dryer and close the door. Load items loosely. The average wet load will fi ll the drum 1/3 to 1/2 full. Items need room to tumble freely for even drying and less wrin- kling.
  • Page 9 5 seconds. 5. Start the cycle. Close the door and press start to begin the cycle. The dryer will not operate with the door open. To interrupt the cycle, press pause; press start to resume the cycle. Press cancel to stop the cycle.
  • Page 10: Cycle Selection

    Auto Dry cycles take the guesswork out of select- ing the correct drying time for each load. Moisture sensing bars at the back of the dryer drum sense the moisture level of the load as it tumbles through the heated air. With Auto Dry cycles, the load will automatically be dried at the selected temperature to the desired dryness level.
  • Page 11 Operating Instructions AUTO DRY CYCLES, continued NORMAL Select this cycle to dry everyday fabrics including cottons and sheets with high, medium/high or medium heat. All dryness levels except max and all options except add steam (on select models) are available with this Auto Dry cycle. TOWELS Select this cycle to dry heavy loads such as towels and bath mats with high or medium/high heat.
  • Page 12 TOUCH UP Select this cycle to remove wrinkles from clean, dry items that may have been left in the dryer, stored in crowded closets or drawers or unpacked from luggage. The load will tumble for 15 minutes on low heat.
  • Page 13: Drying Temperature

    Drying Temperature The appropriate drying temperature will auto- matically be indicated for the cycle selected. For best results Follow the fabric care label instructions on items to be dried. To change the preset temperature, press the tem- perature button to scroll to the desired setting. To protect your fabrics, not all temperatures are available with every cycle.
  • Page 14: Dryness Level

    Operating Instructions Dryness Level (Auto Dry) The appropriate dryness level will automatically be indicated when the cycle is selected. To change the preset level, press the dryness but- ton to scroll to the degree of dryness desired. To protect your fabrics, not all dryness levels are available with every cycle.
  • Page 15: Options

    Options Suitable options will automatically be indicated when the cycle is selected. To add options, press the corresponding options buttons to illuminate the selections desired. To delete options, press the options buttons again and the indi- cator lights will turn off. To protect your fabrics, not all options are available with every cycle.
  • Page 16: Options

    Operating Instructions Options, continued ADD STEAM (steam models only) The add steam option injects steam into the cloth- ing prior to cool down to reduce wrinkling, ironing and static cling. WRINKLE RELEASE (non-steam models only) Select the wrinkle release option if the dried load might not be removed promptly at the end of the cycle.
  • Page 17: Dryer Features

    To lock the controls between cycles, press and hold the control lock button for 5 seconds. Re- peat to unlock the controls when you are ready to operate the dryer. Use this feature to reduce the likelihood of accidental operation by children. STATUS DISPLAY The estimated total cycle time will be displayed when the cycle is selected.
  • Page 18: Dryer Settings Chart

    Operating Instructions Dryer Settings Chart These Temperature, Dryness levels and Options are available with the following cycles: Estimated Cycle Duration** Temperature high medium/high medium Dryness normal less damp Options damp alert extended tumble add steam (select models) wrinkle release (select models)
  • Page 19: Care & Cleaning

    IMPORTANT Clean lint screen after every load. IMPORTANT Do not store or place laundry products on top of dryer at any time. They can damage the fi nish or controls.
  • Page 20: Common Drying Problems

    Shrinking • Temperature too high. • Overdrying. Wrinkling • Overloading. • Leaving items in dryer after cycle ends. Isolated wet • Low water line pressure in spots on fabrics home is not suffi cient to after completed atomize incoming water...
  • Page 21: Solutions To Common Problems

    Solutions to Common Problems Service Prevention Checklist Before calling for service, review this list. It may save both time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this dryer. OCCURRENCE POSSIBLE CAUSE Dryer does not start.
  • Page 22: Warranty Information

    Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions.
