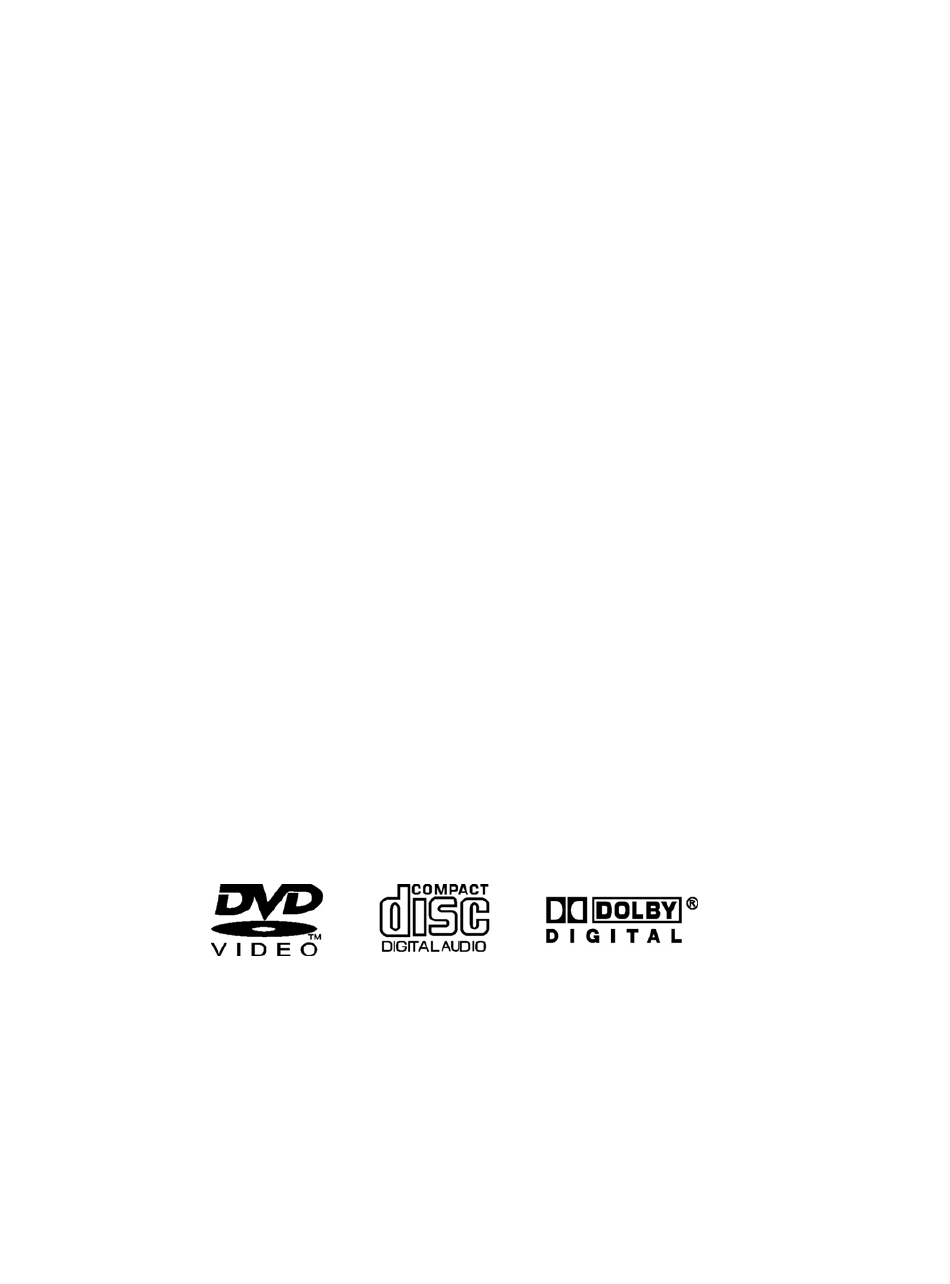

- Page 1 8.5” TFT LCD Monitor with DVD Player ZE0800D User manual Please read it carefully before you operate this player...
-
Page 2: Table Of Contents
Welcome Thank you for buying the Roof Mount LCD Monitor with DVD player. Please read this manual carefully before using the Roof Mount LCD Monitor with DVD player in order to get the most out of all the features and functions. - Page 3 or servicing of the display by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock or other hazards. Be careful not to drain the car battery while using the unit with the car engine stopped.
-
Page 4: Dvd Player Features
FCC NOTICE: This device complies with part 15 of the FCC Rules. Operation is subject of the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation. - Page 5 DVD VIDEO FEATURES This unit provides the following functions in addition to high image quality and sound quality of DVD video: Multi-sound Function DVD audio can store up to 8 languages for one film. This allows for the selection of language of ones preference. Multi-angle Function A DVD video that is filmed from multiple angle which allows you choosing to view from different perspectives.
- Page 6 DISC PLAYBACK This DVD player can play the following formats. About CD Extra discs A CD Extra disc is a disc in which a total of two sessions have been recorded. The first session is Audio session and the second session is the Data session.
- Page 7 DISPLAY 1. Reset button: Press with a pencil or other narrow-tipped tool to rest the player. 2. Dome Light: Provides an interior light for the vehicle. : Press to eject the disc. Press to play or pause a disc. : Press to move cursor left or skip the previous chapter on DVD or track on CD;...
-
Page 8: Setting Up Your Dvd Player
In the FMT mode, press to turn on or off FM transmit Hint: Please slide the switch of the player back to the FMT position. In the FMM mode, press to switch audio output mode speaker or IR headphone. Hint: Please slide the switch of the player back to the FMM position. 13. - Page 9 result in damage to the player. Installing your DVD player Note: Do not attempt to install or service your player by yourself. Installation or servicing of the player by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock or other hazards.
- Page 10 6. Reconnect the terminal of the battery. Cutting the headliner and mounting the bracket. STEP1: LOCATE THE MOUNTING POSITION Using masking tape or chalk, mark the side-to-side centerline of the headliner. Next, mark forward to aft position, which locates the display as far forward as possible, but rearward of the front seats.
-
Page 11: Using Your Dvd Player
Notes: Do remember to connect the red wire to the ACC of the ignition switch. Or the battery charge might be drained off prematurely. If the fuse is opened, first make sure that the cables have not caused a short circuit, and then replace the old fuse with a new one of the same ratings. - Page 12 To close the DVD player Swing the LCD panel upward until you hear the lock click. close Make sure that cords and other items do not get caught in the panel CAUTION when you close it. For your safety, be sure to close the LCD panel when not use it. Using remote control 1.
- Page 13 4.Aim the IR Remote Control directly at the DVD player, then press any button. Use the remote control only inside the vehicle Use the IR Remote Control no further than five feet( 3 meter) Note from the sensor. Direct sunlight or very bright light reduces sensitivity to the remote signal commands.
-
Page 14: Troubleshooting
Troubleshooting If operation freezes, the screen goes black or the unit should otherwise not function properly, try turning the unit on and off. If the unit does not respond, press the reset switch on the Front Panel. Problem Cause Solution Reinsert the disc with the Disc inserted incorrectly label side up(facing the... -
Page 15: Specification
Problem Cause Solution 1. This is the characteristics of LCD display in low 1. The equipment locates temperature, it will The picture on at a low temperature restore to normal the screen is area. brightness after starting dark. 2. Brightness is set too the display for few low. -
Page 16: Maintaining
Maintaining Handling discs To keep a disc clean, do not touch the play side (non-label side) of the disc. Do not attach paper or tape to the disc. Keep the disc away from direct sunlight or heat source. Store the disc in a disc case after playback. Cleaning discs Before playback, wipe the disc outwards from the center with clean cloth. -
Page 17: Operation Flow
z-Series CPM/Remote Control Reference Table DVD PLAYER INTERNAL GAME AUXILIARY 1 EJECT Ejects the Disc PLAY/PAUSE Play or pause playback of the internal Does nothing. Does nothing. DVD PLAYER In Menu Mode: Navigation UP In Playback Mode: Fast Forward through all In FMT/FMM control mode : toggles In FMT/FMM control mode : toggles steps for each button press. - Page 18 Page Rosen Entertainment Systems All-In-One DVD Overhead System FCC ID:TI7ZE0800D NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
