Rosen XR1020U Owner's Manual

10.1” vehicle entertainment system
Hide thumbs Also See for XR1020U:
Table of Contents

Advertisement

Quick Links

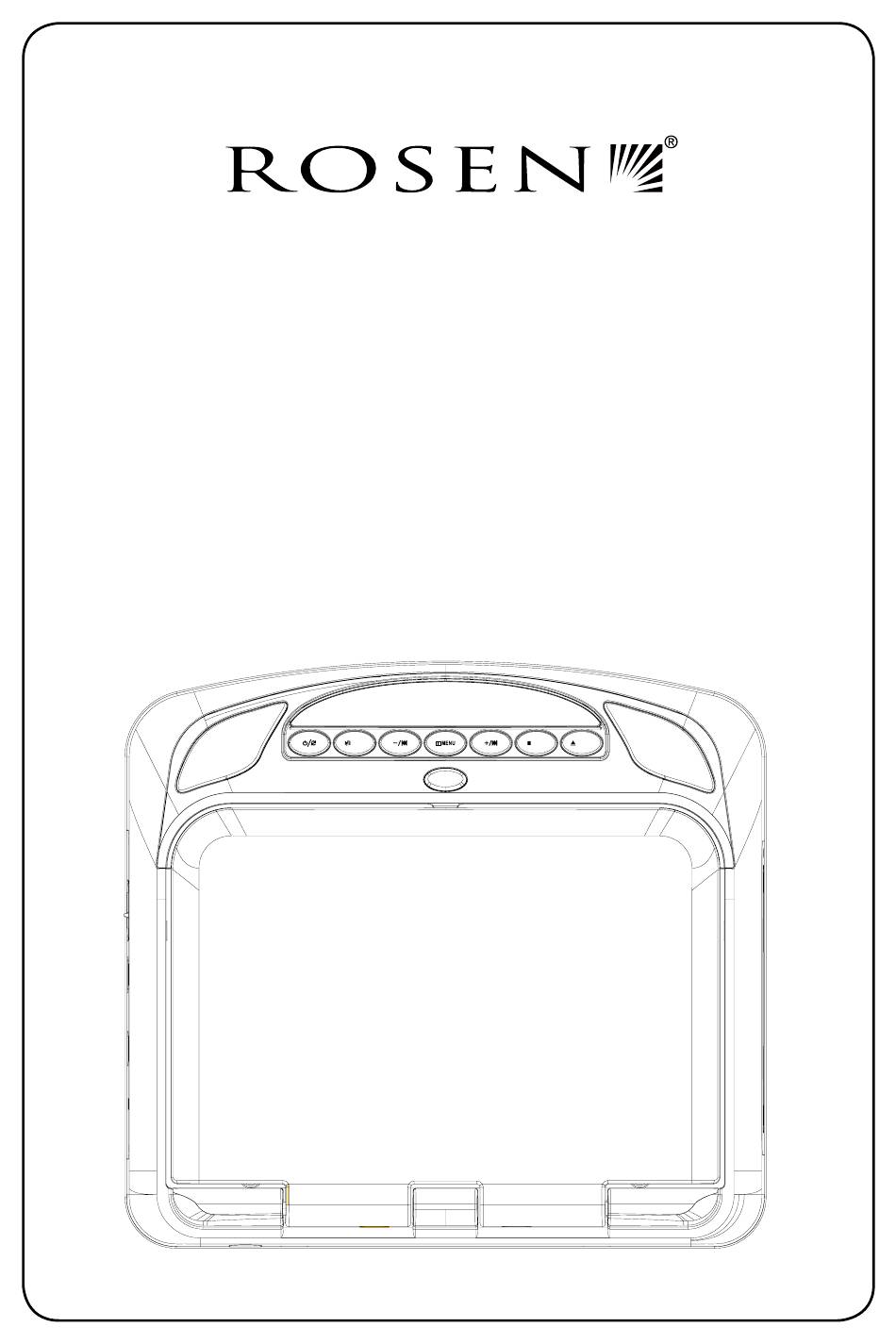

XR1020U
10.1" Vehicle Entertainment System
Owners Manual
PLA Y
STOP
EJECT
PUSH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR1020U and is the answer not in the manual?

Questions and answers

Related Manuals for Rosen XR1020U

Summary of Contents for Rosen XR1020U

  • Page 1 XR1020U 10.1” Vehicle Entertainment System Owners Manual PLA Y STOP EJECT PUSH...
  • Page 3 Warnings • Do not use any solvents or cleaning materials when cleaning the video monitor. • Do not use any abrasive cleaners, they may scratch the screen. • Use only a lightly dampened lint free cloth to wipe the screen if it is dirty. •...

  • Page 4: Safety Precaution

    Congratulations Congratulations on your purchase of your new Vehicle Entertainment System. The XR1020U has been designed to provide passengers with unlimited content options delivering smiles for many miles. Please read the directions that follow to familiarize yourself with the product to ensure that you obtain the best results from your system.

  • Page 5: Table Of Contents

    Table of Contents Features ......................6 Controls and indicators diagram(front view) ........7 Controls and indicators diagram(side view) ......... 9 Remote Control Operation ...............10 Remote Control functions .................11 Turning the unit on or off ................14 Source menu ....................16 System Menu Setting and Adjustments ..........18 Playing DVDs and Audio Discs ..............25 Playing USB Devices ..................25 Playing MP3 Discs ..................26...

  • Page 6: Features

    • 2 Channel Wireless IR Headphone Transmitter w/ 2 Headphones Included M1/M2 Operation: • Allows for 2 x XR1020U Systems to be installed in the same vehicle with independent control and independent audio playback NOTE: *Smartphone connectivity requires the appropriate adapter for your device and an HDMI cable.

  • Page 7: Controls And Indicators Diagram(Front View)

    Controls and Indicators Diagram (front view) PLA Y STOP EJECT 1. POWER/SOURCE ( ) Button This button is used to turn the system on/off or call out the source menu. 2. Play/Pause (u/II ) Button This button is used to start playback of a disc or pause a disc and function as enter source mode.
  • Page 8 Controls and Indicators Diagram (front view) - Continued 6. STOP (n) Button -Press the STOP button once: Stops playback. - Pressing the PLAY button again will resume normal playback from where movie was stopped. - Press the STOP button twice and then press the PLAY button to start playback from the beginning of the DVD.

  • Page 9: Controls And Indicators Diagram(Side View)

    Controls and Indicators Diagram (side view) 1. DVD Disc Insertion Slot For loading and removing discs. the unit must be ON and in the DVD source mode. Insert a disc with label side facing up. Note: The disc slot indicator is red when a disc is inserted and green when the disc slot is empty.

  • Page 10: Remote Control Operation

    Remote Control Operation Battery Replacement 1. Remove the battery cover. 2. Insert two AAA batteries into the battery holder. Be sure to observe the correct polarity. 3. Reinstall the battery cover back into the Remote Control until it locks in place.

  • Page 11: Remote Control Functions

    Remote Control Functions...
  • Page 12 Remote Control Functions (Continued) Function control is available on the unit and the Remote Control. ** Function not available in this model. 1. POWER* Press this button to turn the unit ON and OFF. 2. SOURCE* Press to display the Source OSD for DVD, USB, AV, GAME, HDMI 1 and HDMI 2 or SmartStream.
  • Page 13 Remote Control Functions (Continued) 14. SCAN FORWARD ( Press to search in a forward direction. Press repeatedly to change the search speed from 2, 4, 8, 20 times and normal speed. 15. PREVIOUS ( Press to return to the previous chapter or track. 16.
  • Page 14 Remote Control Functions (Continued) 24. AUDIO Press to display and select audio language in DVD mode. Each time this button is pressed, the language changes. 25. PIX ( Picture Select ) This button is used to make picture adjustments. Use the UP or DOWN direction buttons to select BRIGHTNESS, CONTRAST, COLOR, TINT, or RESET.

  • Page 15: Turning The Unit On Or Off

    Turning the unit on or off 1. Push in the Screen Release button to unlock the LCD screen. The screen will drop down slightly. 2. Pivot the screen downward until a comfortable viewing angle is reached. The hinge friction will hold the screen in position while the system is in use. 3.

  • Page 16: Source Menu

    Source Menu The System is capable of accessing six source inputs. To select or change a source, press the source button on the front panel or the Source button on the remote control. The source OSD will appear on the screen as shown in the figure below. Use the ＋ or － cursor buttons on the front panel or the p or q cursor buttons on the remote control to highlight a source.
  • Page 17 Source Menu (Continued) HDMI 1 & HDMI 2 These Source inputs allow the user to enjoy high-definition digital images and high-quality sound by connecting an HD device such as a Blu-Ray player or Smartphone with an HDMI output to the system. Connect your HDMI/MHL device with an optional HDMI cable. Smartphones and Tablets require the appropriate adapter for your smart device.

  • Page 18: System Menu Setting And Adjustments

    System Menu Setting and Adjustments The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-screen display or set up PARENTAL controls to control DVD playback for children. Using the System Menu Press the System Menu button on the remote.

  • Page 19: Picture Control

    System Menu Setting and Adjustments (Continued) If without a Remote control user can use the local key to select the function setting. a.) Menu = Long press to call up the setup menu screen information or return/exit the system menu = Short press function as Down Key u /II Play = Enter Key...
  • Page 20 SYSTEM SYSTEM PLAYER PLAYER SMART STREAM SMART STREAM MOVE ADJUST EXIT MENU SMART STREAM SMART STREAM MOVE ADJUST EXIT MOVE SELECT EXIT MENU MENU System Menu Setting and Adjustments (Continued) 88.1MHz 91.1MHz 94.1MHz PICTURE PICTURE 88.3MHz 91.3MHz 94.3MHz 88.5MHz 91.5MHz 94.5MHz AUDIO AUDIO...

  • Page 21: Screen Saver

    DEFAULT DVD PICTURE MONITOR MODE AUDIO RESET SYSTEM PLAYER System Menu Setting and Adjustments (Continued) SMART STREAM MOVE ADJUST EXIT MENU BRIGHTNESS RESET CONTRAST PICTURE PICTURE COLOR The RESET functions allows all settings options to AUDIO AUDIO TINT LANGUAGE ENGLISH be reset to factory settings.
  • Page 22 TV SYSTEM NTSC TV SYSTEM NTSC SCREEN SAVER SCREEN SAVER PICTURE PICTURE PICTURE PICTURE ASPECT RATIO 16:9 ASPECT RATIO 16:9 AUDIO AUDIO AUDIO PASSWORD SETUP AUDIO PASSWORD SETUP SYSTEM RATING SYSTEM ADULT SYSTEM SYSTEM RATING ADULT System Menu Setting and Adjustments (Continued) LAST MEMORY PLAYER PLAYER...

  • Page 23: Audio Language

    System Menu Setting and Adjustments (Continued) LAST MEMORY The last memory function allows DVD playback TV SYSTEM TV SYSTEM NTSC NTSC to begin from the point when playback was last SCREEN SAVER SCREEN SAVER PICTURE PICTURE ASPECT RATIO 16:9 ASPECT RATIO 16:9 stopped.
  • Page 24 System Menu Setting and Adjustments (Continued) FMM MODULATION(ON/OFF) This setting allows you to turn the FMM modulator ON or OFF. FM MODULATION FMM CHANNEL PICTURE PICTURE FMM CHANNEL AUDIO AUDIO This setting allows you to select the frequency. SYSTEM SYSTEM PLAYER PLAYER The unit has a 100 channel built-in wireless...

  • Page 25: Playing Dvds And Audio Discs

    Playing DVDs and Audio Discs Playing DVDs When a disc is loaded. Press the DISPLAY button on the remote control to display the status banner. The status banner includes the disc title, chapter audio language , subtitle & angle. Title Selection: Some DVDs contain more than one title (e.g. sitcoms, collections, etc.) Press the numeric (0-9) buttons to initiate a change of chapter title selection.

  • Page 26: Playing Mp3 Discs

    Playing DVDs and Audio Discs (Continued) Use the cursor keys p q t or u and OK to navigate the on screen menus. The USB port can play AUDIO, PHOTO, VIDEO . The following formats are supported: Audio • • •...

  • Page 27: Dvd Basics

    DVD Basics To get the optimum use out of the DVD Player, please read the following: DVD Region Code The DVD player is preset to a region code at the factory depending on where the DVD player is sold. A DVD from a different region cannot be played in this unit and the unit will display "WRONG REGION”.

  • Page 28: Hdmi Input

    HDMI Input HDMI An HDMI Input is located on the side of the unit (HDMI 1) or through optional accessory HDH12 when connected to the hidden HDMI 2 input. These inputs can be used for devices with HDMI output ports (such as Smartphones, Tablets and HDMI SmartTV devices) and may require the purchase of an HDMI cable and HDMI adapter which is available from your device manufacturer.

  • Page 29: Hdmi Devices

    HDMI Devices HDMI Devices **: Amazon FireTV Stick streaming device: • www.amazon.com and search for FireTV Stick Chromecast media streaming device: • www.google.com and search for Chromecast Roku HDMI streaming device: • http://www.roku.com/products/compare MHL devices**: Roku MHL Streaming Stick • http://www.roku.com/roku-ready/models* Note: does not require external power but must be purchased with the Roku remote control...

  • Page 30: Usb Inputs

    USB Inputs USB Port (User Accessible) The USB port provides two functions: Media port for USB thumb drives: Charging: • The USB port will not charge a portable device when the unit is turned OFF. • The USB port will charge a portable device in the following modes: •...

  • Page 31: Wireless Headphones & Wireless Game

    Wireless Headphones & Wireless Game WIRELESS HEADPHONES The XR1020U includes a built-in infrared transmitter for use with the supplied wireless headphones. The headphone volume is adjusted using the controls on each headset. Any number of wireless headphones may be used but they must be used within a line of sight from the transmitter, as infrared transmissions, like visible light, travel only in a straight line.

  • Page 32: Troubleshooting

    Troubleshooting PROBLEM SOLUTION IR remote inoperative • Verify that the battery in the remote is fresh. • Verify that the remote sensor eye is not obstructed. Disc won't play • Insert a disc with the label side facing the viewer. •...

  • Page 33: Specifications

    Specifcaitons Type TFT Active Matrix LCD Resolution 1024 (RGB) (X3) x 600 Pixels 1,843,200 Operation Temperature 32 ~ 113º F (0 ~ 45º C) Storage Temperature -4 ~ 149º F (-10 ~ 65º C) Backlit life 20,000 Hours Video Display System NTSC / PAL / AUTO Video Output 1.0Vp-p @ 75 ohms...

  • Page 34: Warranty

    12 MONTH LIMITED WARRANTY Applies to Rosen model XR1020U V O X X E L E C T R O N I C S C O R P. ( t h e C o m p a n y ) w a r r a n t s t o t h e o r i g i n a l...
  • Page 36 www.voxxelectronics.com © 2019 Voxx Electronics Corp.,180 Marcus Blvd Hauppauge, NY 11788 700067...
