Fountain Components
Item Description
Williamsburg
Pineapple
Fountain - Finial
Williamsburg
Pineapple
Fountain -
Pump House
Williamsburg
Pineapple
Fountain -
Pump Door
Williamsburg
Pineapple
2-Tier Fountain
- Large Bowl
Williamsburg
Pineapple
2-Tier Fountain
- Large Pedestal
Fountain Information:
• Two people are recommended for the installation of this fountain!
• This fountain holds approximately 5 gallons of water.
• This fountain uses a small fountain cover: FTNCOV-SM
• Compatible with #7 Refill Device
• A special stopper is required to use the refill kit for this fountain.
Pump Information:
OEMPF140 - 140 GPH Pump (6 ft cord length)
Tools Required:
Bubble Level
Screwdriver
Component
Quantity
Item #
FT-133A
1
FT-133B
1
FT-133C
1
FT-132F
1
FT-132G
1

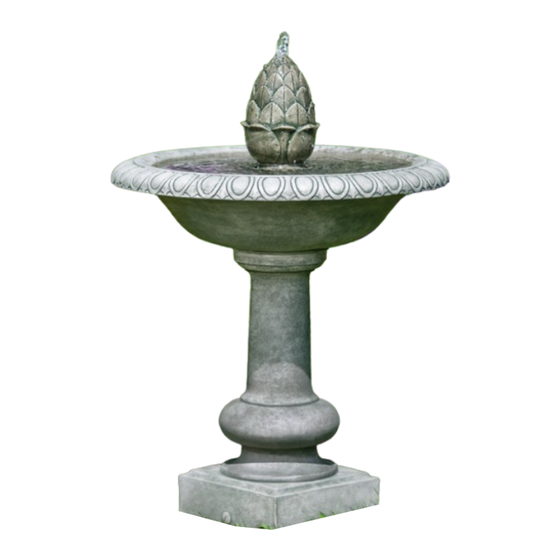

FT-133 Williamsburg
Pineapple Fountain
Assembly Instructions
Pump Kit Parts List
Component
PK140 pump
(use only large adapter)
#7 Stopper
Approx. 6" length of 1/2" black
non-kink tubing
Approx. 1" length of 5/8" clear vinyl
Approx. 1" length of 1/2" CPVC pipe
Hose Clamps
Proudly
MADE IN USA
Quantity
1
1
1
1
tubing
1
Wedges
2
1
rev 4/8/2020
Advertisement
Table of Contents
Related Manuals for Campania International Williamsburg Pineapple FT-133
Summary of Contents for Campania International Williamsburg Pineapple FT-133
- Page 1 FT-133 Williamsburg Pineapple Fountain Assembly Instructions Fountain Information: • Two people are recommended for the installation of this fountain! • This fountain holds approximately 5 gallons of water. • This fountain uses a small fountain cover: FTNCOV-SM • Compatible with #7 Refill Device •...
- Page 2 FT-133 Williamsburg Pineapple Fountain Assembly Instructions Two people are recommended for the installation of this fountain! Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin.
- Page 3 FT-133 Williamsburg Pineapple Fountain Assembly Instructions Step 7 - Insert the CPVC end of the tubing assembly into the CPVC coupling protruding from the bottom of the finial (FT-133A). Step 8 - Center the finial (FT-133A) on the pump cover (FT-133B). 8a - N OTE: Rotating the finial as it is lowered into position will help to ensure that the tubing does not get pinched.
- Page 4 Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - E nsure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
