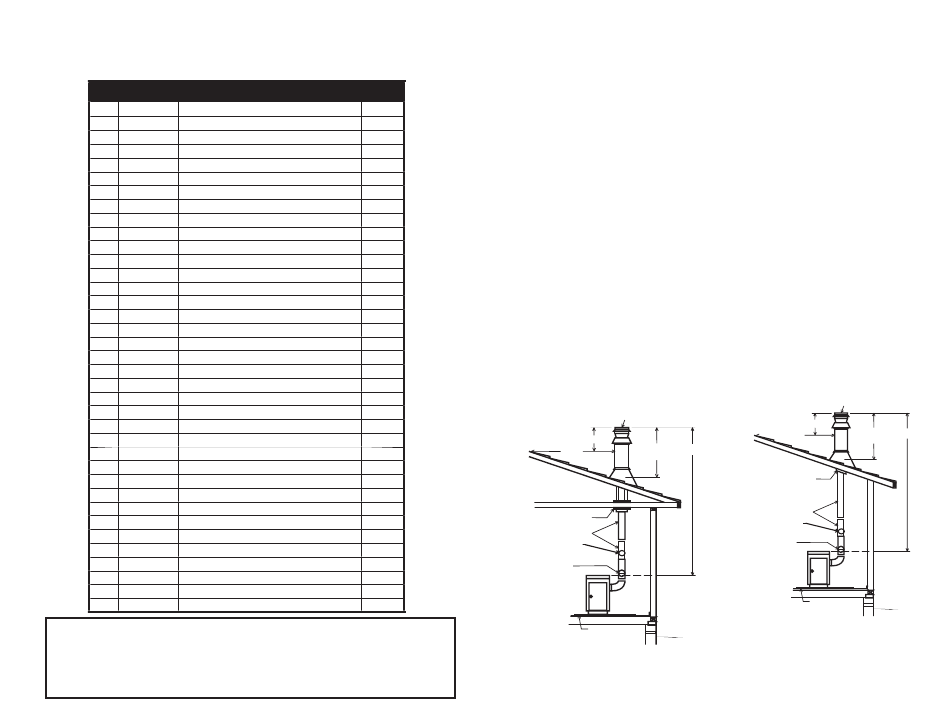

REPAIR PARTS LIST - MODEL VG820E
AUTOMATIC WOOD BURNING CIRCULATOR
INTERIOR
Key Part No.
1 67859 Weldment, Base
2 22030 Shield, Second Heat
3 22110 Shield, Heat
4 68619 Assy., Heat Jacket
5 88032 Gasket, Flue Collar
6 40246 Collar, Flue
7 22090 Curtain, Smoke
8 22171 Clip, Smoke Curtain
9 40075 Frame, Draft Damper
10 23476 Damper, Draft Control
11 25550 Pin, Draft Damper
12 83890 Clip, Push
13 40100 Liner, Front/Back
14 40076 Fire, Grate
15 40132 Retainer, Brick
16 89066 Firebrick (4.5" x 9" x 1.25")
17 891940 Assy., Feed Door
- 40199 Feed Door -
18 88033 Rope Gasket, 3/8"
19 891941 Assy., Ash Door
- 40289 Ash Door -
20 88033 Rope Gasket, 3/8"
21 83872 Pin, Door -
22 23441 Pin, Door -
23 83102 Bolt, 1/4-20 x 1.25" CS, Slotted Hd.
24 40056 Wheel, Draft
25 83415 Nut, 1/4-20 Jam
26 25201 Shield, Flame
27 83250 Kep Nut, 1/4-20
28 40509 Handle, Door
29 89523 Handle, Drop Wood
30 22434 Latch, Door (2-Step)
31 83045 Washer, Flat
32 83273 Washer, Spacer
33 22108 Latch, Door
34 23474 Liner, Top
35 67444 Ash Pan
IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST
BE REPLACED USING ORIGINAL MANUFACTURERS PARTS
PURCHASED THROUGH YOUR DEALER OR DIRECTLY
FROM THE APPLIANCE MANUFACTURER.
USE OF THIRD PARTY COMPONENTS WILL VOID THE
WARRANTY.
16
Description Qty.
1
1
(Included w/ 67859)
1
(Included w/ 67859)
1
1
1
1
2
1
1
1
1
3
2
2
10
1
(Complete)
-
Casting Only
3.75 ft.
1
(Complete)
-
Casting Only
2.42 ft.
1
Short
1
Long
2
2
2
2
4
2
1
1
2
1
1
(Door Stop)
1
1
CHIMNEY CONNECTION
DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING ANOTHER
APPLIANCE.
Two basic types of chimneys are approved
for use with solid fuel: Factory-built and ma-
sonry. Factory-built chimney must comply
with UL103HT standard.
Do not expect your stove or furnace to create
draft . Draft is not a function of the appliance.
Draft is purely a function of the chimney.
Modern stoves and furnaces are much more
air-tight and effi cient than those of the
past and, therefore require greater draft . A
minimum of .05, measured in water column
(gauges to measure chimney draft are readily
available at stove shops and are economical
to purchase or rent) is required for proper
draft ing to prevent back-puffi ng, smoke
spillage, and to maximize performance.
Chimneys perform two functions - one of
which is apparent: Th e chimney provides
a means for exhausting smoke and fl ue
gases resulting from combustion of the fuel.
Secondarily, though, the chimney provides
CHIMNEY CAP MANDATORY
2 FT MIN.
3 FT.
11 FT. MIN.
10 FT.
MIN.
REFER TO CHIMNEY
MANUFACTURERS PARTS
AND INSTRUCTIONS
PIPE
DAMPER
BAROMETRIC
DRAFT CONTROL
(OPTIONAL)
FLOOR PROTECTOR
FIG. 5
"Draft " which allows oxygen to be continu-
ously introduced into the appliance, so that
proper combustion is possible. As of April 1,
1987, all heaters and furnaces manufactured
by United States Stove Company should be
installed using a factory built chimney that
meets the "Type HT" requirement of UL 103
(when a factory - built chimney is used).
Your smoke pipe should be assembled in
such a way that the male section (crimped
end) of the pipe faces down. Attach each
of the sections to one another with three
equidistant metal screws. Seal with furnace
cement.
IMPORTANT
*Size the chimney to the fl ue outlet on the
stove. (6" outlet = 6" I.D. chimney)
*Avoid using elbows except as necessary
(they reduce draft ).
*Make sure all horizontal runs of connec-
tor pipe go up hill (1/4" elevation for each
horizontal foot).
CHIMNEY CAP MANDATORY
2 FT MIN.
3 FT. 11 FT. MIN.
10 FT.
MIN.
REFER TO CHIMNEY
MANUFACTURERS PARTS
AND INSTRUCTIONS
PIPE
DAMPER
BAROMETRIC
DRAFT CONTROL
(OPTIONAL)
FLOOR PROTECTOR
FIG. 6
Cathedral Ceiling - Chimney
Cap Mandatory
