OleumTech WIO RM1K Wiring Diagrams

WIO® System Wiring Diagrams for Radio Kit RM1K

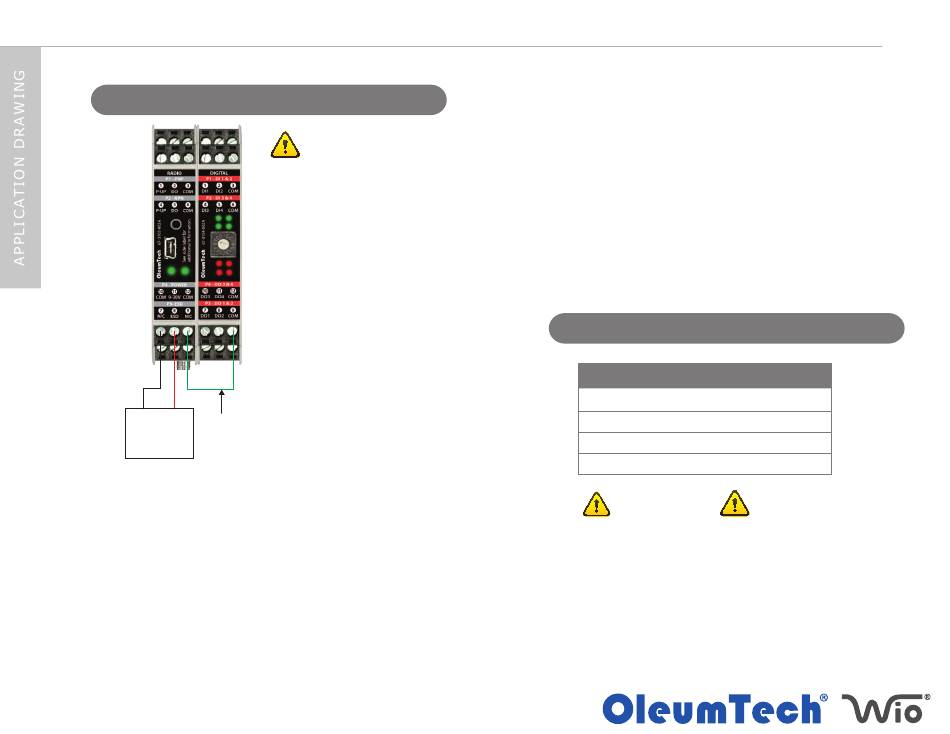

1. Isolation vs Non-Isolation

- +
9-30 V
1.661.716.5100 support@prosoft-technology.com
©2019 OleumTech Corporation. OleumTech and WIO are registered trademarks of OleumTech Corporation. Other trademarks are the property of their respective owners.
Specifications, design, and product descriptions subject to change without notice. Doc ID: AD-1089-001_A
If isolation is required, then separate
power sources are required for
Radio Module and I/O Module(s).
If isolation is not required, a jumper
is required to make common with
Radio Module's power supply to
to one of I/O Module's COM pin.
Jumper required if using
a single power source.

2. Power Consumption

TYPE POWER CONSUMPTION
RADIO 35 mA @ 12 Vdc AVG
DIGITAL 26 mA @ 12 Vdc MAX
4-20 mA 83 mA @ 12 Vdc MAX
0-10 V 58 mA @ 12 Vdc MAX
All inputs and outputs Always disconnect power
on I/O Modules provide when attaching or detaching
field isolation. I/O Module(s) to or from
Please wire accordingly. DataRail to avoid damage.
(10% Duty Cycle)
