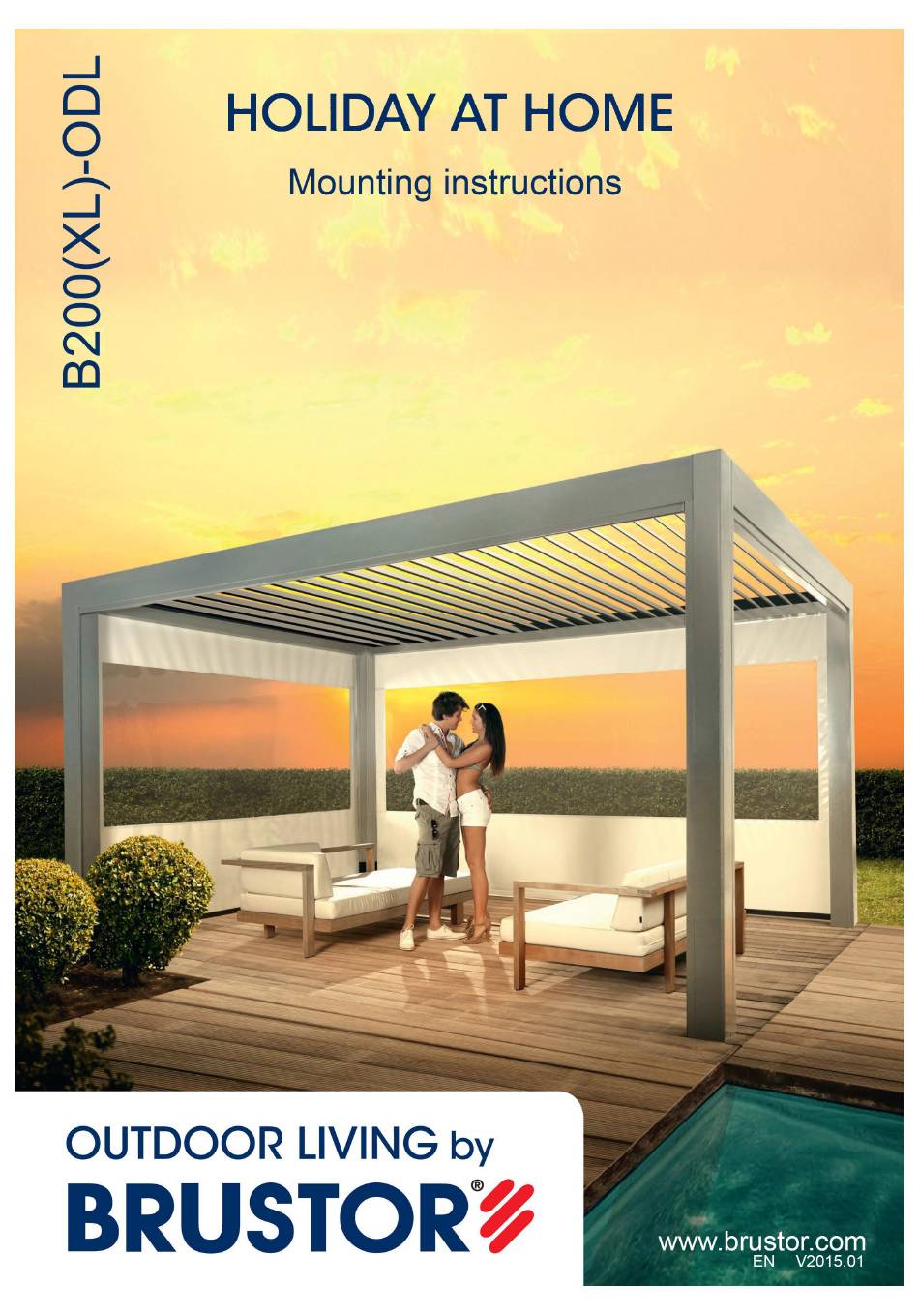

BRUSTOR Holiday at Home B200-ODL Mounting Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Holiday at Home B200-ODL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BRUSTOR Holiday at Home B200-ODL

Summary of Contents for BRUSTOR Holiday at Home B200-ODL

  • Page 2 0. OVERVIEW 1. PLACING THE SUPPORTS 1.a Stand Alone 1.b Wall Fixation 2. PLACING THE VERTICAL POLES 3. MOUNTING THE CROSS MEMBERS 4. ADJUSTING THE CONSTRUCTION 4.a Levenless 4.b Perpendicularity 5. LOUVRE MOTOR 5.a Motorcable 5.b Programming the Receiver 6. LOUVRES 6.a Placing the Louvres 6.b Louvres with LED-strip 6.c Connecting Louvremotor...
  • Page 3 SCREEN L2 SCREEN L1 STAND ALONE SCREEN W2 SCREEN L2 SCREEN L1 SCREEN W1 WALL FIXATION TYPE L WALL FIXATION TYPE W...
  • Page 4 0. OVERVIEW › Check if all parts are present, and check if the dimensions are as ordered Assembled motor (premounted) Horizontal coupling profile Louvres Screen Rain gutter Louvre holder + cover Reinforcement Corner drain Top cover vertical pole Drain (Tube D50 not delivered) Vertical pole Motor control unit...
  • Page 5 1. PLACING THE SUPPORTS › Place the supports as indicated on the following drawings. › Check the diagonals, the difference should not be more than 5mm. STAND ALONE SINGLE W - 90MM W - 90MM W - 10MM Pole Support Ground Anchor Floorplate 20x20 COUPLE...
  • Page 6 WALL FIXATION › Use the dimensions mentioned above, but add 5mm next to the wall. SINGLE 125MM W - 250MM 125MM COUPLE 50MM 125MM W - 250MM 50MM OL-B200(XL)-03...
  • Page 7 2. PLACING THE VERTICAL POLES › Remove the Pole supports from the vertical poles, also remove the premounted screenguides, and the reinforcement (1). › Attach the pole supports or floorplates onto the floor. › Check the dimenions from the previous page again, before fastening the bolts. ›...
  • Page 8 › Remove the rollertubes from the screens. › On both ends of the screen, screw the two upper screws in the profile (6.3x50) (1 screw if coupled). 10 a 15 › Do not fasten them completely, leave 10 to 15mm free space. gasket ›...
  • Page 9 6.3 x 50 COUPLE 4.2 x 19 M6 x 40 gasket cover Coupling profile gasket gasket Motorcable 2 x DIN 912 M8x25 4.2 x 19 + silicone Walladapter Coverplate couple pole wall fixation Walladapter OL-B200(XL)-06...
  • Page 10 DOOR PROFILE › Remove the rollertubes from the screens. › Foresee 1 screw (6.3x50) + 1 shredded rod M6 x 40 at the side of the door profile. › Do not fasten them completely, leave 10 to 15mm free space. ›...
  • Page 11 4 ADJUSTING THE CONSTRUCTION LEVELNESS › Check the top side of the construction with a laser or a level. › If necessary, adjust the construction. › Move the vertical poles upward untill the top side of the contruction is completely level. ›...
  • Page 12 5. LOUVRE MOTOR MOTORCABLE SINGLE › Place the cable of the louvremotor as shown on the following drawing. › Depending on the position of the motor to the electrical supply, choose option 1 or 2. › If necessary, the cable can be diverted inside the vertical poles (nr 3). optie 2 optie 1 ›...

  • Page 13: Programming The Receiver

    PROGRAMMING THE RECEIVER › Connect the louvremotor and the power as shown on the instructions at the end of this manual. › Open the wiring box labelled “ MOTOR” and program the receiver and handset as shown underneath. KOPPEL SINGLE 6 LOUVRES PREPARING AND PLACING THE LOUVRES ›...
  • Page 14 Flat B200XL - White - RGB B200XL - DOUBLE ROOF OL-B200(XL)-11...
  • Page 15 › Equip every axle with a plastic bearing. › Place the louvres in the gaps in the louvreholder. › The longest axles should be mounted in the highest louvreholder. Louvreholder Louvreholder › Place two or three louvres on both sides. ›...
  • Page 16 COUPLE / ROOF IN 2 PARTS › Place the louvre as described above. › Put the cable in the louvreholder. First along the L-side, than further along the W-side. › Pass the cables of the LED-strip(s), through a hole in the vertical pole. Louvreholder Louvreholder ›...
  • Page 17 CONNECTING LOUVREMOTOR › Place the third louvreholder on top of the long axles, and move the motor until it is possible to make a connection. B200 B200XL SW13 CONNECTING THE LOUVRES › Turn the louvres one by one with the small axle upward, and hook it in the third louvreholder. ›...
  • Page 18 7. SCREENS 7.a ROLLERTUBES › If there are 3 or 4 screens, start with the screenswith the longest distance from the electrical supply. (number 1 on the following diagram) 220V › The rollertube support can be installed in 2 different ways depending on the type of fabric, see drawing underneath. ›...

  • Page 19: Motor Cable

    COUPLE / DOORPROFILE › Fix the rollertube support on the vertical poles as shown underneath. › Do “not” use a ring on the side where the rollertube support is installed. › Two rollertube supports can be installed at each pole. ›...
  • Page 20 › After installing all the motors, the vertical pole with the electrical supply should look like this: › The number of cables depend on the numbers of screens that have been installed. › The connection of the cables will be explained later on. Cable louvremotor Cable screenmotor (nr 2 on previous page) Cable screenmotor (nr1 on previous page)
  • Page 21 9 SCREEN GUIDES GUIDES LEADRAIL › While mounting the plastic guides, place the leadrail on top of the screen. › Place the plastic guides in the groove under the rollertube. › Slide them completely to the left and right side of the screen, and secure them with two screws. ›...

  • Page 22: Screen Cover

    10 ADJUSTING THE ENDPOSITIONS › See manual of the remote control. › When there are multiple screens: › Connect one of the motors to the elektricity grid (230V). › Adjust the endpositions and assign the remote control to the motor. ›...
  • Page 23 › Fix the plastic blocks on the mainhousing (3) V2014 V2013 When V2013 is re-used --> Slide the plastic blocks some cm to the middle › Hook the cover in the screen housing, and close it on the left and right side of the cover. (4) click ›...
  • Page 24 12. PLACING THE RAIN GUTTERS 12.a CORNER PIECE › On the corners where a drain will be mounted, cut away the end of the corner piece. › If possible, place the drain on the opposite side of the louvremotor. 1drain / 15m². ›...
  • Page 25 12.b RAIN GUTTER › Lay a continuous strip of silicones on to the corner piece, as shown below. › Place the rain gutters from above on to the silicones. › Close the roof so the louvres and the motor will not get in the way. ›...

  • Page 26: Rain Sensor

    13.b REINFORCEMENT › Place a reinforcement in every vertical pole. › When a rainsensor will be mounted in the vertical pole, slide the reinforcement 140mm down. › Replace one bolt with a longer model (M6x25) to lock the cover mainhousing. sw10 M6x12 Lock Cover...
  • Page 27 Cover 3x DIN7982 4.2x19 2x DIN7982 4.2x19 gasket COUPLE / DOOR PROFILE SINGLE 3x DIN7982 4.2x19 gasket WALL FIXATION SINGLE 4x DIN7982 4.2x19 COVER WALL FIXATION COUPLE 3x DIN7982 4.2x19 13.e SEALING 60MM + EXTENSION RAIN GUTTER › Place the sealing on top of the screens (B200 Motor side). ›...

  • Page 28: Warranty Certificate

    14. WARRANTY CERTIFICATE OL-B200(XL)-25...

This manual is also suitable for:

Holiday at home b200xl-odl
