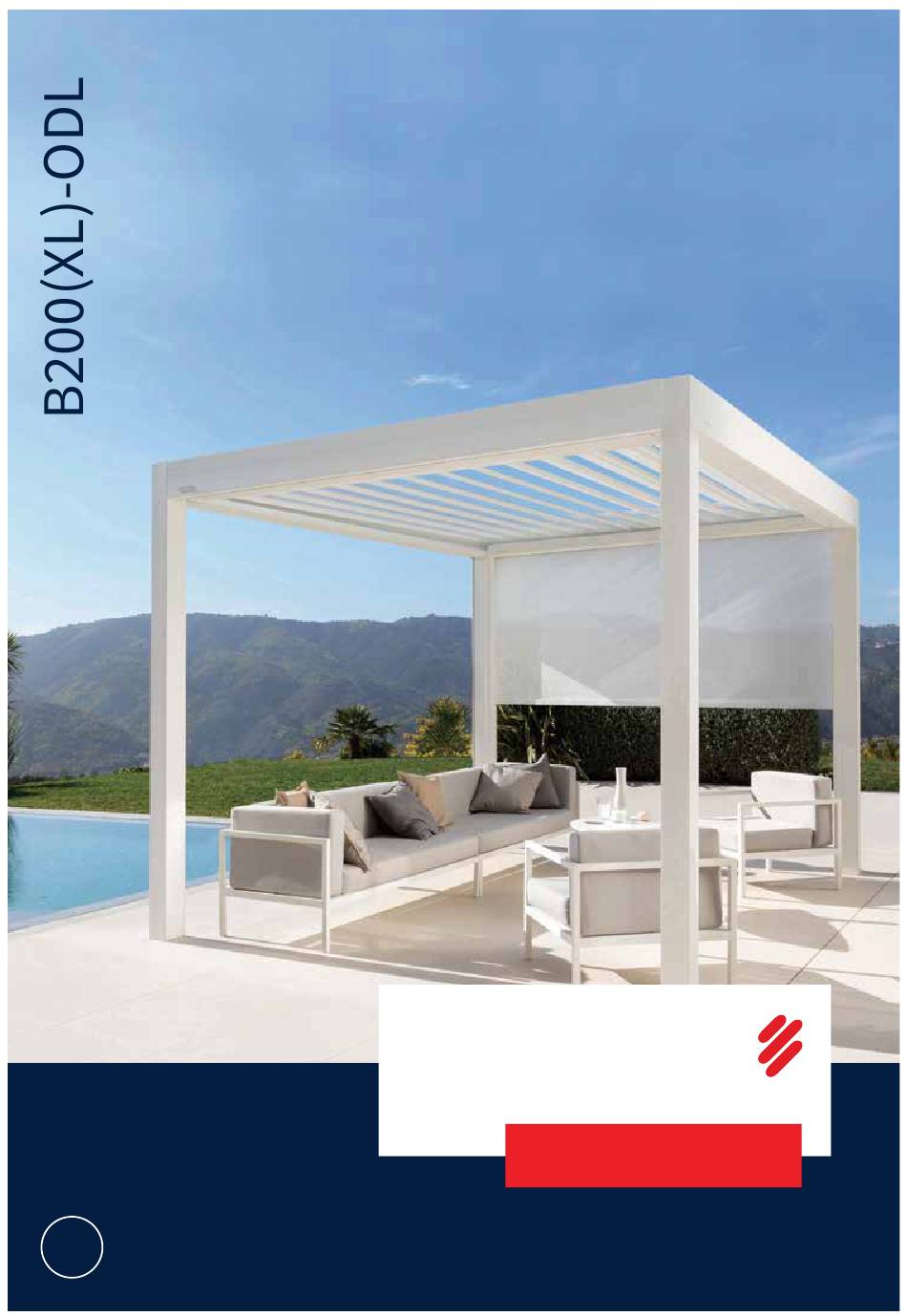

- Page 1 HOLIDAY AT HOME Mounting instructions BRUSTOR ® OUTDOOR SUN SYSTEMS www.brustor.com V2018 03...
- Page 2 0. OVERVIEW 1. PLACING THE SUPPORTS 1.a Stand Alone 1.b Wall Fixation 2. PLACING THE VERTICAL POLES 3. MOUNTING THE CROSS MEMBERS 4. ADJUSTING THE CONSTRUCTION 4.a Levenless 4.b Perpendicularity 5. LOUVRE MOTOR 6. LOUVRES 6.a Preparation of the louvres 6.b First Louvres 6.c Placing the Louvres 6.d Louvres with LED-strip...
- Page 3 Cover vertical pole Fixation for groundanchor or floorplate Floorplate 20x20 Pole Support (standard) Groundanchor Single Couple Vertical coupling pole Cover vertical coupling pole (pre-assembled screenguide) Support for ground anchor or floor plate for coupling pole Pole Support coupled unit (standard) OL-B200(XL)-01...
- Page 4 › Check the diagonals, the difference should not be more than 1/4”. STAND ALONE SINGLE W - 3-1/2” W - 3-1/2” W - 3/8” Pole Support Ground Anchor Floorplate 20x20 COUPLE W - 1-3/4” W - 1-3/4” Pole Support Ground Anchor Floorplate 20x20 OL-B200(XL)-02...
- Page 5 WALL FIXATION › Use the dimensions mentioned above, but add 1/4” next to the wall. SINGLE 1/4” 4-7/8” W - 9-7/8” 4-7/8” COUPLE 2” 4-7/8” W - 9-7/8” 2” OL-B200(XL)-03...
- Page 6 › For a coupled unit prepare the junction part, as shown on the drawing below. › Hook the cross members on to the walladapter. 2 x 4 DIN7504K 6.3x50 Single Pole Coupling Pole Threaded rod M6x156 washer DIN 125 M6 DIN 934 M6 OL-B200(XL)-04...
- Page 7 › Screw 4 bolts (M8x25) in the coupling profile at the left and right side, screw them until 3/8” to 5/8” from the end › Make sure the gasket is installed › Hook the middleguide between the 2 screenboxes › Secure both sides of the middleguide with 4 bolts through the cross members. (M8x25) Gasket DIN 912 M8x25 Motor cable OL-B200(XL)-05...
- Page 8 DOOR PROFILE › Remove the rollertubes from the screens. › Place the door profile below the unit and fix it. (1) › Make sure the profile and the mainhousing are perfectly aligned. (2) M8 x 25 M8 x 80 OL-B200(XL)-06...
- Page 9 › Check the perpendicularity trough the following dimension (L1 ± 2mm !). › Also check the diagonals of the top side. › If necessary, the pole supports allow a small adjustment. Side View Top View › Once everyting has been adjusted, tighten all the bolts. › Remove the provisional filling. OL-B200(XL)-07...
- Page 10 › Position the cables tightly behind the PVC fabric support or stick them to prevent unevenness in the screen fabric. ROOF IN 2 PARTS › Guide the cable to the left or to the right, depending on the position of the wiring box. › Store the motorcable behind the lip of the PVC fabric support profile (see single). OL-B200(XL)-08...
- Page 11 › Clips a small bearing onto every axle with an edge. 6.b FIRST LOUVRES › Fix the "first louvres" to the mainhousings W1 and W2. › The holes are already pre-drilled in the mainhousings. 1-5/8” 2-7/8” 4” 5-1/4” 6” Different types - First louvre OL-B200(XL)-09...
- Page 12 › Place the louvres in the provided holes. › The longest axles should be placed at the highest side. › Press the axle in the L2 side, and turn the louvre into the louvre holder L1. PUSH FRONT VIEW PUSH TURN TOP VIEW OL-B200(XL)-10...
- Page 13 › Position them temporarily slanting between L1 and L2 so that there's enough place to easily install the final louvre. › Also preferably position them upright, instead of flat. › Hook the louvres into the L1 when all louvres are mounted at the L2 side. › Then also hook the final louvres into the movable louvreholder. FRONT VIEW OL-B200(XL)-11...
- Page 14 › Put the cables inside the louvreholder, if necessary put the cables through the first louvres until it ends up in the mainhousing. CONNECTING THE LOUVRES › Slide the covers onto the louvreholders, and screw them. 4x DIN7504 4.2x13 › Also place the PVC covers onto the First Louvres. OL-B200(XL)-12...
- Page 15 › When mounting the rollertube supports, you should first drill through the gaskets Screen without window Screen with window SINGLE › Attach the rollertube supports to the vertical poles (3 x M6x25) (1). › Insert the screens as shown below (2), and secure them on both sides (M4x20) (3). OL-B200(XL)-13...
- Page 16 › Hide the cable behind the PVC fabric protection. › Position the cables tightly behind the PVC fabric support or stick them to prevent unevenness in the screen fabric. › In some cases it may be necessary to hide the cable behind its own rollertube ! OL-B200(XL)-14...
- Page 17 › Place in one or more vertical pole a support for the drain. › If possible, place the drain on the lowest side of the louvres. 1drain / 49ft². › Tighten all bolts. › The water evacuation pipe can not be installed in a door profile. SINGLE COUPLE OL-B200(XL)-15...
- Page 18 › WARNING when opening a side guide: › When opening a side guide you must start at the upper clips and go down one by one. › Pull as close as possible on the clips profile in order not to deform it. OL-B200(XL)-16...
- Page 19 › Once all motors have been adjusted, connect them to electricity grid again. 11 SCREEN COVER › Mount the lock covers on the screen covers. › Hook the cover in the screen housing, and close it on the left and right side of the cover. (4) Cover Mainhousing lock cover click OL-B200(XL)-17...
- Page 20 › Drain can be placed in a vertical pole or in a couple pole. (2 sides) WITH DRAIN WITHOUT DRAIN COUPLE SINGLE COUPLE PROFILE ROOF IN 2 PARTS › REMARK: a roof in 2 parts must have a water evacuation hole per part. Open at least one water evacuation hole per part. OL-B200(XL)-18...
- Page 21 › Screw the corner piece (M6 x 40) (2). › While screwing, push the corner piece firmly against the rain gutters. (3) Push firmly ! 13. FINISHING 13.a DRAIN › Place the necessary parts at every draining point. 2” Not provided OL-B200(XL)-19...
- Page 22 › Place a cover on every vertical pole, and secure the cover by mounting a top cover on top of the poles. › The cover can be mounted in two directions. › Do not place a top cover when a rain sensor has been mounted. SINGLE COUPLE / DOOR PROFILE OL-B200(XL)-20...
- Page 23 Cover Gasket Gasket COUPLE/DOOR SINGLE PROFILE Gasket Gasket COUPLE WALL FIXATION SINGLE WALL FIXATION COVER 13.e EXTENSION RAIN GUTTER › Place the extension on the rain gutter (B200 + B200XL motor side) OL-B200(XL)-21...
- Page 24 14. WARRANTY CERTIFICATE OL-B200(XL)-22...
