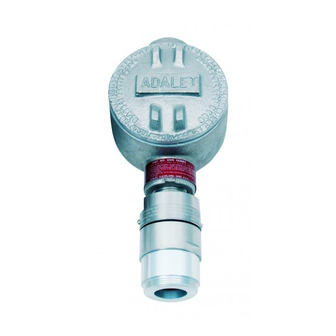

- Page 1 65-2396RK Transmitter Operator’s Manual Part Number: 71-0184RK Revision: C Released: 9/1/20 RKI Instruments, Inc. www.rkiinstruments.com...
- Page 2 Frequency of calibration depends upon the type of use you have and the sensor types. Typical calibration frequencies for most applications are between 6 and 12 months, but can be required more often or less often based on your usage. 2 • 65-2396RK CO Transmitter...
- Page 3 Product Warranty RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free from defects in materials, workmanship, and performance for a period of one year from date of shipment from RKI Instruments, Inc. Any parts found defective within that period will be repaired or replaced, at our option, free of charge.
-
Page 4: Table Of Contents
Parts List ..............20 4 • 65-2396RK CO... -
Page 5: Overview
± 5% of reading or ± 2% of full scale (whichever is greater) WARNING: When using the 65-2396RK, you must follow the instructions and warnings in this manual to assure proper and safe operation of the 65-2396RK and to minimize the risk of personal injury. -
Page 6: Description
The following table indicates the color of the shrink tubing and the color of the wire to which it is applied. 6 • 65-2396RK CO Transmitter... -
Page 7: Amplifier
The span pot is located to the right of the zero pot (see Figure 1). Use a small flat blade screwdriver to turn the span pot’s adjustment screw and adjust the amplifier’s gas response output during the calibration procedure. Turn the adjustment screw clockwise to increase the gas response and counterclockwise to decrease the gas response. 65-2396RK CO Transmitter • 7... -
Page 8: Junction Box
• Mount the transmitter at least six feet from the floor to minimize the possibility of someone breathing on the unit. The exhaled CO may cause an alarm. 8 • 65-2396RK CO Transmitter... -
Page 9: Wiring The Co Transmitter
WARNING: Always verify that the power to the controller is off before you make wiring connections. 1. Turn off the controller. 2. Turn off or unplug power to the controller. 3. Remove the junction box cover. 65-2396RK CO Transmitter • 9... - Page 10 CAUTION: Do not route power and transmitter wiring through the same controller conduit hub. The power cable may disrupt the transmission of the transmitter signal to the controller. 11. Connect the wires to the applicable detector/transmitter terminal strip at the controller as shown in Figure 3. 10 • 65-2396RK CO Transmitter...
- Page 11 12. If shielded cable is used, connect the cable’s drain wire to an available chassis (earth) ground at the controller. RKI controllers typically have a ground stud that can be used to ground the cable’s drain wire. 65-2396RK CO Transmitter • 11...
-
Page 12: Startup
4. Screw the calibration cup onto the bottom of the IR CO detector. 5. Screw the regulator into the 100% nitrogen calibration cylinder. 6. Use the calibration kit sample tubing to connect the regulator to the calibration cup. 12 • 65-2396RK CO Transmitter... -
Page 13: Maintenance
Investigate significant changes in the display reading. Biannually Calibrate the CO transmitter as described in “Calibration” on page 17 of this manual. 65-2396RK CO Transmitter • 13... -
Page 14: Troubleshooting
4. If the calibration/response transmitter requires difficulties continue, replace the calibration once detector. every 6 months. 5. If the calibration/response Some applications difficulties continue, contact RKI may require a more for further instruction. frequent calibration schedule. 14 • 65-2396RK CO Transmitter... -
Page 15: Replacing Components Of The Co Transmitter
CAUTION: Allow the replacement detector to warm up for 5 minutes before you continue with the next step. 13. Calibrate the transmitter as described in “Calibration” on page 17 of this manual. 65-2396RK CO Transmitter • 15... - Page 16 NOTE: When a transmitter is first powered up with a new amplifier, the initial output may be either high or below zero depending on the setting of the zero pot. Be sure to make arrangements so that this does not cause unwanted alarms. 10. Turn on power to the controller. 16 • 65-2396RK CO Transmitter...
-
Page 17: Calibration Frequency
6 months is adequate for most infrared CO transmitter applications. Unless experience in a particular application dictates otherwise, RKI Instruments, Inc. recommends a calibration frequency of every 6 months. If an application is not very demanding, for example detection in a clean, temperature controlled environment where calibration adjustments are minimal at calibration, then a calibration frequency of every 9 to 12 months is adequate. -
Page 18: Setting The Zero Reading
Returning to Normal Operation 1. Remove the voltmeter leads from the amplifier test points. 2. Unscrew the calibration cup from the detector. NOTE: For convenience, leave the regulator and calibration cup connected by the sample tubing. 18 • 65-2396RK CO Transmitter... - Page 19 The 0-20% volume, 0-50% volume, and 0-100% volume detectors will not display a reading in fresh air because their ranges are too large. 6. Store the components of the calibration kit in a safe and convenient place. 65-2396RK CO Transmitter • 19...
-
Page 20: Parts List
, 34 liter steel 81-0078RK-01 Calibration cylinder, 100% nitrogen 34 liter steel 81-1050RK Regulator, with gauge and knob, 0.5 liter/minute continuous flow, for 17 liter and 34 liter steel calibration cylinders (cylinders with external threads) 20 • 65-2396RK CO Transmitter... - Page 21 Part Number Description 81-1051RK Regulator, with gauge and knob, 0.5 liter/minute continuous flow, for 34 liter aluminum/ 58 liter/103 liter calibration cylinders (cylinders with internal threads) 81-1103RK Calibration cup 82-0006RK Pot adjust screwdriver, for calibration 65-2396RK CO Transmitter • 21...
