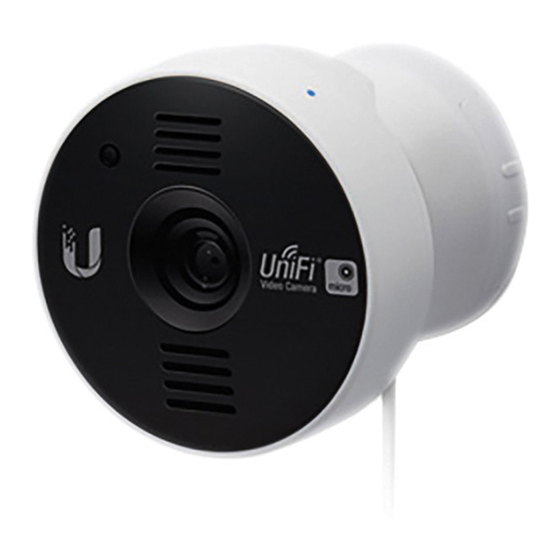

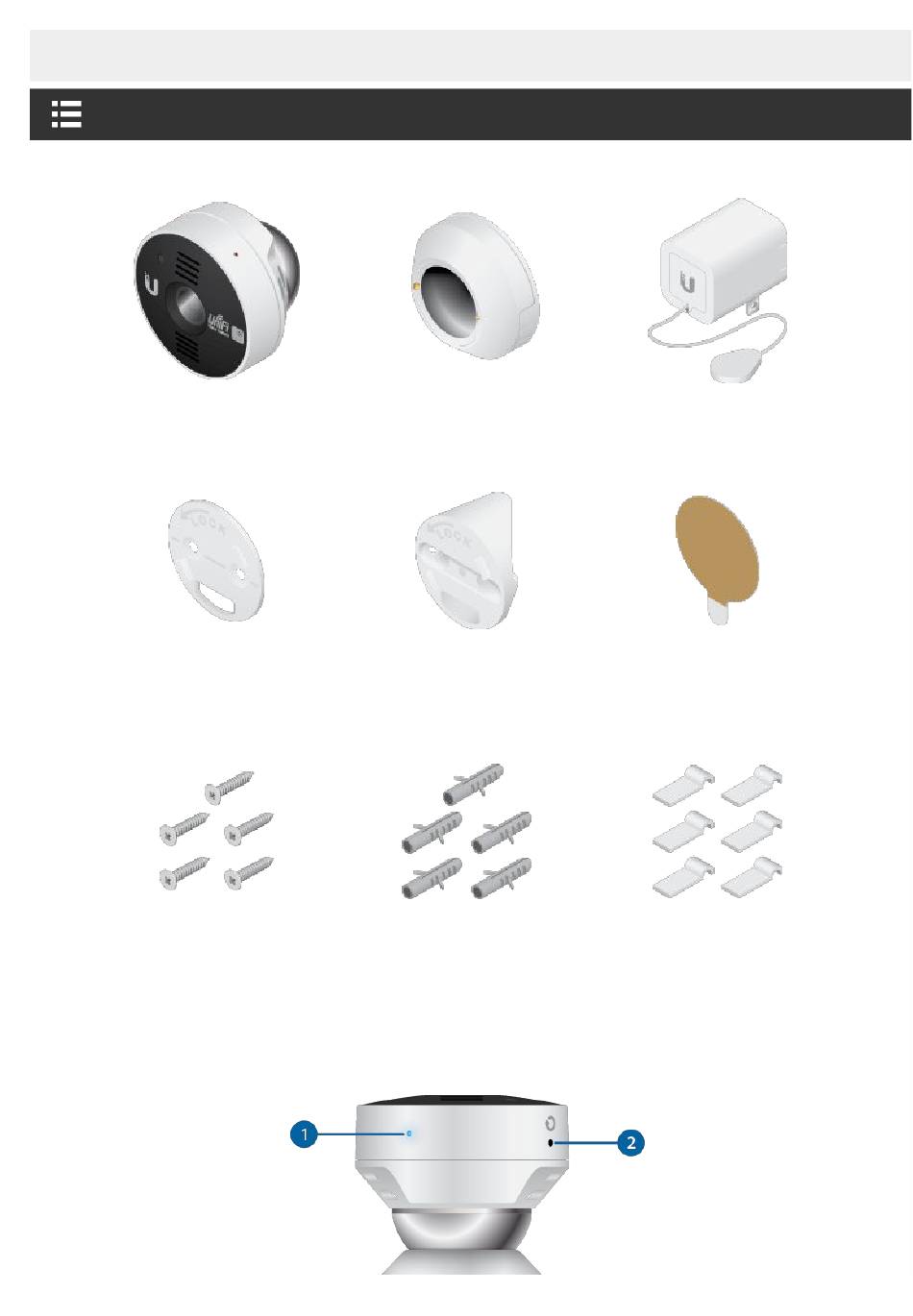

- Page 1 UVCMicro Quick Start Guide Package Contents UVCMicro Camera UVCMicro Base Power Adapter Flat Base Plate Corner Base Plate Mounting Tape Screws (Qty. 5) Screw Anchors (Qty. 5) Cable Clips (Qty. 6) Hardware Overview...
-
Page 2: Installation
The LED will light steady blue during bootup. When the camera is ready to connect to the WiFi network, the LED pattern will flash two times accompanied by two beep tones. Once connected to the network, the LED will glow a breathing pattern. Reset To reset network settings to factory defaults, press and hold the Reset button until the camera beeps two fast tones. Installation Extend the Power Cable The Power Adapter has an extendable power cable that is concealed inside the adapter casing. 1. 2. 3. ... -
Page 3: Mounting Options
4. Mounting Options The camera may be used freestanding or mounted in several ways: “Magnetic Mounting” “Mounting with Tape” “Wall Mounting with Screws” “Corner Mounting with Screws” Magnetic Mounting 1. ... - Page 4 2. 3. Go to “Attaching the Camera”. Mounting with Tape 1. 2. ...
- Page 5 3. 4. Go to “Attaching the Camera”. Wall Mounting with Screws 1. ...
- Page 6 Optional 2. ...
- Page 7 Optional 3. ...
- Page 8 Optional 4. ...
- Page 9 5. Go to “Attaching the Camera”. Corner Mounting with Screws 1. 2. ...
- Page 10 3. 4. ...
-
Page 11: Attaching The Camera
5. Attaching the Camera 1. 2. ... - Page 12 3. 4. ...
- Page 13 5. 6. ...
-
Page 14: Specifications
Recommended Note: Six Cable Clips with adhesive tape are included to help hold the power cable in place. Specifications UVCMicro Dimensions 40.7 x 40.7 x 40.8 mm (1.61 x1.61 x 1.61") Weight 53 g (1.87 oz) Network Interface 2.4/5 GHz DualBand WiFi... -
Page 15: Safety Notices
UVCMicro Sensor Progressive Scan RGB CMOS 1/4" Lens EFL=2.38 mm / F2.4 View Angle 79.13° (H), 54.15° (V), 88.45° (D) Night Mode Infrared LEDs with Mechanical IR Cut Filter Video Compression H.264 Resolution 720p HD (1280 x 720) Max. Frame Rate 30 FPS Microphone Speaker* Power Supply 5.5V (5,5V) Adapter with Extendable Power Cable Max. Power Consumption 3.2W Mounting Wall/Ceiling/Corner Kit Operating Temperature 0 to 35° C (32 to 95° F) Operating Humidity 20 to 90% Noncondensing Certifications CE , FCC, IC * Functionality coming soon with a software update Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. -
Page 16: Limited Warranty
4. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate shortcircuit backup protection. Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The device has been approved by the FCC under FCC ID: SWXMICRO. ISED Canada CAN ICES3(B)/NMB3(B) This device complies with ISED Canada licenceexempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. The device has been approved by ISED Canada under IC: 6545AMICRO. - Page 17 CAN ICES3(B)/NMB3(B) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. l’appareil ne doit pas produire de brouillage; 2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. L’appareil ont été approuvés par ISDE Canada en vertu IC: 6545AMICRO. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter. AVIS IMPORTANT : Déclaration sur l’exposition aux rayonnements : Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans un environnement non contrôlé. Lors de l’installation et de la mise en fonctionnement de l’équipement, assurezvous qu’il y ait une distance minimale de 20 cm entre l’élément rayonnant et vous. Cet émetteur ne doit être installé à proximité d’aucune autre antenne ni d’aucun autre émetteur, et ne doit être utilisé conjointement à aucun autre de ces appareils. Australia and New Zealand Brazil Nota: Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. Country List...
-
Page 18: Declaration Of Conformity
Country List BFWA (Broadband Fixed Wireless Access) members noted in blue Note: This device meets Max. TX power limit per ETSI regulations. The following apply to products that operate in the 5 GHz frequency range: Note: This device is restricted to indoor use only when operating in the 5150 5350 MHz frequency range within all member states. Note: All countries listed may operate at 30 dBm. BFWA member states may operate at 36 dBm. Note: Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement Declaration of Conformity Online Resources © 2021 Ubiquiti Inc. All rights reserved.
