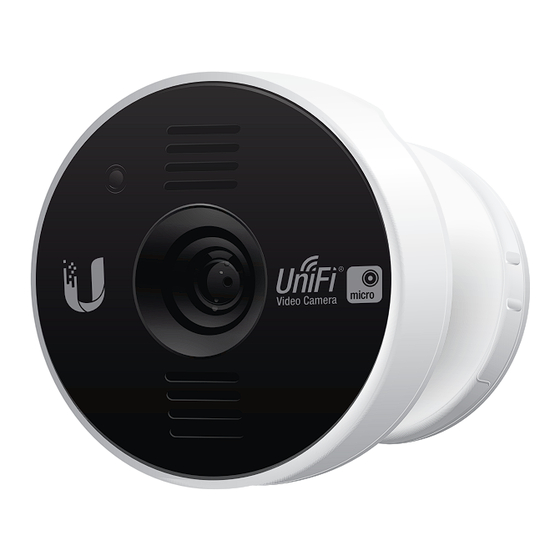

Ubiquiti UVC-Micro Quick Start Manual

Unifi video camera
Hide thumbs Also See for UVC-Micro:
Table of Contents

Advertisement

Quick Links

See also: User Manual
®
Model: UVC-Micro
Q
S
G
uick
tart
uide

Advertisement

Table of Contents
loading

Related Manuals for Ubiquiti UVC-Micro

Summary of Contents for Ubiquiti UVC-Micro

  • Page 1 ® Model: UVC-Micro uick tart uide...

  • Page 2: Package Contents

    Package Contents UVC-Micro UVC-Micro Power Camera Base Adapter Flat Base Corner Base Mounting Plate Plate Tape Screws Screw Cable Clips (Qty. 5) Anchors (Qty. 6) (Qty. 5)

  • Page 3: Hardware Overview

    Hardware Overview Reset The LED will light steady blue during bootup. When the camera is ready to connect to the Wi-Fi network, the LED pattern will flash two times accompanied by two beep tones. Once connected to the network, the LED will glow a breathing pattern.

  • Page 4: Installation

    Installation Install the UVC-Micro within 5 m (16') of a power outlet. The camera has a magnetic base that can be used to mount it on a metal surface and includes mounting kits for standard wall or corner mounting. Follow the appropriate steps for your installation.
  • Page 5 2. Attach the camera assembly to a metal (steel) surface. Wall Mounting Mount with tape or with screws: Mounting with Tape 1. Remove the paper from one side of the Mounting Tape, and center the tape on the back of the Flat Base Plate.
  • Page 6 2. Remove the paper from the other side of the Mounting Tape and attach the Flat Base Plate to the wall. Mounting with Screws 1. Place the Flat Base Plate at the desired location and mark the two mounting holes.
  • Page 7 Note: If you are running the power cable inside the ceiling or wall, then mark the cable feed opening below the mounting holes. 2. Use a 3 mm drill bit to drill a hole at each mark, and insert a Screw Anchor into each hole.
  • Page 8 3. (Optional) When running the power cable inside the wall or ceiling, cut the hole for the power cable. Then feed the cable through the hole and the Flat Base Plate. 4. Attach the Flat Base Plate to the surface by fastening a Screw to each Screw Anchor.
  • Page 9 Corner Mounting 1. Place the Corner Base Plate at the desired location and mark the two mounting holes. 2. Use a 3 mm drill bit to drill a hole at each mark, and insert a Screw Anchor into each hole.
  • Page 10 3. Feed the power cable through the back of the Corner Base Plate. 4. Secure the Corner Base Plate by fastening a Screw to each Screw Anchor.
  • Page 11 Attaching the Camera 1. Attach the power cable to the back of the UVC‑Micro Base. 2. Connect the UVC‑Micro Base to the Base Plate by inserting the mounting tabs into the slots on the base.
  • Page 12 3. Rotate the UVC‑Micro Base to lock it. 4. Attach the UVC‑Micro Camera to the UVC‑Micro Base, and pivot the camera to the desired angle.
  • Page 13 Connecting Power The included Power Adapter has a 5 m (16') power cable that is hidden inside the adapter casing. Extend the power cable as needed, by following these steps: 1. Hold the outer casing of the Power Adapter with the Ubiquiti® U logo facing toward you, and push in the center of the logo until the adapter releases from the outer casing.
  • Page 14 2. Unwind the power cable to extend it to the desired length. Then lock the cable into the notch located under the bottom of the U logo. 3. Slide the outer casing back onto the adapter until it snaps into place.
  • Page 15 4. Plug the Power Adapter into a power outlet. To secure the connection, use the outlet cover plate screw to fasten the Power Adapter to the outlet. (Optional) Note: (6) Cable Clips with adhesive tape are included to help hold the power cable in place.
  • Page 16 1. Connect your host machine Wi-Fi to the camera’s access point (SSID) named: Setup UVC Micro (xxxx) (where xxxx is the last four characters of the MAC address of the UVC-Micro) 2. Launch a web browser and go to: https://192.168.1.20...
  • Page 17 3. The login screen will appear. Enter ubnt in the Username and Password fields and click Login. 4. The Main screen will appear and you should see a live video stream from the camera. Click the Device tab. 5. On the Device page, click Scan Networks.
  • Page 18 6. Under the Wireless Network Settings section, enter the SSID and Security settings of your UniFi Video network. Click Save Changes. 7. The UVC-Micro will reboot and connect to your UniFi Video network. 8. Connect your host machine to the same UniFi Video network.
  • Page 19 3.1.0 or higher. The latest version of the UniFi Video software is available at downloads.ubnt.com/unifivideo Once the UVC-Micro and the UniFi Video software are connected to the same network, the UniFi Video auto-management feature should automatically detect and install your new camera(s).

  • Page 20: Specifications

    Specifications UVC-Micro 40.7 x 40.7 x 40.8 mm Dimensions (1.61 x1.61 x 1.61") Weight 53 g (1.87oz) Network Interface 2.4/5 GHz Dual-Band Wi-Fi Progressive Scan Sensor RGB CMOS 1/4" Lens EFL=2.38 mm / F2.4 View Angle 79.13° (H), 54.15° (V), 88.45° (D)

  • Page 21: Safety Notices

    Safety Notices Read, follow, and keep instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 22: Limited Warranty

    NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period.
  • Page 23 Warranty Conditions The above warranty does not apply if the Product: has been modified and/or altered, or an addition made thereto, except by Ubiquiti Networks, or Ubiquiti Networks’ authorized representatives, or as approved by Ubiquiti Networks in writing; (II) has been painted, rebranded or physically modified in any way;...
  • Page 24 Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned freight collect or subject to disposal.
  • Page 25 FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s selection of products...
  • Page 26 Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER LEGAL THEORY, AND...
  • Page 27 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1.
  • Page 28 • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.
  • Page 29 Industry Canada CAN ICES-3(B)/NMB-3(B) To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device complies with Industry Canada licence- exempt RSS standard(s).
  • Page 30 CAN ICES-3(B)/NMB-3(B) Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie. Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s).
  • Page 31 appareil. Immédiatement suite à la remarque, le fabricant doit fournir une liste de tous les types d’antenne approuvé pour une utilisation avec l’émetteur, ce qui indique le gain maximal d’antenne permis (en dBi) et requis d’impédance pour chacun. Informations d’antenne: Type d’antenne: antenne métallique Gain d’antenne: 1 dBi RF Exposure Warning...

  • Page 32: Online Resources

    ©2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
