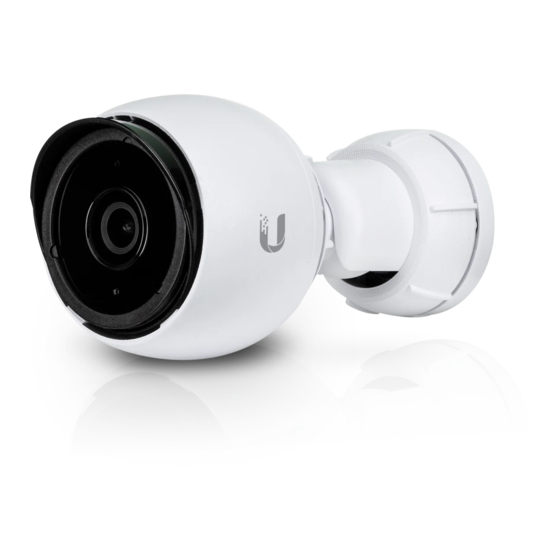

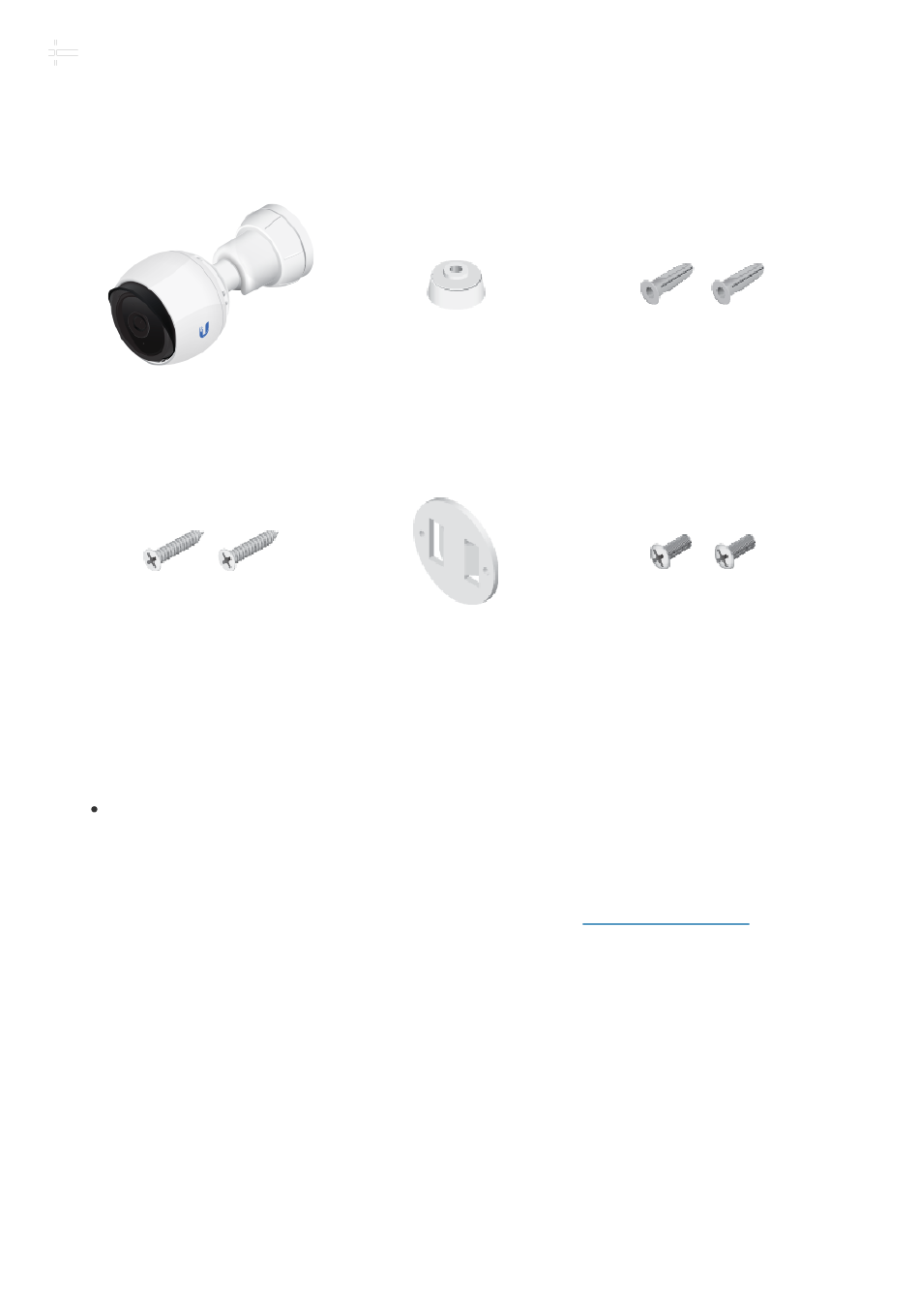

Package Contents
Camera
Self-Tapping Screws (Qty. 2)
Installation Requirements
Shielded Category 5 (or above) cabling should be used for all wired Ethernet
connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded
Ethernet cable from Ubiquiti. For more details, visit:
Hardware Overview
https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html
UVC-G4-BULLET Quick Start Guide
UVC-G4-BULLET Quick Start Guide
Cable Gland
Pole Mount Bracket
Screw Anchors (Qty. 2)
Machine Screws (Qty. 2)
ui.com/toughcable
1/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UVC-G4-BULLET and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti UVC-G4-BULLET

Summary of Contents for Ubiquiti UVC-G4-BULLET

  • Page 1 AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable Hardware Overview https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html...

  • Page 2: Hardware Installation

    4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide Ethernet Port Gigabit RJ45 port connects to an 802.3af PoE switch for PoE power and data. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the camera is powered on.

  • Page 3: Wall Mount

    4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide Wall Mount https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html 3/17...
  • Page 4 4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html 4/17...
  • Page 5 4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide Note: For outdoor installations, position the Cable Slot downward. https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html 5/17...
  • Page 6 4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html 6/17...
  • Page 7 4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide IMPORTANT: If you are installing your camera outdoors, create a drip loop for the cable below the camera to prevent water ingress. https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html 7/17...
  • Page 8 4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide IMPORTANT: For proper weather sealing, the Cable Gland must fit securely within the Adjustable Base when the camera is mounted. Ensure that the Cable Gland is securely seated during installation and cable routing.

  • Page 9: Pole Mount

    4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide Pole Mount https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html 9/17...
  • Page 10 4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html 10/17...
  • Page 11 4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html 11/17...
  • Page 12 4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide IMPORTANT: Ensure that the Cable Gland is securely seated during installation and cable routing. https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html 12/17...
  • Page 13 4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide Connecting to a PoE Switch Setting Up UniFi Protect via App https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html 13/17...

  • Page 14: Specifications

    4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET Quick Start Guide Launch the UniFi Protect Mobile App and follow the on-screen instructions to complete setup. Adjusting the Camera View Specifications https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html 14/17...

  • Page 15: Safety Notices

    4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide UVC-G4-BULLET UVC-G4-BULLET UVC-G4-BULLET Quick Start Guide Dimensions Ø 75 x 140 mm (Ø 2.95 x 5.51") Weight 458 g (1 lb) Enclosure Injection-Molded Polycarbonate and Die-Cast Aluminum Networking Interface (1) 10/100/1000 Ethernet Port Viewing Angle 86°...

  • Page 16: Electrical Safety Information

    4/1/22, 10:00 AM UVC-G4-BULLET Quick Start Guide remote risk of electric shock from lightning. UVC-G4-BULLET Quick Start Guide Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.

  • Page 17: Weee Compliance Statement

    CE marking on this product represents the product is in compliance with all directives that UVC-G4-BULLET Quick Start Guide are applicable to it. WEEE Compliance Statement Declaration of Conformity Online Resources © 2022 Ubiquiti Inc. All rights reserved. https://dl.ui.com/qsg/UVC-G4-BULLET/UVC-G4-BULLET_EN.html 17/17...
