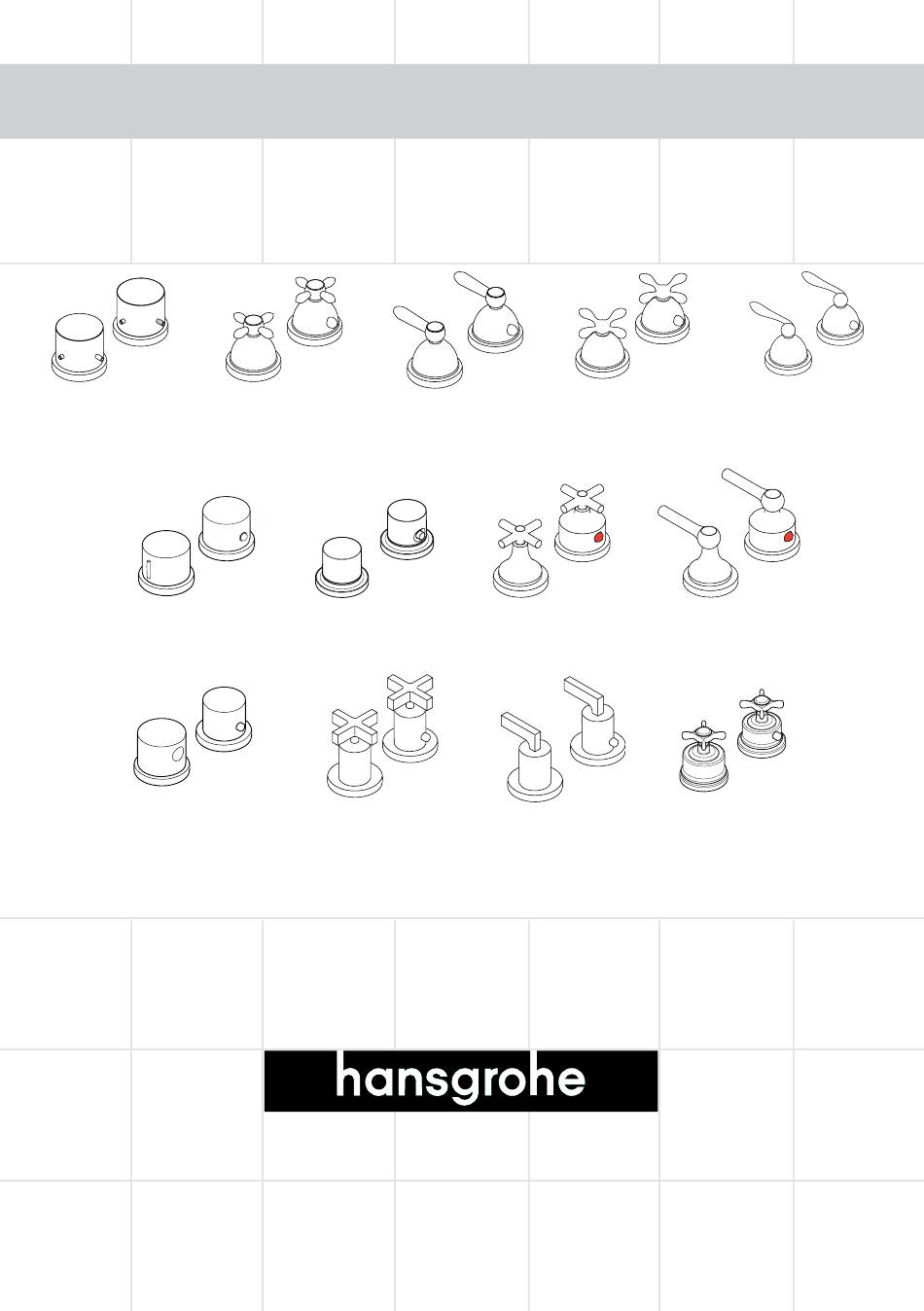

- Page 1 Installation Instructions / Warranty Axor Starck Axor Carlton Axor Carlton Axor Phoenix Axor Phoenix 10480XX1 17480XX1 17482XX1 17580XX1 17582XX1 Axor Steel Axor Massaud Axor Terrano Axor Terrano 35480801 18480XX1 37480XX1 37482XX1 Axor Uno Axor Citterio Axor Citterio Axor Montreux 38480XX1 39480XX1 39482XX1 16480XX1...
- Page 2 Axor Trim Kit for 2-Handle Roman Tub Set Axor Starck Axor Carlton Axor Carlton 10480XX1 17480XX1 17482XX1 Axor Phoenix Axor Phoenix Axor Steel 17580XX1 35480801 17582XX1 Axor Massaud Axor Terrano Axor Terrano 37480XX1 37482XX1 18480XX1...
- Page 3 Axor Uno Axor Citterio Axor Citterio 38480XX1 39480XX1 39482XX1 Axor Montreux 16480XX1...
-
Page 4: Installation
Installation This trim kit is for use with rough-in 13550181. The surface material must be installed and sealed prior to installation of this trim kit. Turn the water off at the main (1). Massaud only: Remove the stem extension, stem extension screw, and safety set (2). -
Page 5: All Models
�� �� Montreux only: Remove the snap connector. Install the flanges. All models: Install the flanges. Locate the decal sheet. Pull the backing strips from the 0, 1, and 2 decals. Place the decal sheet around the diverter (1). Peel it off so that the 0, 1, and 2 decals are left behind (2). - Page 6 Place the decal sheet around the thermostatic mixer. Peel it off so that the 100 decal is left behind. Turn the water on at the main (1). If water comes through the spout, position the diverter handle so that the indicator is next to decal 1.
- Page 7 If the water is off, position the diverter handle so that the indicator is next to decal 0. All models except Montreux: Push the handle firmly into place over the snap connector. Montreux only: Tighten the handle screw with a 3 mm Allen wrench. Install the screw cover.
- Page 8 All models: Place the thermostatic mixer handle on the stem. Turn the thermostatic mixer handle until the water coming out measures 100 F on a thermometer. Remove the handle.
- Page 9 Reposition the thermostatic mixer handle so that the safety stop override button is next to the 100 decal. Tighten the set screw. User Instructions Turn the thermostatic mixer handle clockwise to make the water cooler, counter-clockwise to make it warmer. The handle will stop when the temperature is 100 F.
-
Page 11: Replacement Parts
Replacement Parts handle Starck 10993XX0 21 handle, Montreux 16593XX0 thermostat handle Starck 10996XX1 22 thermostat handle, Montreux 16596XX1 handle Carlton cross 17298XX0 23 handle, Phoenix cross 96792XX1 thermostat handle Carlton cross 17394XX1 24 thermostat handle, Phoenix 96791XX1 handle Carlton lever 17993XX0 25 handle, Phoenix lever 96632XX1... -
Page 12: Cleaning Procedures
Cleaning Recommendation for Hansgrohe Products Modern faucetry and shower products utilize a combination of materials to comply with the needs of the mar- ket with regard to design and functionality. To avoid damage, it is necessary to use some caution when cleaning. Damage caused by improper treatment is not covered under the Hansgrohe warranty. -
Page 13: Limited Lifetime Consumer Warranty
Limited Lifetime Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996, and installed in either the United States or Canada. - Page 14 In requesting warranty service, you will need to provide The sales receipt or other evidence of the date and place of purchase. A description of the problem. Delivery of the product or the defective part, postage prepaid and carefully packed and insured, to Hansgrohe Inc. 1492 Bluegrass Lakes Parkway, Alpharetta, Georgia 30004, Attention: Technical Service, if required by Hansgrohe.
- Page 16 Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004 Tel. 770 360-9880 • Fax 770 360 9887 www.hansgrohe-USA.com...
