Printer Components

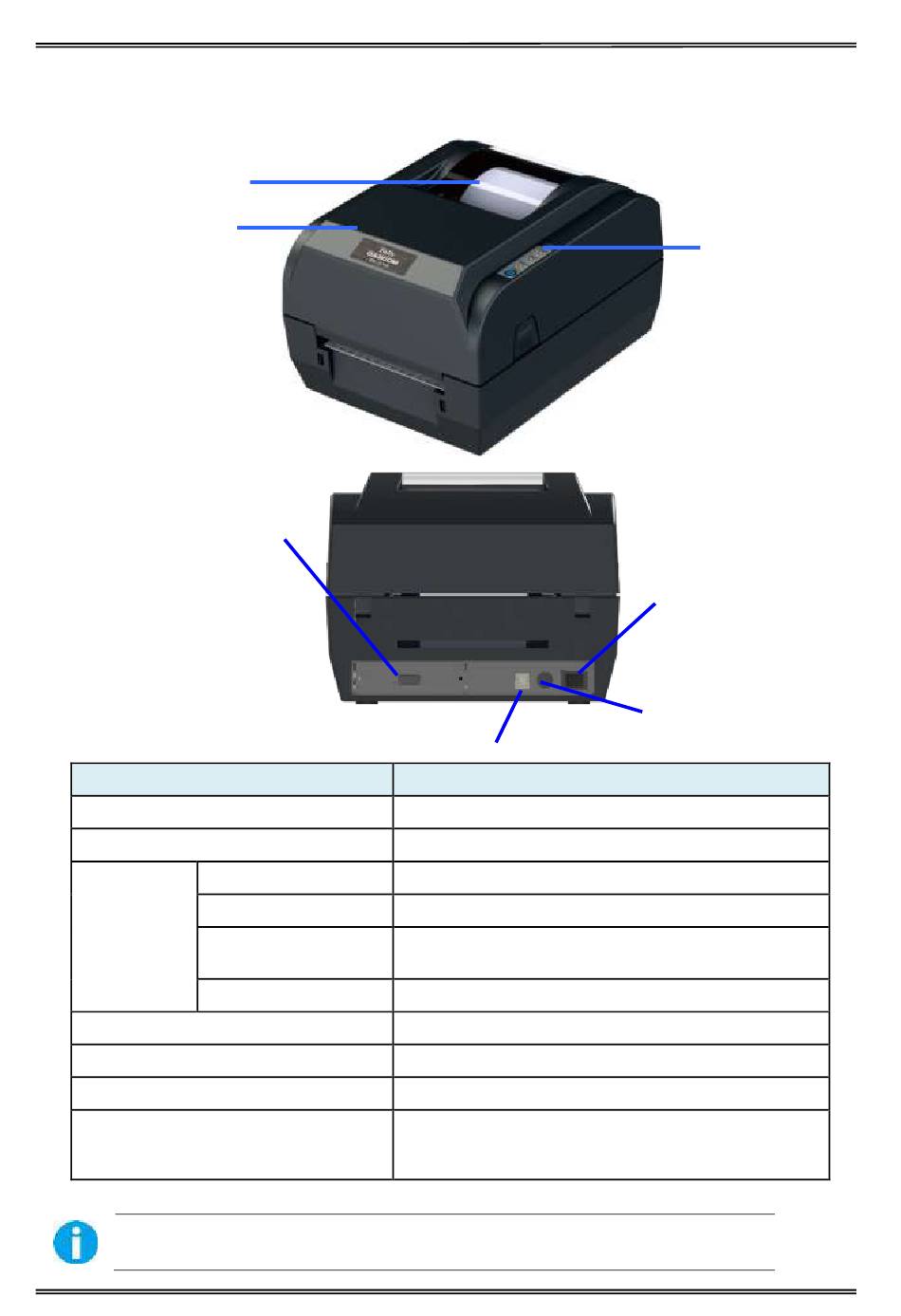

Printer components and their functions are shown as below:
Media Window
Top Cover
Optional Interface
(Serial/ Parallel/
Ethernet/
Wi-Fi/ Bluetooth）
Component Name
Media window
Top cover
Control Panel
Power socket
Power switch
USB interface
Optional interface
(Serial/ Parallel/ Ethernet/ Wi-Fi/
Bluetooth)
Wi-Fi and Bluetooth are options; they cannot be used at the same time.
USB interface
Power LED
Status LED
Error LED
Feed key
Function
Monitor the media status via this window
Open this cover for loading ribbon and media
Indicate the power status
Indicate the status of media, ribbon and label-taken
Indicate print head temperature and Print head
mechanism open or not
Press this key for feeding media
Connect power cord to the printer
For switching on/off printer
Connect USB interface cable from host
Connect optional interface cable from host
(interface type is on request)
9
User Guide V1.0
Control Panel
Power Switch
Power Socket
