Summary of Contents for iGPSPORT iGS52

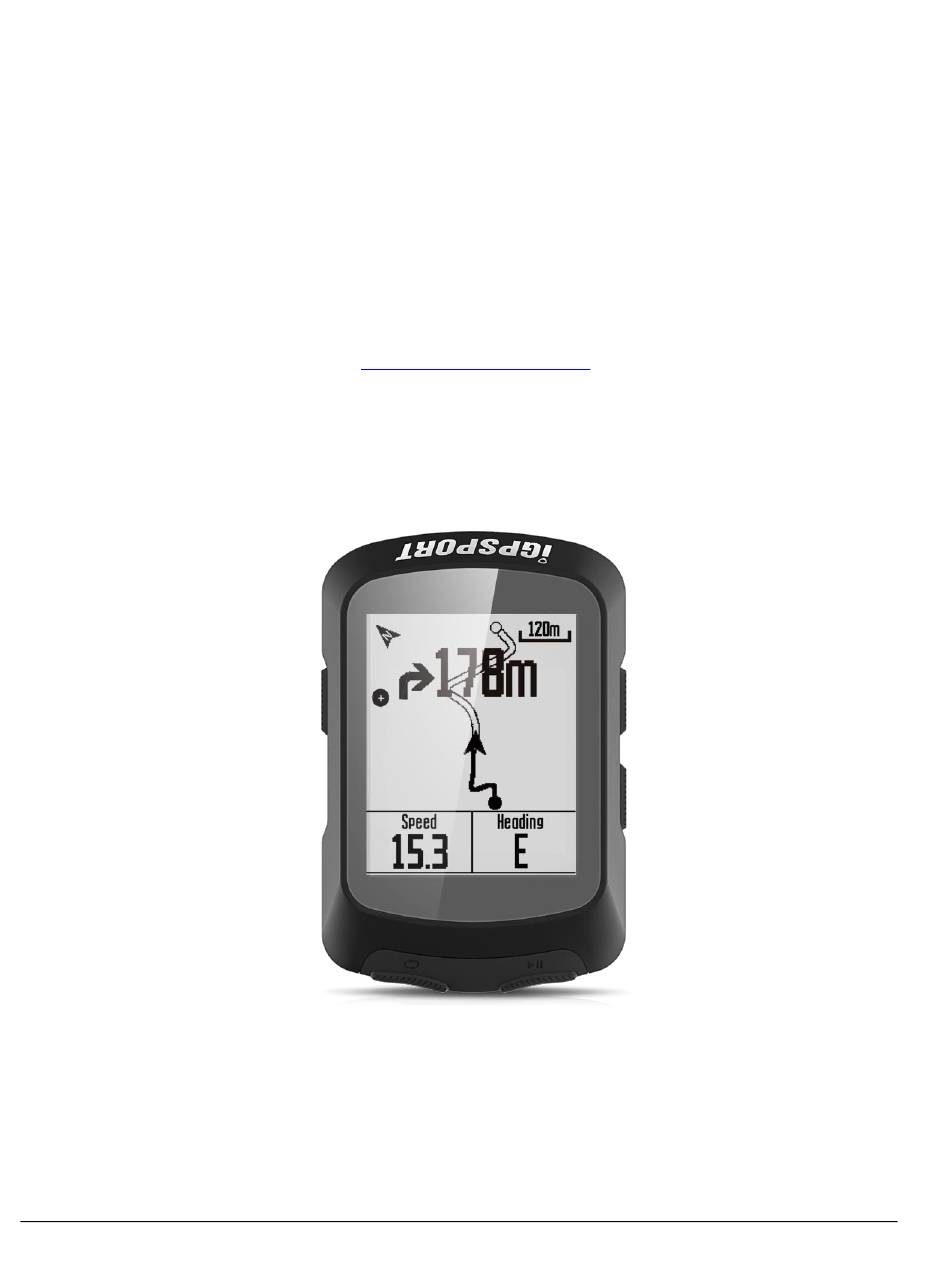

  • Page 1 User Manual iGS520 GPS Cycling Computer www.igpsport.com WUHAN QIWU TECHNOLOGY CO.,LTD. 1/22...
  • Page 2: Table Of Contents

    iGS520 User Manual Contents User Manual ..............................3 Buttons ................................3 Icon descriptions ............................3 Initial setups ..............................4 Connect GPS cycling computer with APP ..................5 Connect with sensors ..........................6 Install the standard mount ........................7 Start to ride ..............................8 Navigation ..............................
  • Page 3: User Manual

    iGS520 User Manual User Manual Buttons Icon descriptions Satellite Signal Record/Pause Time Bluetooth Battery Speed Heart Rate Cadence Power Trainer 3/22...
  • Page 4: Initial Setups

    iGS520 User Manual Initial setups Press and hold the power button to turn on the device and select your language. Phone Pairing Notification. Set speed and distance, altitude, temperature units. 4/22...
  • Page 5: Connect Gps Cycling Computer With App

    User Manual Set time formats. Set Time Zone. Connect GPS cycling computer with APP Download iGPSPORT APP.(Make sure Bluetooth is on) 5/22...
  • Page 6: Connect With Sensors

    iGS520 User Manual Press to enter Main Menu. Select Pair Phone then press Connect with sensors Select Sensors then activate sensor and hold near the device. Select Add Sensor. 6/22...
  • Page 7: Install The Standard Mount

    Select a saved sensor to forget, connect, set wheel size, set crank length or calibrate. Install the standard mount Use the included zip ties to attach to the bike stem. To ensure proper installation and fixation, please use the iGPSPORT base or out-front bike mount. 7/22...
  • Page 8: Start To Ride

    iGS520 User Manual Start to ride Wait for the device to search for satellites outdoors. Press to enter Ride page. Press to start or pause this activity. Press to count laps, then press to exit the lap counting page. 8/22...
  • Page 9: Navigation

    Save to save the activity. Press Press to exit the data display screen. Navigation Press to enter Navigation. Download a route from iGPSPORT APP. Select a route, and press to start the navigation. 9/22...
  • Page 10: Workouts

    Back to Start to return to your starting point. Press Select Stop Course to stop the navigation. Workouts Press to enter your workout list. Download a workout from iGPSPORT APP. Select a workout and press to start. 10/22...
  • Page 11: Indoor

    iGS520 User Manual On the Workouts page, press to end a workout step and begin the next one. to enter the menu and select Stop Workout to stop. Press Select Indoor to switch to indoor workouts. Indoor Press to start indoor cycling. Under Indoor, satellite positioning and automatic pause functions are turned off.
  • Page 12: Settings

    iGS520 User Manual Save your record and exit Indoor mode. Settings Display settings Select Settings in Main Menu, press enter. Select Pages, press to enter. 12/22...
  • Page 13 iGS520 User Manual Select a page, press to enter (Note: Road, Commute, Tour, Climbing, Navigation are the page names) Data Page: Set the data display screen. Up: The page moves forward one position. Down: The page moves back one position. Home: Set it as the main page.
  • Page 14 iGS520 User Manual Press to select a frame and press to confirm. Select a frame item and press to confirm. Select an item and press to confirm. 14/22...
  • Page 15: Language Settings

    iGS520 User Manual Language settings Select Language and press to enter. Select your language and press to confirm. Backlight settings Select Backlight and press to enter. Select Mode and press to switch the backlight mode. (Auto: Backlight turns on automatically at night). Select Keys and press to switch the button wake-up time of the backlight.
  • Page 16: Time Settings

    iGS520 User Manual Time settings Select Time and press to enter. Select Time and press to switch time format. Select Time Zone and press to enter. Press to set hour and press to confirm. Press to set minute and press to confirm.
  • Page 17: Reset

    iGS520 User Manual Press to turn on/off Auto Start, Auto Pause, Smart Record, Key Tones, Battery Save, Auto Power Off. Smart Record: Reduce the frequency of device recording and only key points of position, speed or heart rate will be recorded. Battery Save: Automatically adjust device settings to extend battery life, which will reduce the accuracy of recording.
  • Page 18: Charging

    Cycling data export Turn off the device and plug the USB cable into an AC adapter or a computer USB port. Open the removable hard disk of the PC, open the iGPSPORT folder, and open the Activity folder. Copy and export the Fit file in the Activity folder.
  • Page 19: Common Wheel Diameter Parameters

    iGS520 User Manual Common wheel diameter parameters Wheel Size L (mm) Wheel Size L (mm) 12 × 1.75 26 × 1.25 1953 14 × 1.5 1020 26 × 1-1/8 1970 14 × 1.75 1055 26 × 1-3/8 2068 16 × 1.5 1185 26 ×...
  • Page 20: Data

    iGS520 User Manual Wheel Size L (mm) Wheel Size L (mm) 650 × 38A 2125 700 × 28C 2136 650 × 38B 2105 700 × 30C 2170 700 × 18C 2070 700 × 32C 2155 700 × 19C 2080 700C Tubular 2130 700 ×...
  • Page 21: Specifications

    iGS520 User Manual Specifications Specifications Satellite GPS,BeiDou,GNSS Screen 2.3 inch,128*160 resolution Size 82*54*21mm Sensors Barothermograph and accelerometer Memory About 200 hours' data (depending on usage) Battery 40 Hours ANT+ Heart Rate Monitor, Speed Sensor, Cadence Sensor, Cadence and Speed Combined Sensor,Power Meter Waterproof IPX7 Temperature...
  • Page 22: Contact Us

    User Manual Contact Us Official Website: www.igpsport.com Manufacturer: Wuhan Qiwu Technology Co., Ltd. Address: 3/F Creative workshop, No.04 District D Creative World, No.16 Yezhihu West Road, Hongshan District, Wuhan, Hubei, China. Tel: 027-87835568 Email: service@igpsport.com Disclaimer This user manual is for user's reference only. if there is any difference between it and the device itself, please subject to the device.
