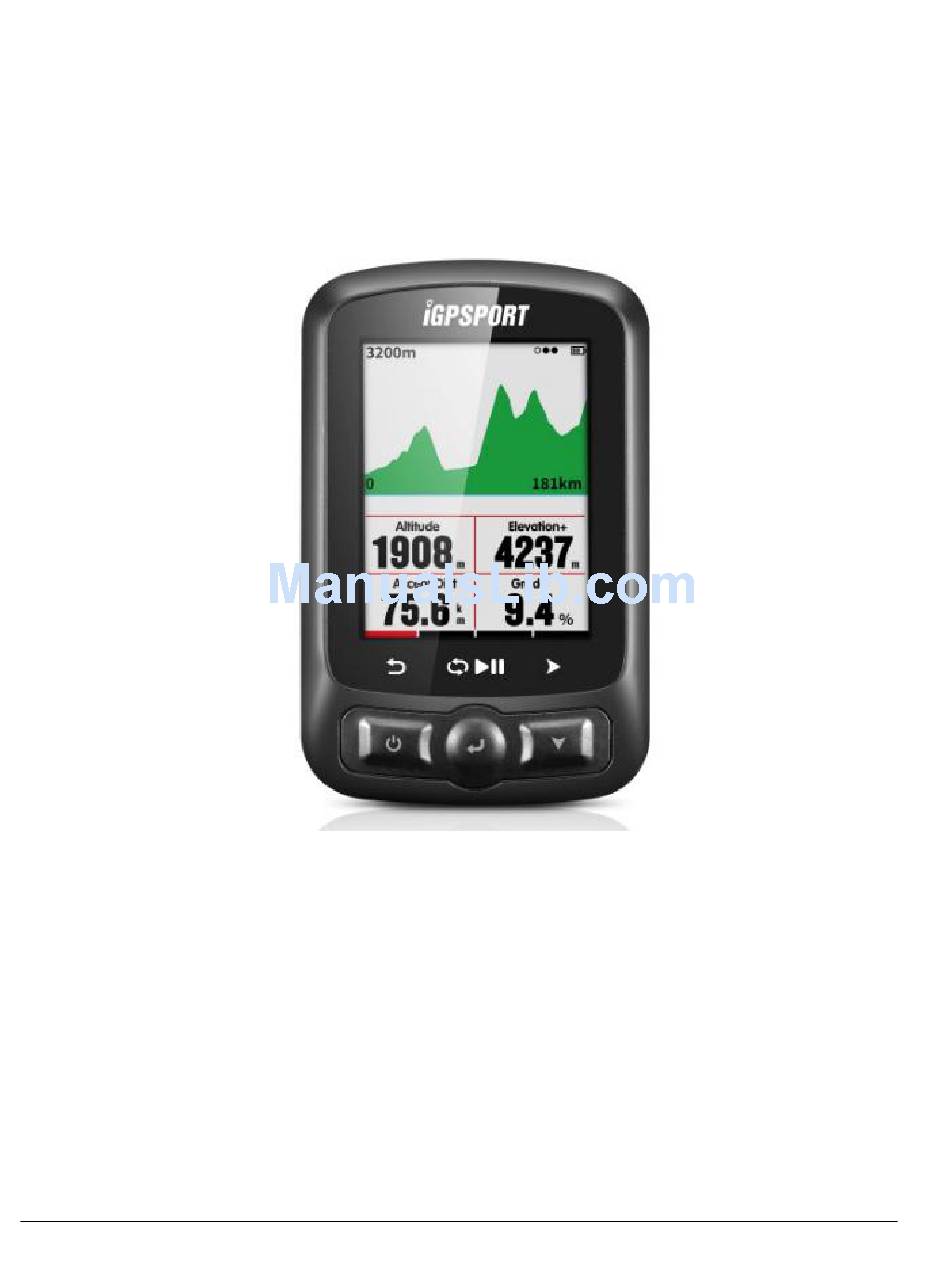

- Page 1 USER MANUAL iGS618 GPS CYCLING COMPUTER www.igpsport.com WUHAN QIWU TECHNOLOGY CO., LTD 1/38...
-
Page 2: Table Of Contents
Index ............................... 5 Getting started ................................5 Buttons ..............................5 Installation ............................6 Personal setting ..............................7 Time format ......................8 Connecting with ANT+ sensors ......................... 9 Screen display Indicator icons ..............................9 Bike setting ........................11 Acquiring satellite signals .............................. - Page 3 ..............................24 Auto Pause ..............................25 Auto Lap ..........................25 Auto Lap location: ........................... 25 Auto Lap distance ............................ 26 Auto Scroll Pages ............................27 Display setting ..............................27 Color Mode ............................... 28 Height page ..............................28 Navigation ..............................28 Location ..............................
- Page 4 ............................36 Manually Pause ..........................36 Speed from sensor ............................. 36 Other setting ............................37 Battery charging ........................37 iGPSPORT App Download ..........................37 Product Specifications ..............................38 Contact us ..............................38 Declaration 4/38...
-
Page 5: Getting Started
Getting started Buttons Left button: Power on/ Exit/Power off (hold for more than 2s) or Restart(hold for more than 10s) Middle button: Confirm/Recording start/Lap/Recording pause/Recording continue) Right button: Scroll down / Scroll Pages For specific button function, please refer to the button prompts under the screen. Installation 1. -
Page 6: Personal Setting
2. Out front bike mount installation (Optional accessory) Personal setting When using iGS618 for the first time, you can set the Language, Gender, Age, Weight, Height and Time Zone as below: While setting the numerical digits, select right button to choose the digit of number, select left/ middle... -
Page 7: Time Format
It will enter the data display page once the setting finished. For better using on iGS618, please complete more settings as below. Time format There are 2 time formats for selection: 12 hour or 24 hour. Enter SETTING-Day Time-Time Format... -
Page 8: Connecting With Ant+ Sensors
Connecting with ANT+ sensors If you have ANT+ sensors, for first time using, please search the sensors as below: SENSORS-Search All (It may take some time to finish searching.) Note: please make sure the sensors are in wake-up mode 1.Heart rate monitor should be worn directly on skin just around the chest. 2.Cadence sensor should be installed on the crank arm of no-drive side, then rotate the crank arm. -
Page 9: Screen Display Indicator Icons
Screen display Indicator icons When sensors are connected, the indicator icons will be shown in the upper screen as below: Bike setting It is necessary to set the bike circumference if using ANT+ speed sensor. Please enter the BIKE menu, choose the selected bike, set the circumference, save, and exit as below: 9/38... - Page 10 Common wheel size and circumference: Wheel Size L (mm) Wheel Size L (mm) 12 × 1.75 26 × 1.75 2023 14 × 1.5 1020 26 × 1.95 2050 14 × 1.75 1055 26 × 2.00 2055 16 × 1.5 1185 26 ×...
-
Page 11: Acquiring Satellite Signals
Acquiring satellite signals iGS618 will search the satellite signals automatically when power on. Please make sure iGS618 is outdoor and under a clear view of the sky. Usually it may take 5 to 120 seconds to locate satellite signals. Remain stationary when acquiring satellite signals. -
Page 12: Starting A Ride
GPS satellite signals intensity Starting a ride When motion detected, iGS618 will start count down automatically, wait till count down finished or select the middle button to start recording, or select the left button to cancel the recording. To turn off... -
Page 13: Pause And Continue
Recording status Pause and continue When you stop moving, , iGS618 will detect and pause the recording automatically. The icon will shift between record and pause accordingly. You can also select middle button to pause while recording manually. Scroll pages Scroll page down/up In data display page, select right button to shift from selected pages. -
Page 14: Lap
Select the left button to end a ride, select the middle button to save the ride. When the ride is ended, the recording indicator icon on the upper right will disappear accordingly. Power off iGS618 under recording mode, will also save the riding data automatically. -
Page 15: Reviewing Your Ride
Reviewing your ride Check the activities under MEMORY menu as below: 15/38... - Page 16 There are 3 menus for selection under the abstract information page as above, select middle button to enter Last activity or (a selected data under All activities) for details: choose Laps to check each data in current Lap (select middle button again, then select right button to shift into next Lap); choose Map to check the GPS track of current activity, and open the navigation function( check the detail introduction on navigation function chapter);...
-
Page 17: Activity Upload
Activity upload To analyze the activities, please upload them into iGPSPORT App via BLE or data analysis website via USB cable. Upload via BLE Choose SENSORS in main menu, select Bluetooth, select middle button to open the Bluetooth, search iGS618 device through the installed application in smart phone, screen will show Connect once successfully connected, then you can use iGPSPORT app to upload activities. -
Page 18: Upload Via Usb Cable
2) Connect iGS618 to your computer via USB cable. 3) Select left button to enter connection mode, then battery icon will light up. 4) Computer will recognize iGS618 as a new disk, then copy the activity files in folder as below :\iGPSPORT\Activities\***.fit to computer. -
Page 19: Advanced Setting
Advanced setting Customizing the data screens iGS618 support customized setting on data display pages, including page selection, display columns and data items. 19/38... -
Page 20: Page Selection
Page selection Choose MODE, select from Race Mode, Training mode and Indoor mode ( or the added new mode, ★ means the selected mode), select middle button to enter the setting, select middle button again to save the setting. Set pages Please set the pages as below, select middle button to enter in, select right button to shift from 1- 10 columns, select middle button to confirm the setting. - Page 21 After set the data columns, select middle button to enter the data items setting. Select right button to move into the selected column, then set up the data items. Below is the setting example for change the Distance into Time of Day: Select right button till the cursor blink on Distance column, select middle button to enter Choose Group, select Other Functions, select Time of Day, select left button to save and exit.
- Page 22 Data items supported for selection are as below: Group Data items Speed/Avg Speed Tot./Avg Speed Mov./Max Speed/Lap Speed /Pre Lap Speed Spd /Max Lap Spd/Max Pre Lap Spd functions Cadence Cadence/Avg Cad/Max Cad/Lap Cad /Pre Lap Cad /Max Lap Cad/Max Pre Lap Cad / Cadence Zone functions Heart Rate/Avg HR/Max HR/Lap HR/Max Lap HR/Pre Lap HR/Max Lap...
-
Page 23: Auto Function
Altitude/Grade/VAM/ VAM 30s/Elevation(+)/Elevation(-)/Max Altitude/Min Altitude/ VAM+ Avg / VAM - Avg / VAM+ Max / VAM - Max/Avg Grade+/ Altitude Avg Grade - /Max Grade +/ Max Grade-/ Lap Elev +/ Pre Lap Elev + / Lap functions VAM+ / Pre Lap VAM+/Lap Grade +/ Pre Lap Grade + Tot. -
Page 24: Auto Pause
Auto Pause When iGS618 is on recording and the Auto Pause function is on, device will auto pause when you stop riding. If you want to use manually pause , please refer to Manually Pause function. -
Page 25: Auto Lap
Auto Lap Under riding mode, you can choose Auto Lap function based on position or distance. Auto Lap location Device will mark the lap by position(at a specific position) automatically. Auto Lap distance : device will mark the lap by distance( at a specific distance) automatically. Customize the distance as below: 25/38... -
Page 26: Auto Scroll
Auto Scroll Pages You can use Auto Scroll Pages function to automatically cycle through all of the data display pages. 26/38... -
Page 27: Display Setting
Display setting Please set the Backlight Time, Night Backlight, Color Mode and Day Bright as below: Color Mode Set the device to display day(white screen with black font) or night(black screen with white font) colors. You can select the auto option to allow the device to set the day or night colors automatically based on the time of day. -
Page 28: Height
Note: you can only set the Day Bright for data display pages , the backlight of menu interfaces are default as 100% in day time. Height page When the height page is turned on, you can check the height of history routes in current lap. The height page can be turned on/off under the ride mode, you can also set the display area and items in height page under the MODE menu-Set Pages. -
Page 29: Road Map
After confirm the plan routes, copy the road map file into iGPSPORT \ Navigation Folder by USB cable, power on iGS618, you can find the road map under Navigation-User Routes, open the file to start Navigation or Return. -
Page 30: Training
North-upward on/off North-upward On: navigation displayed based on North-upward North-upward Off: navigation displayed based on Head-upward. Turning indicator When Turning indicator On, device will indicate the turning direction and distance with arrow and sound when then turning point is within 1 kilometer. Route Elevation When Route Elevation On, you can view an elevation plot of the routes(based on there was valid height data exist in the route files) -
Page 31: Set Alarms
Take heat rate training zones setting for example: Enter SETTING-Training Zones-Hr Zone Enter your Max HR, the zone values will update automatically; and you can also edit each value manually. The setting for Power Zone and Cadence Zone will be same as above. Set Alarms 31/38... - Page 32 Select MODE-Training Mode/Race Mode-Set Alarms as below: Take Heart Rate Alarms setting for example: You can set the Max and Min Heart Rate and turn on the alarm, when the heart rate is above or below the specific range of values, device will alert and notify you with message and sound. Same setting for set alarms for Time, Distance, Calorie, Cadence and Power.
-
Page 33: More Setting
More Setting Riding Mode There are 3 default riding modes for selection: Race Mode, Training Mode and Indoor Mode. Select middle button to choose a mode(★ means the selected mode), You can also customize 5 more new modes by Add New+ UI Setting There are 2 UI modes for selection: Simple and Sophisticated Enter SETTING- Display- UI Style... -
Page 34: Color Setting
Color Setting You can customize the color for each mode for distinguish easily. MODE-Race/Training/Indoor Mode-Color Set Add New Bikes 34/38... -
Page 35: Power Saving
There are two default bikes: Bike 1/2, and iGS618 support adding 3 bikes more(★ means the selected Bike), when connecting with ANT+ sensors, the sensors’ ID will connect with selected bike automatically, and if shift into a new bike, sensors will connect with the new bike automatically. -
Page 36: Other Functions
Other Functions Manually Pause Enter SETTING-Other Functions-Lap function-Yes to set Manually Pause. Under data display pages while recording, select middle button to pause or continue the recording. Speed from sensor Enter SETTING-Other Functions-Speed from sensor, select Yes, device will get the speed data from Speed sensor prior. -
Page 37: Battery Charging
2) iGS618 support charging during working.( first power on, then charge) 3) Do not overstretch the USB plug for keeping waterproof and dust-proof. iGPSPORT App Download Scan below QR code( or search in Google play / Apple store) to download iGPSPORT App Android Android Smart Phone Requirements: Android 5.0 or above, built-in Bluetooth 4.0... -
Page 38: Contact Us
App in smart phone via BLE; do not support connecting to Bluetooth sensors Package include: iGS618 X1, Micro USB Cable X1, Standard Bike Mount X2, Mount Pad X2，O-Ring Band X4，User Manualx1 Optional accessories : Out Front Bike Mount, Heart Rate Monitor, Speed Sensor, Cadence Sensor, Cadence and Speed Combined Sensor, Power Meter.
