Uplink 4550-CF Installation & User Manual

4g cellular alarm communicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

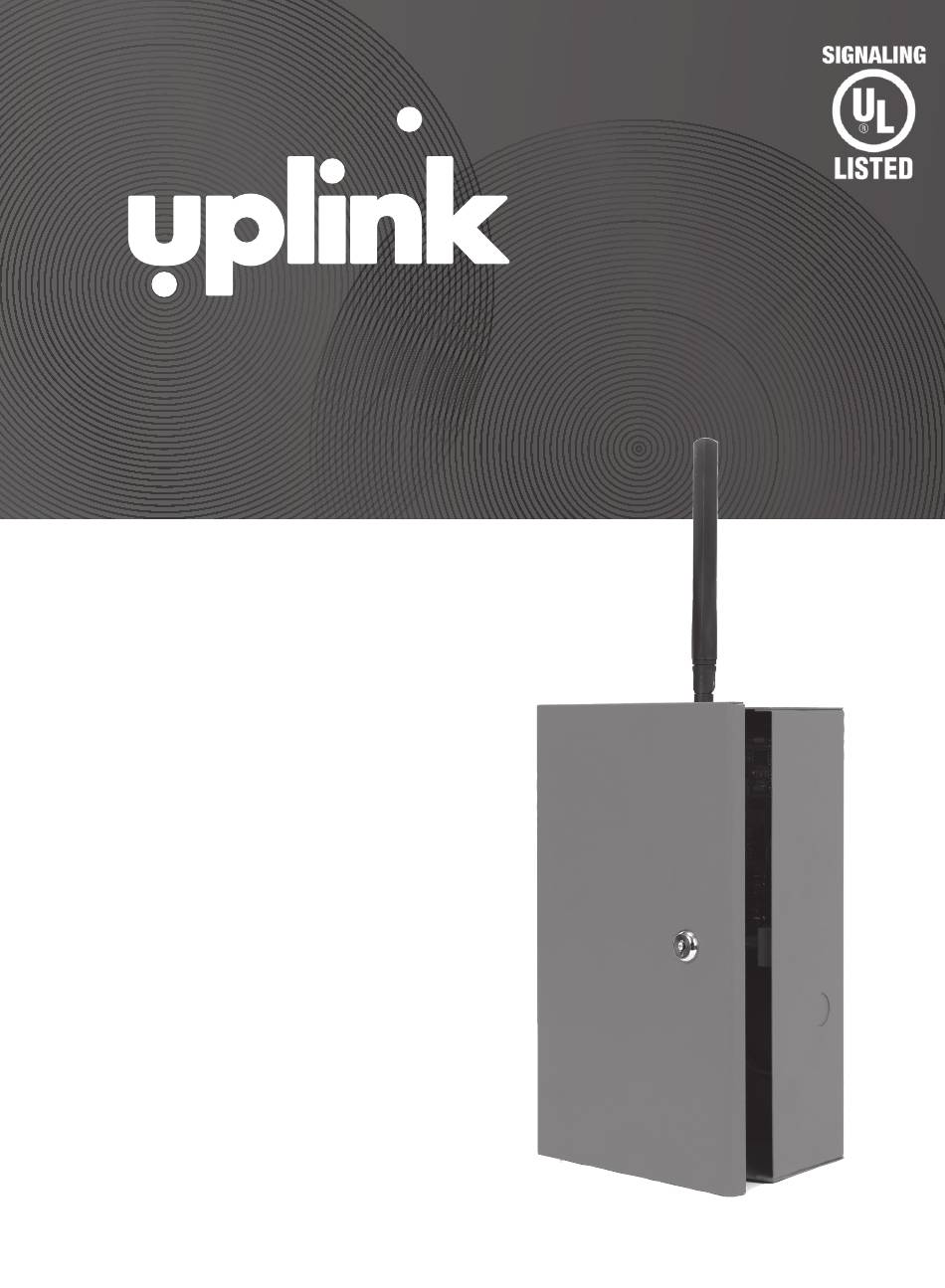

4G CELLULAR ALARM COMMUNICATOR
WIRELESS COMMERCIAL FIRE APPLICATION
FOR SECONDARY COMMUNICATIONS
INSTALLATION
USER'S GUIDE
PRODUCT ID # 202132UP455013
®
4550-CF
&
